Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

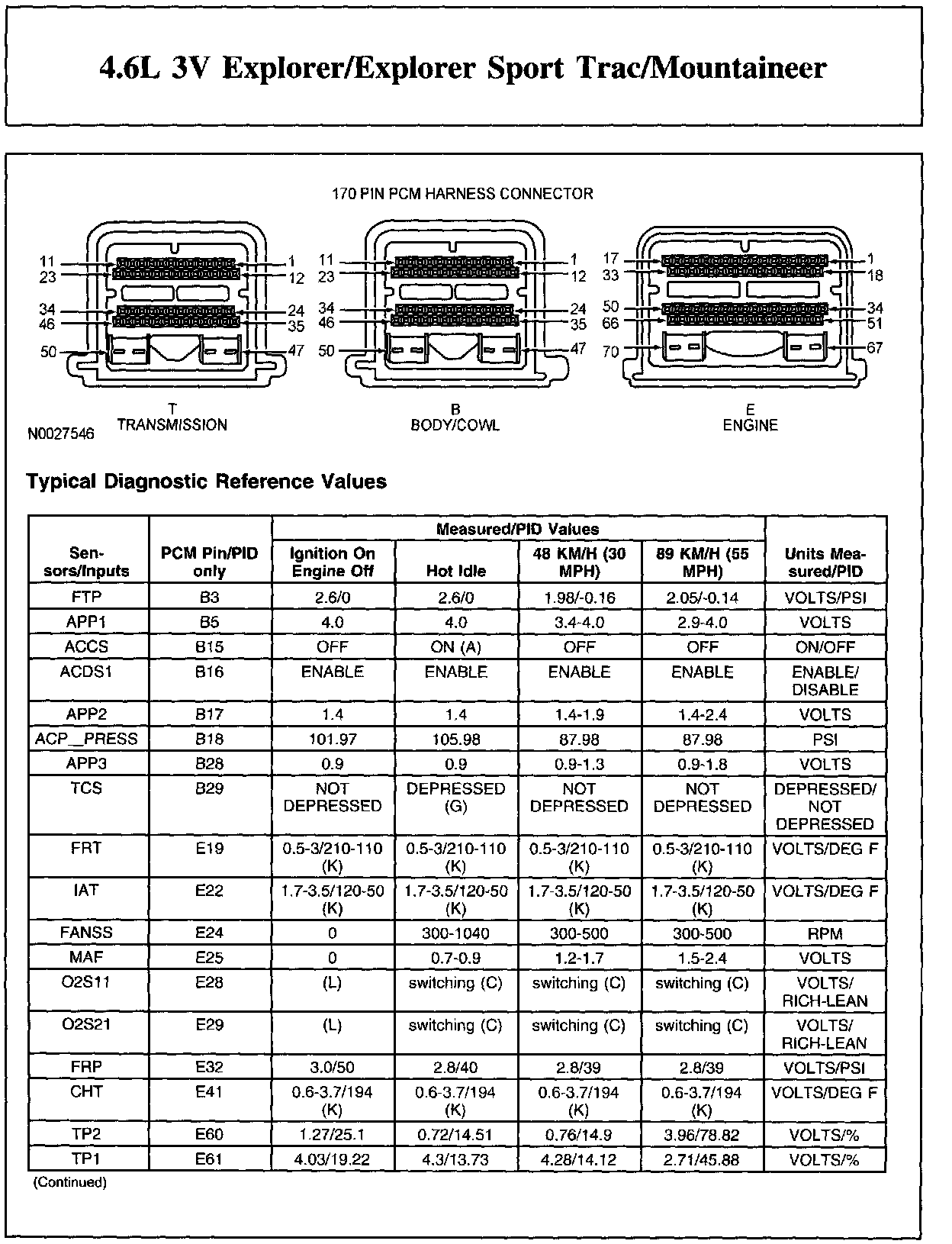

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 1):





4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 2):

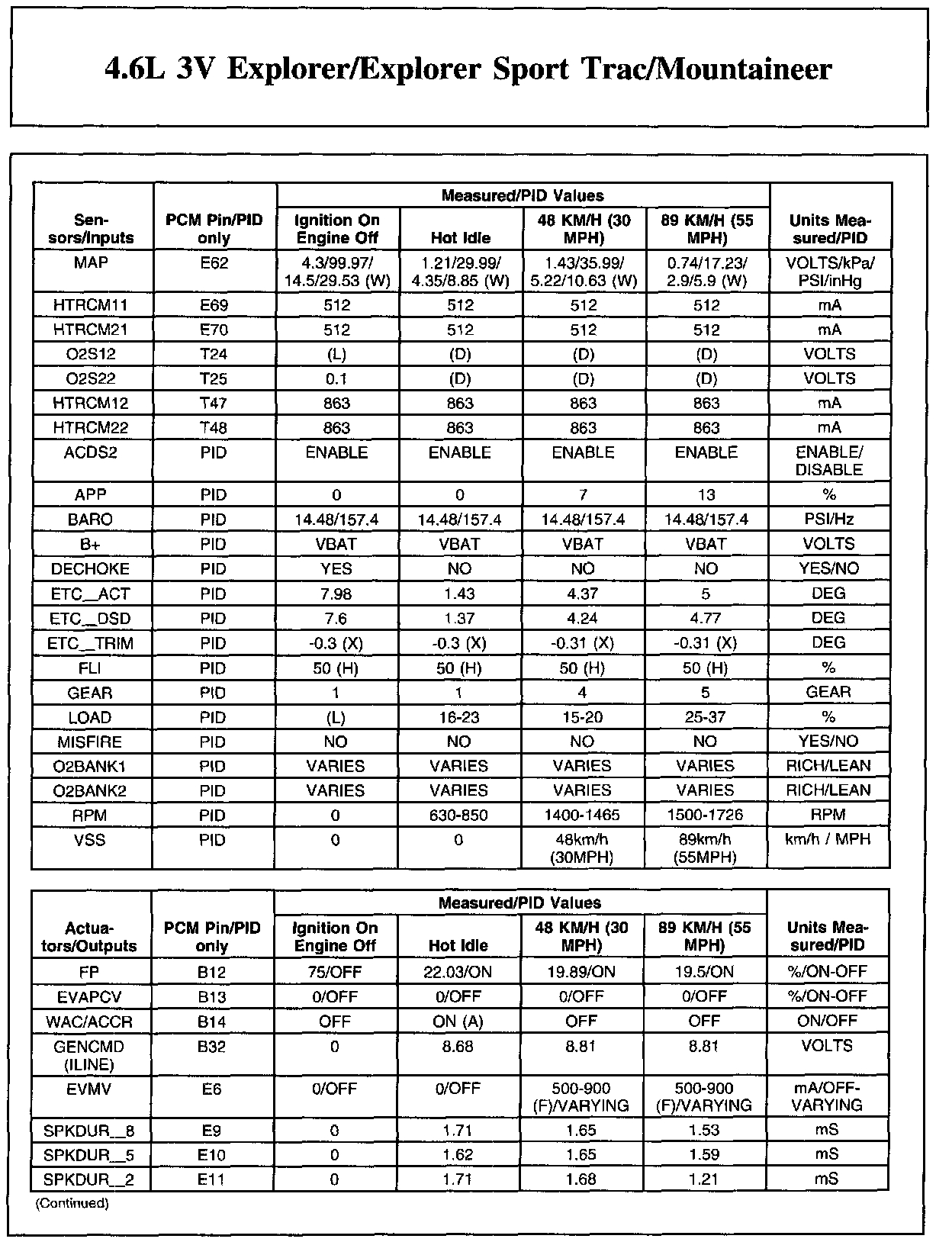

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 3):

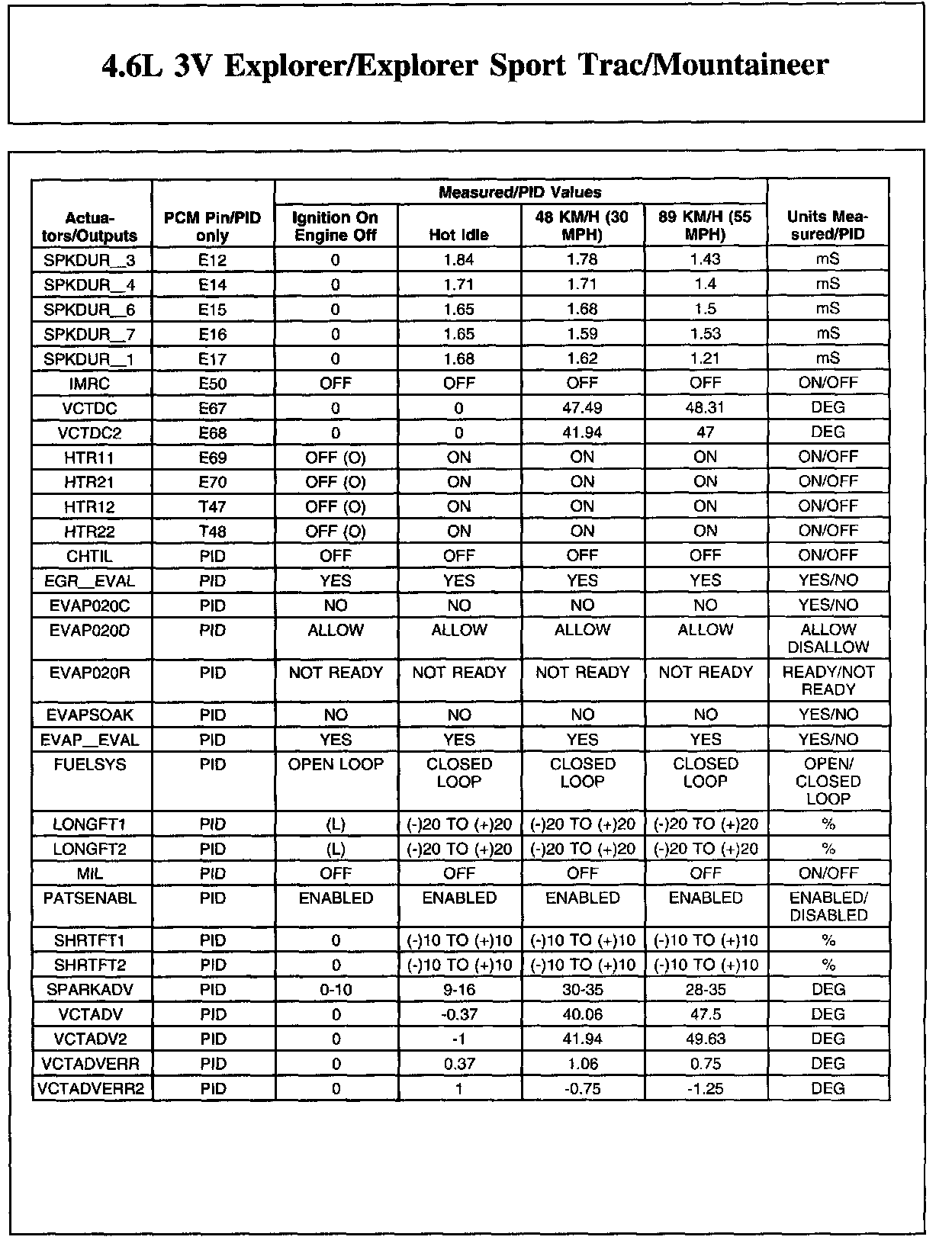

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 4):
