Solenoid Body Assembly: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

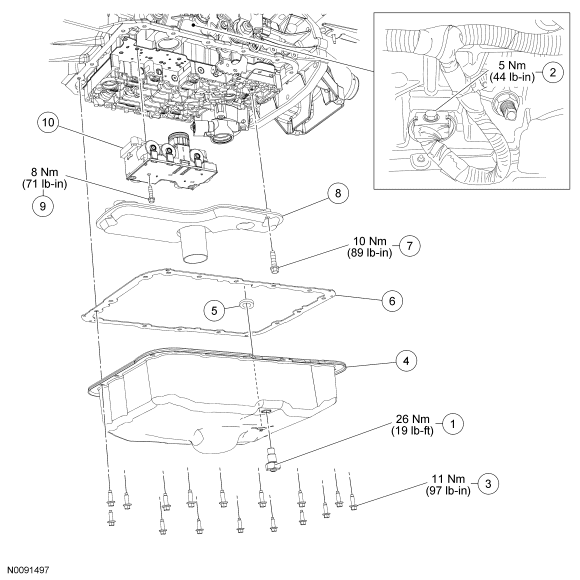

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K667 | Transmission fluid pan drain plug |
| 2 | - | Transmission vehicle harness connector screw |
| 3 | W500213 | Transmission fluid pan-to-case screw (16 required) |
| 4 | 7A194 | Transmission fluid pan |
| 5 | 7L027 | Transmission fluid pan magnet |
| 6 | 7A191 | Transmission fluid pan gasket |
| 7 | W500106 | Transmission fluid filter screw (2 required) |
| 8 | 7A098 | Transmission fluid filter |
| 9 | - | Transmission control solenoid body screw (8 required) |
| 10 | 7G391 | Transmission control solenoid body |
