Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000909Courtesy of FORD MOTOR CO.
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

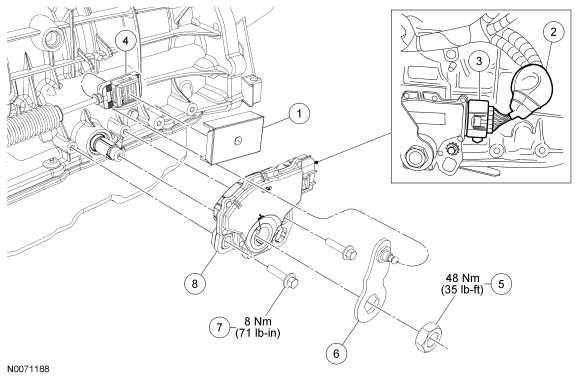

Fig 1: Digital Transmission Range (TR) Sensor Components With Torque Specifications
GF0045136Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever cable shield (part of 7E395)
2 - Transmission Range (TR) sensor connector boot
3 - TR sensor connector
4 7E395 Selector lever cable
5 W703001 Manual control lever nut
6 7A256 Manual control lever
7 W500106 TR sensor screw and washer (2 required)
8 7F293 TR sensor
