Homelink Module Connector - C928
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Homelink Module Connector - C928

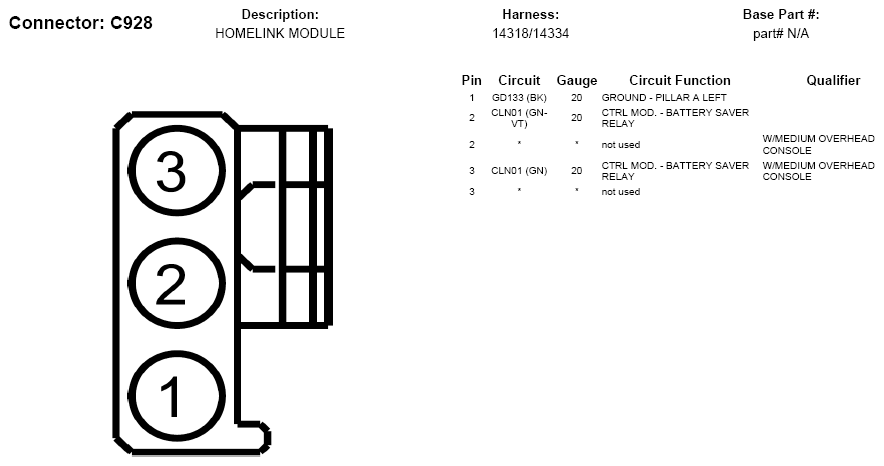

Fig 1: Homelink Module Connector End View (C928)
Courtesy of FORD MOTOR CO.
