Audio Control Switch Connector - C2208

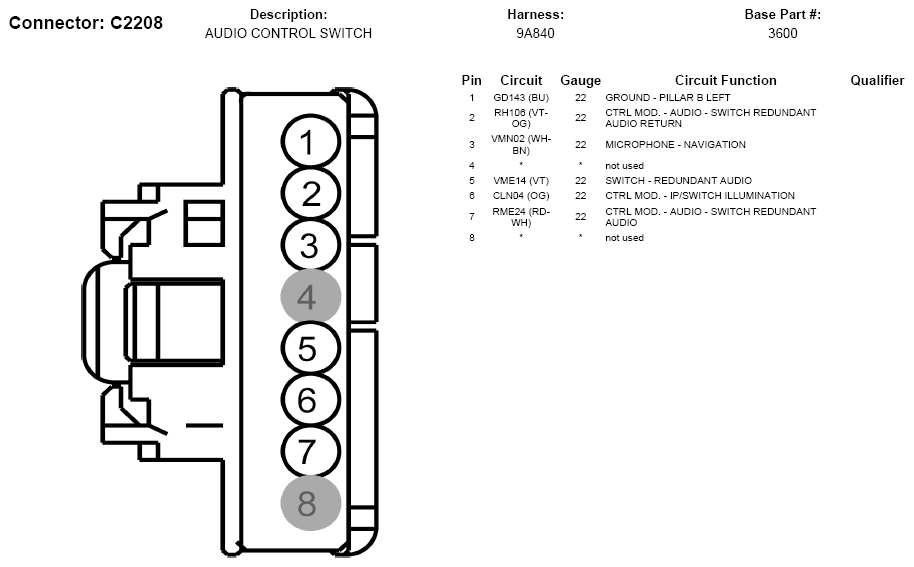

Fig 1: Audio Control Switch Connector End View (C2208)
Courtesy of FORD MOTOR CO.
