Overhaul

Differential Case and Ring Gear - Conventional













Disassembly

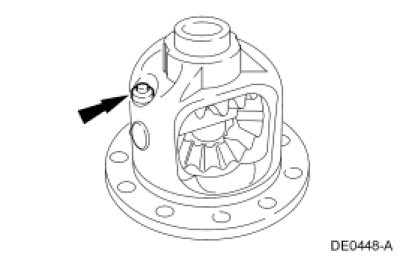

1. Remove and discard the differential pinion shaft lock bolt.





2. Remove the differential pinion shaft.

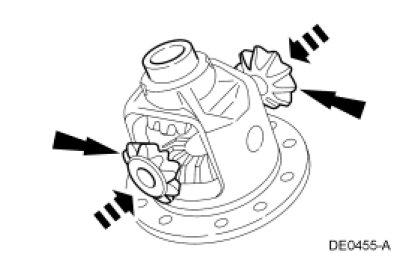

3. Rotate and remove the 2 differential pinion gears and 2 differential pinion gear thrust washers.





4. Remove the 2 differential side gears and the 2 differential side gear thrust washers.





Assembly

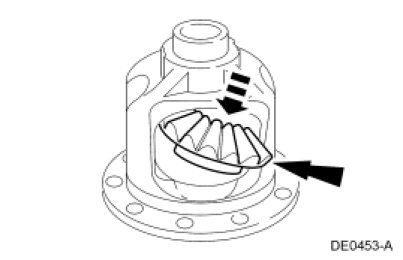

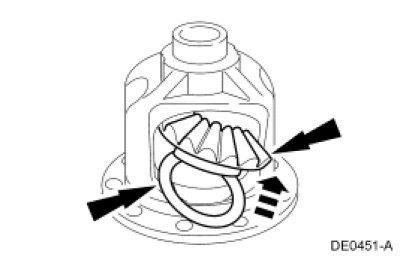

1. NOTE: Lubricate the differential side gears and differential side gear thrust washers with synthetic rear axle lubricant.

Install the 2 differential side gears and the 2 differential side gear thrust washers.

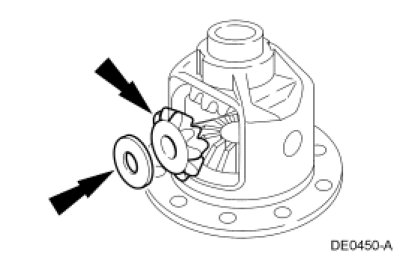

2. NOTE: Lubricate the differential pinion gears and the differential pinion gear thrust washers with synthetic rear axle lubricant.

Install and rotate the 2 differential pinion gears and the 2 differential pinion gear thrust washers.

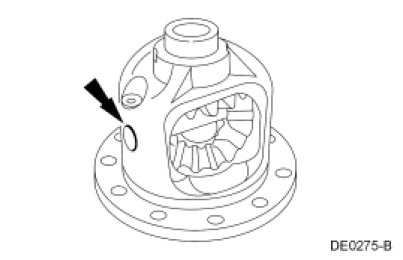

3. NOTE: Align the hole in the differential pinion shaft with the hole in the differential case.

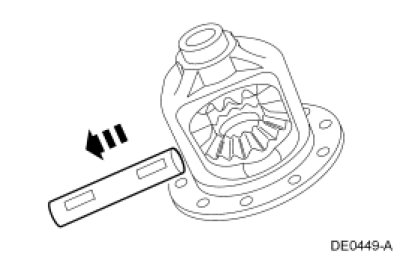

Install the differential pinion shaft.





4. Install a new differential pinion shaft lock bolt.

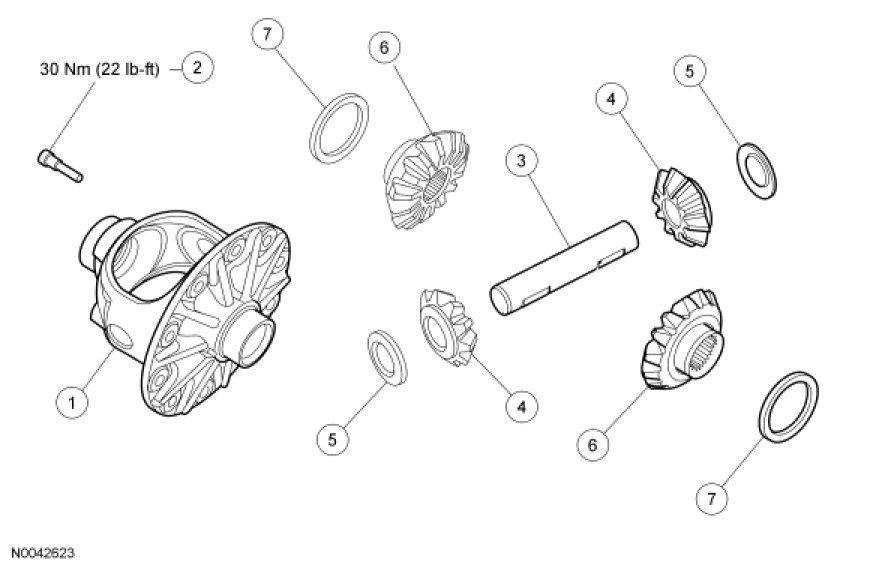

- Tighten to 30 Nm (22 lb-ft).
