Lighting and Horns: Testing and Inspection




Diagnostic Trouble Code (DTC) Chart

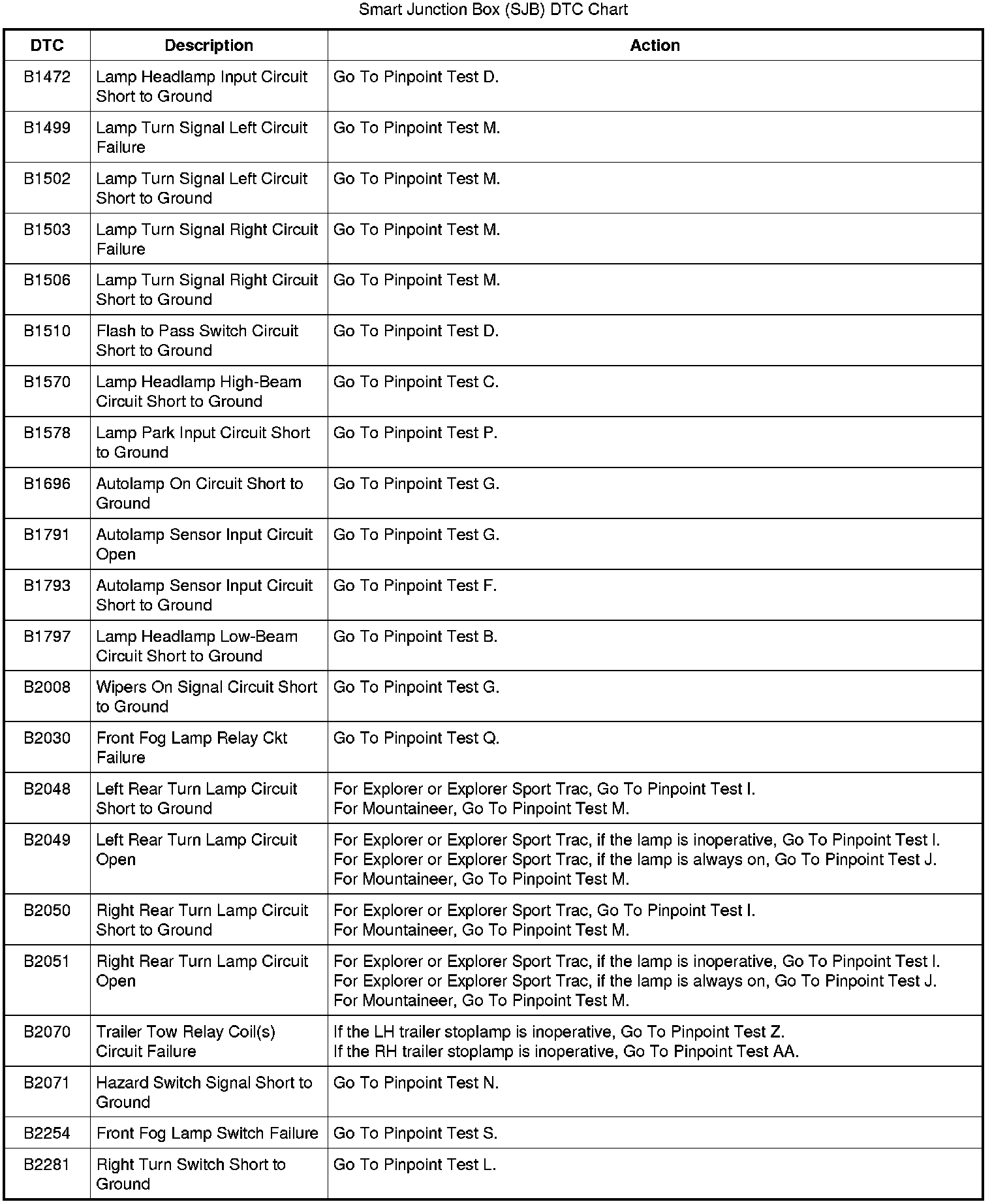

B1472-B2281:

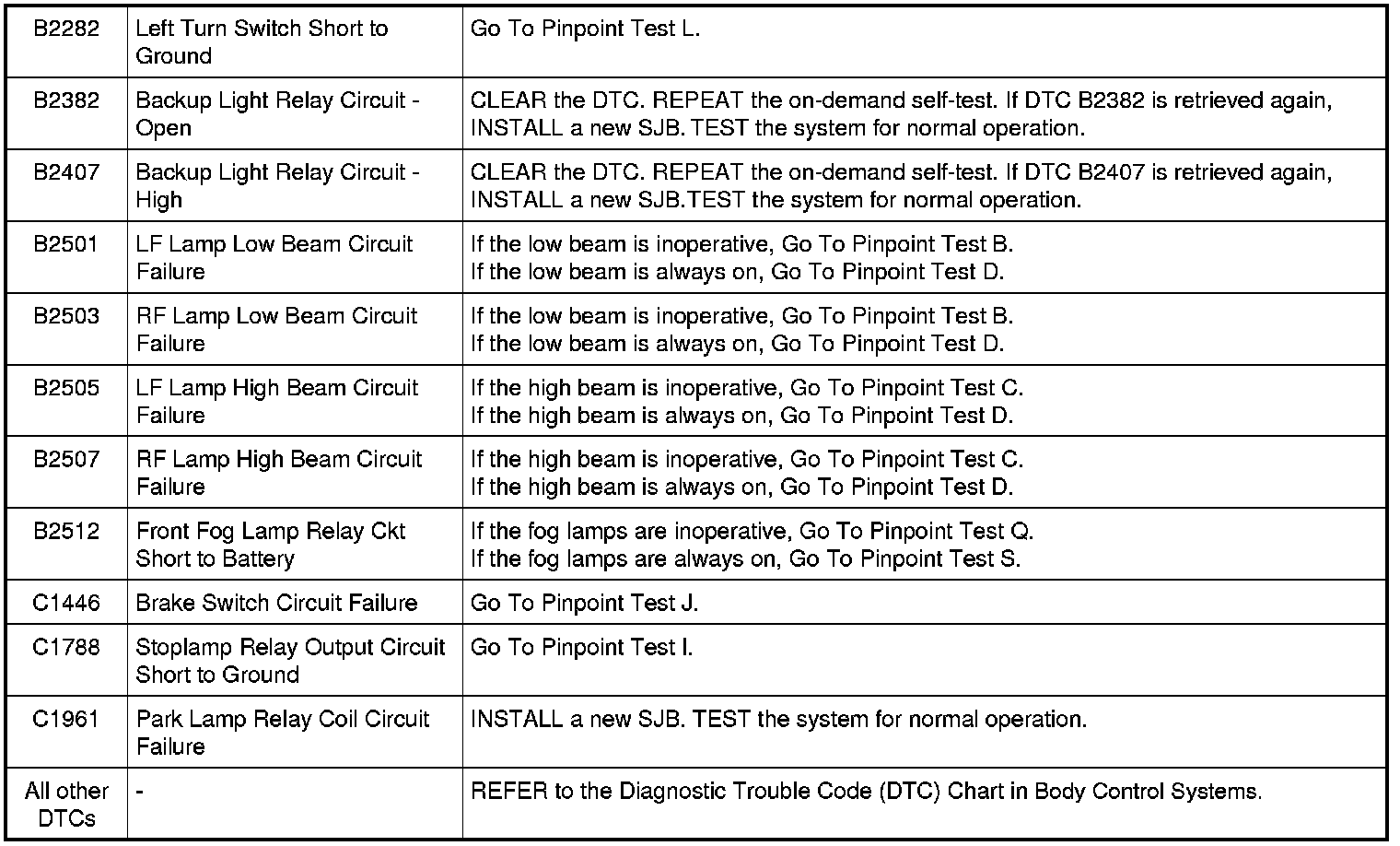

B2282-B2512 / C1446-C1961:
