Plenum Chamber

Plenum Chamber

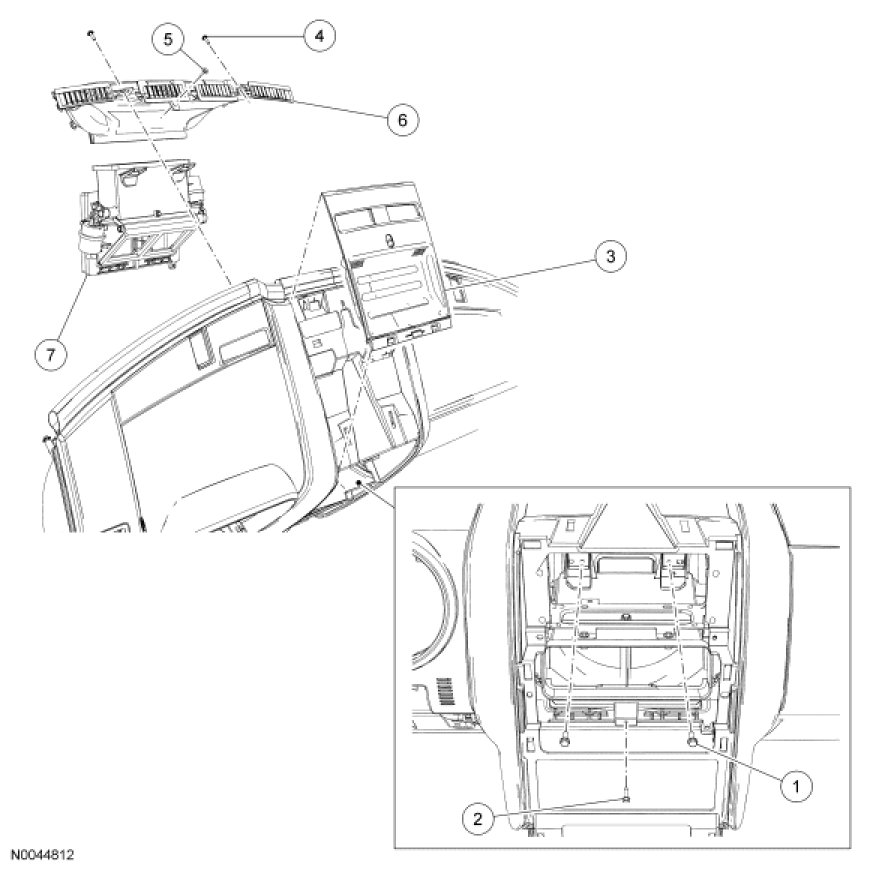

Removal and Installation

1. Remove the instrument panel. Service and Repair

2. Remove the Audio Control Module (ACM).

3. Remove the 3 plenum chamber screws.

4. Remove the instrument panel upper finish panel.

5. Remove the 3 defroster duct screws.

6. Remove the defroster duct.

7. Remove the plenum chamber.

8. To install, reverse the removal procedure.
