Driver Seat Module (DSM) DTC Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Seat Module (DSM) DTC Chart
Seats
DTC Charts

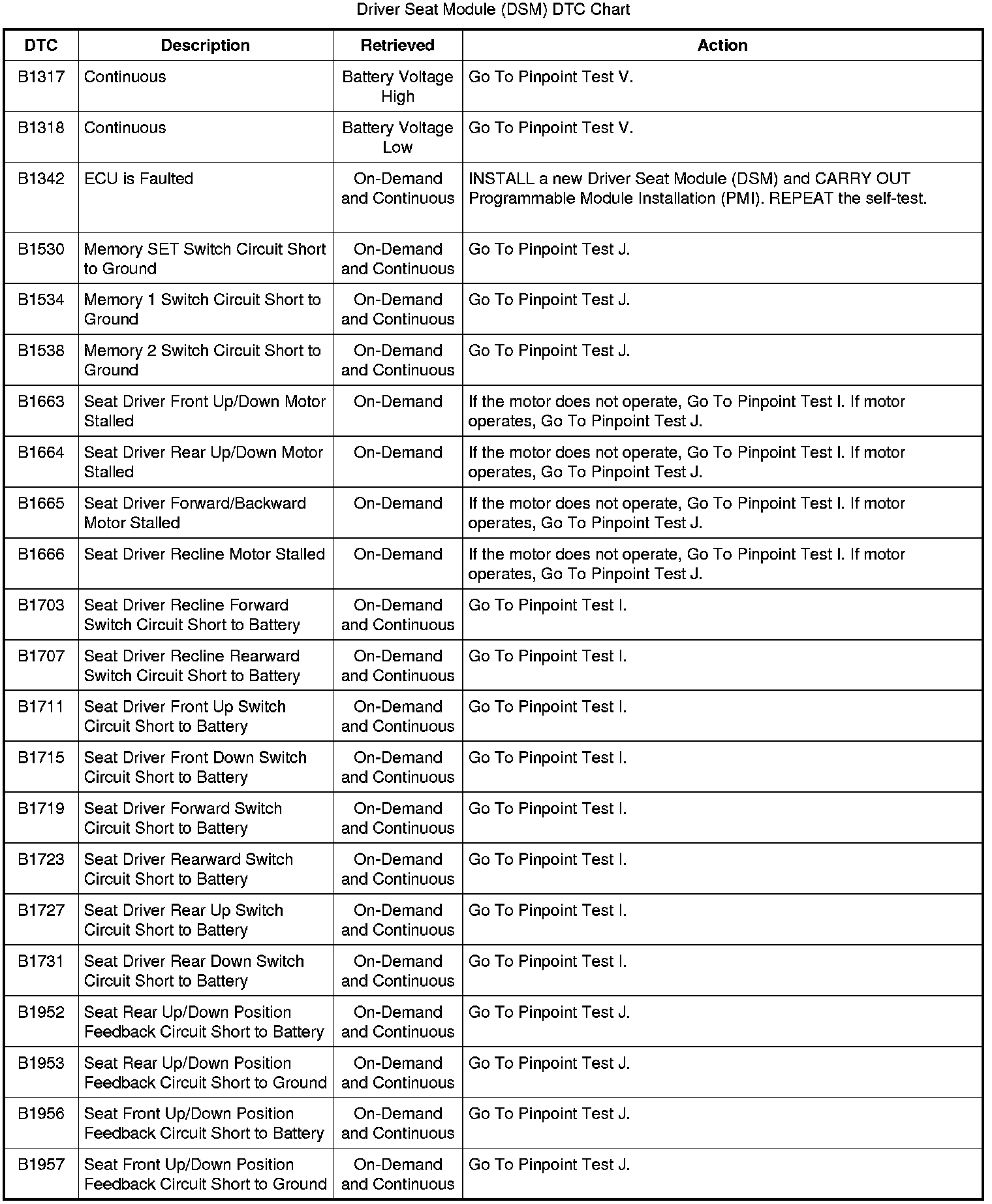

B1317-B1957:

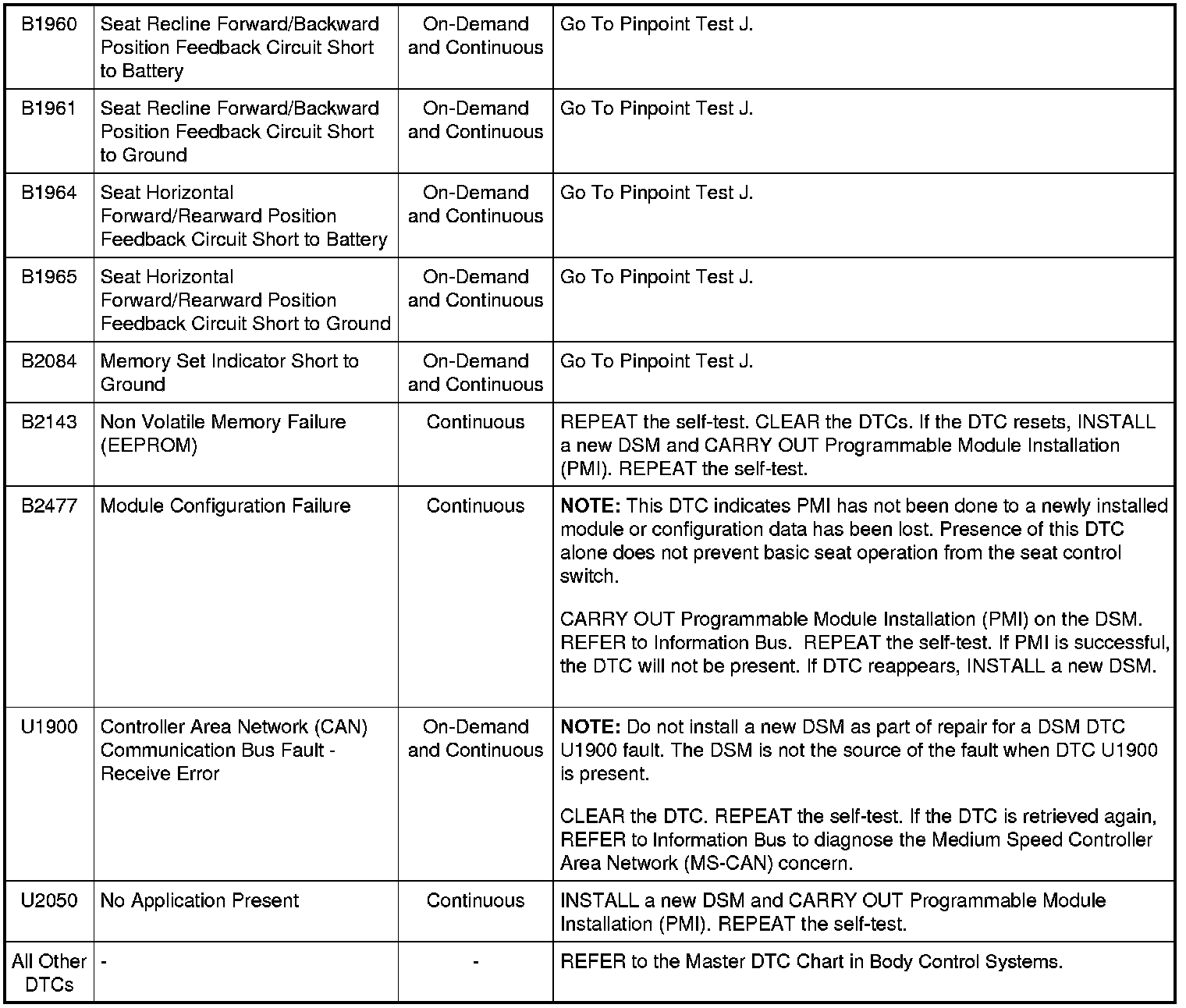

B1960-B2477 / U1900-U2050:
