Exhaust Manifold

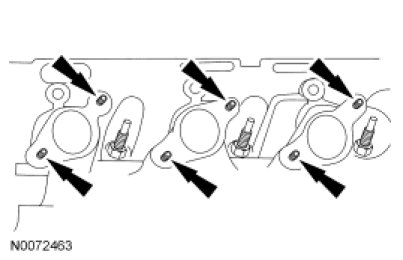

Install 6 new RH exhaust manifold studs.
Tighten to 12 Nm (106 lb-in).





Install a new gasket, the RH exhaust manifold and the 6 new nuts.
Tighten to 22 Nm (16 lb-ft).

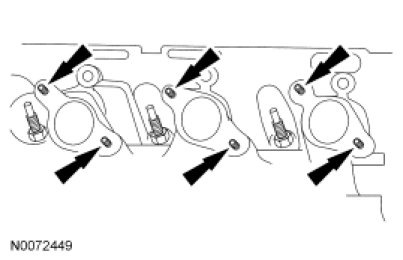

Install 6 new LH exhaust manifold studs.
Tighten to 12 Nm (106 lb-in).





Install a new gasket, the LH exhaust manifold and the 6 new nuts.
Tighten to 22 Nm (16 lb-ft)
