Auxiliary Step / Running Board Module: Service and Repair

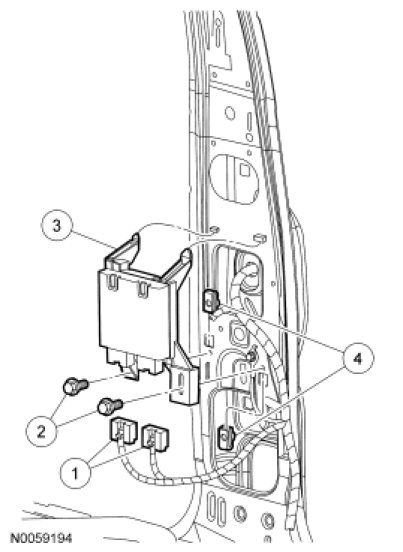

Power Running Board (PRB) Module

Removal and Installation

1. Remove the LH B-pillar trim panel.

2. Disconnect the Power Running Board (PRB) module electrical connectors.

3. Remove the 2 bolts and the PRB module assembly.

4. To install, reverse the removal procedure.
