Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM) - Expedition

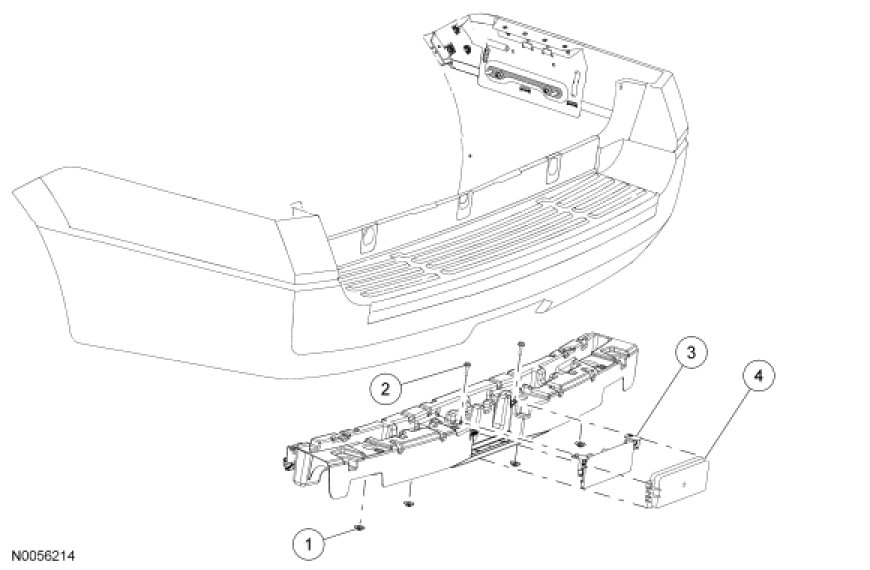

Removal and Installation

1. Disconnect the Parking Aid Module (PAM) sub-harness from the body harness.

2. Remove the rear bumper cover.

3. Remove the 4 insulator-to-bumper cover nuts and the insulator from the bumper cover.

4. Disconnect the sub-harness from the PAM.

5. Remove the 2 PAM bracket bolts.

6. Remove the PAM bracket assembly.

7. Release the module tabs from the bracket and remove the module from the bracket.

8. To install, reverse the removal procedure.
