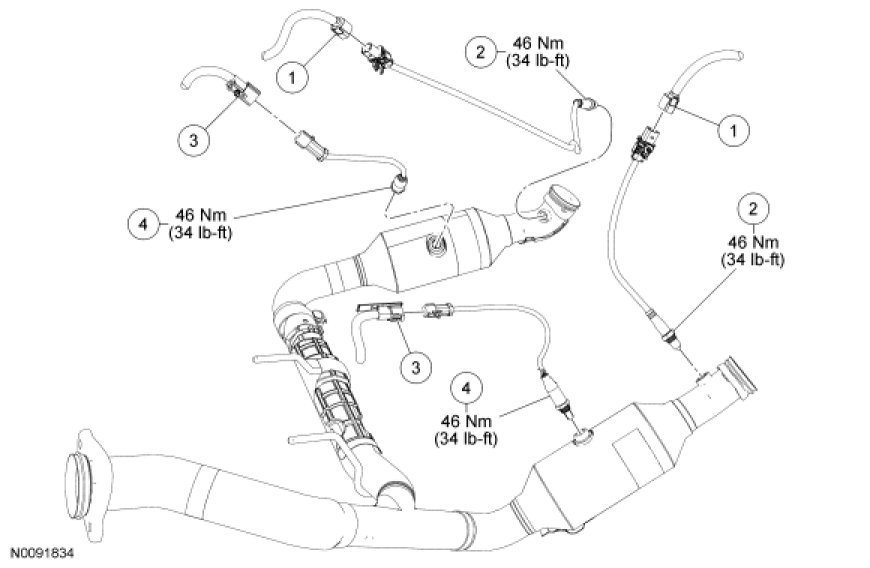

Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor - Exploded View

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

1. For additional information, refer to the procedures.
