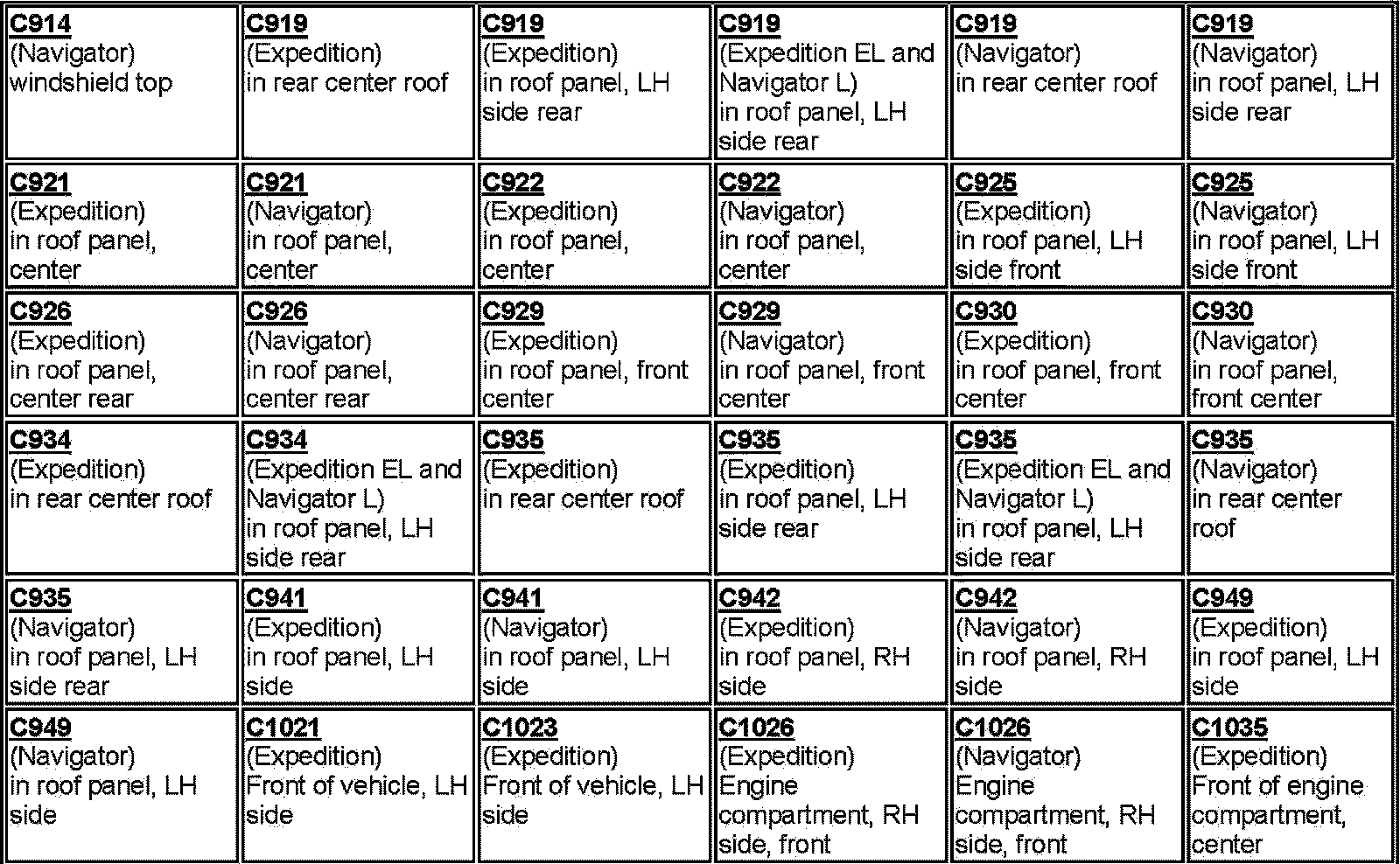

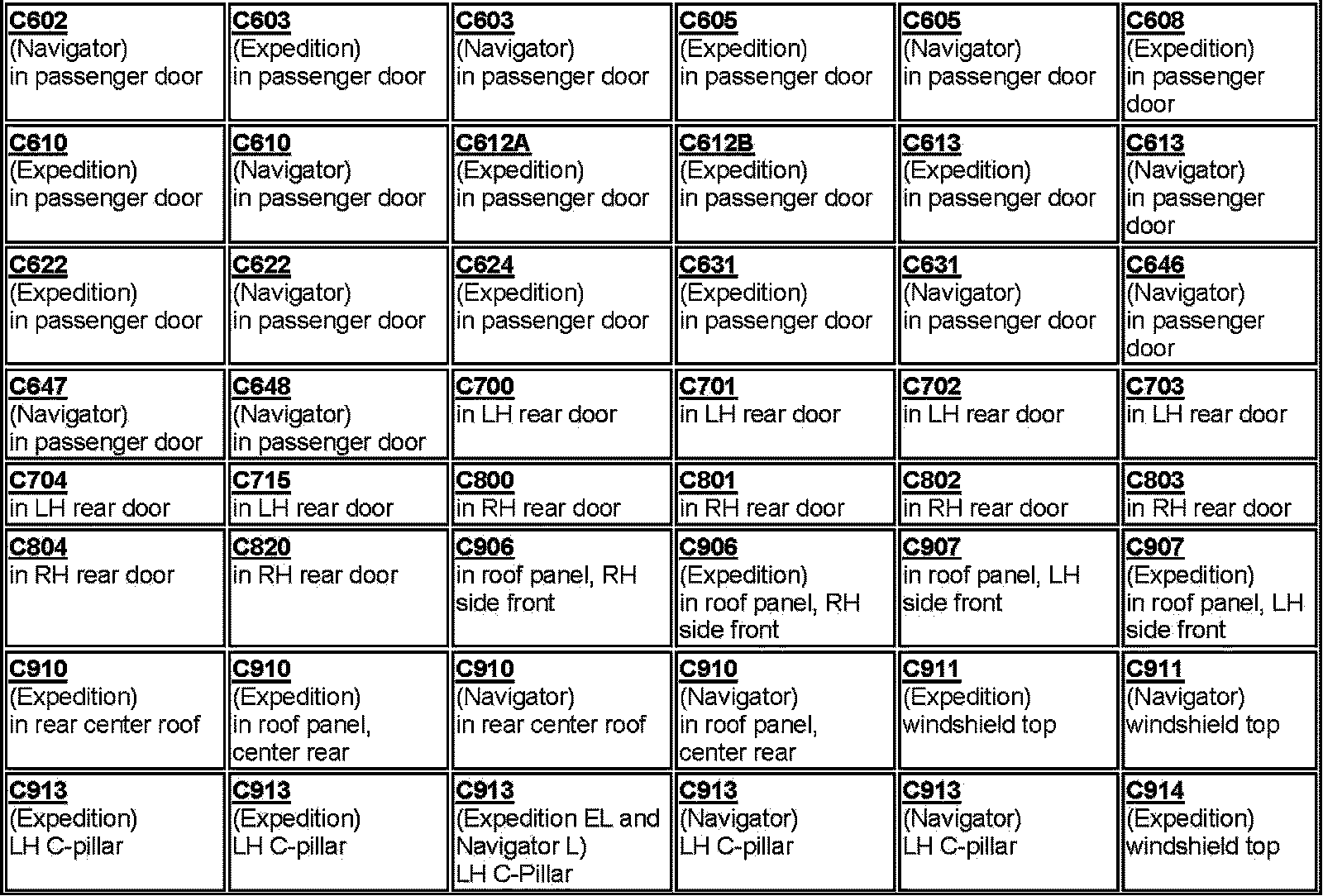

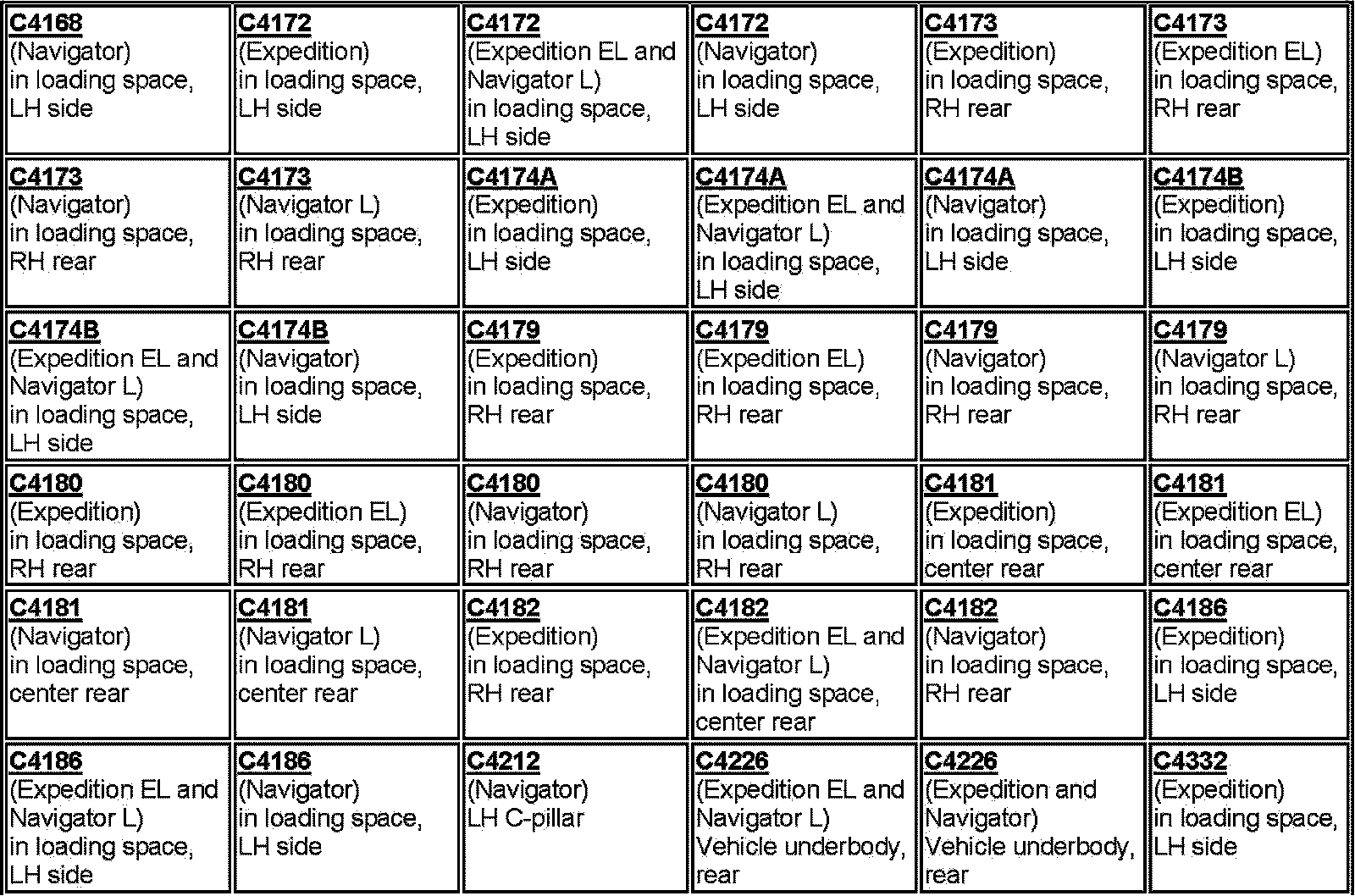

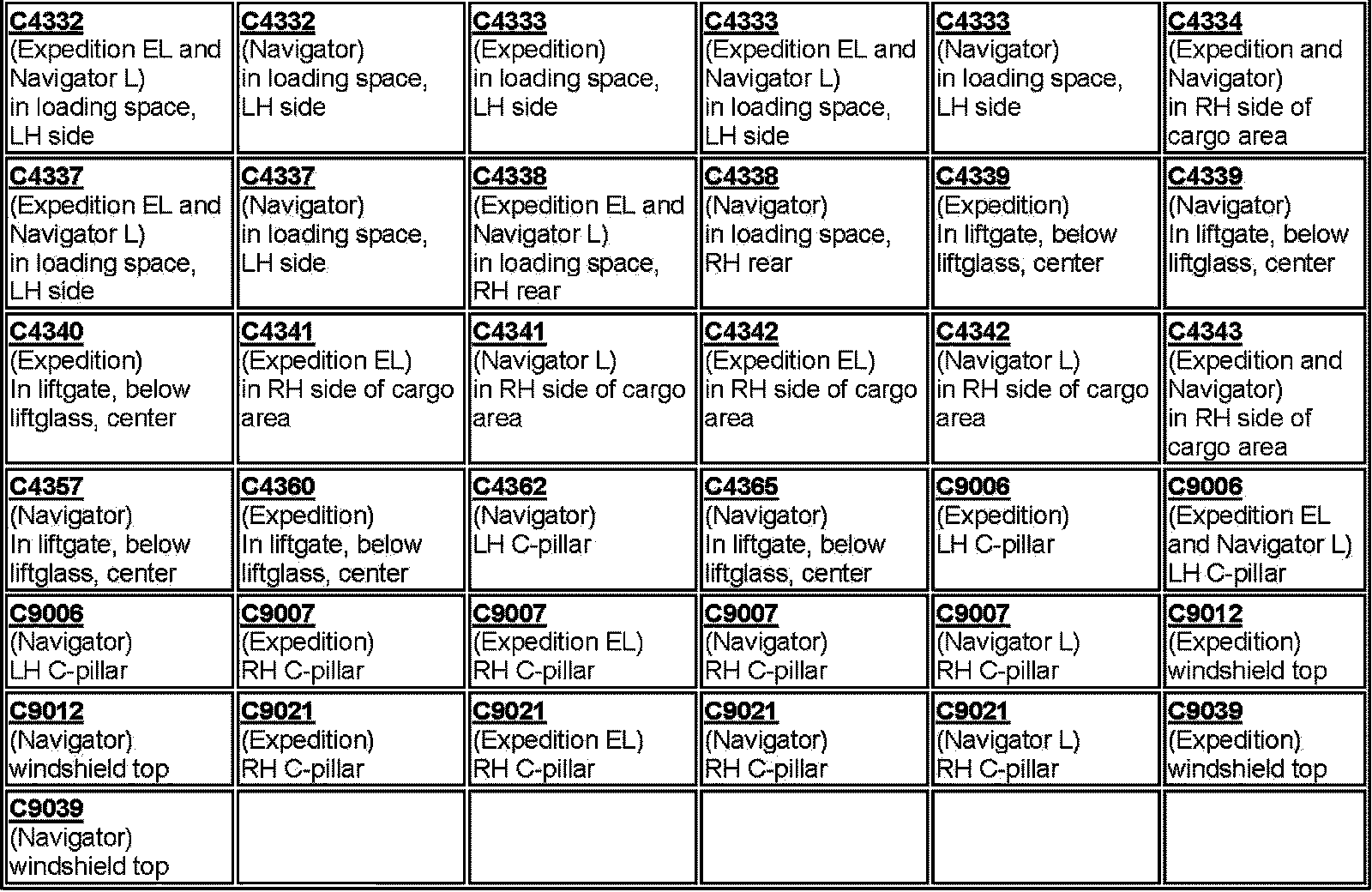

Connector Locations

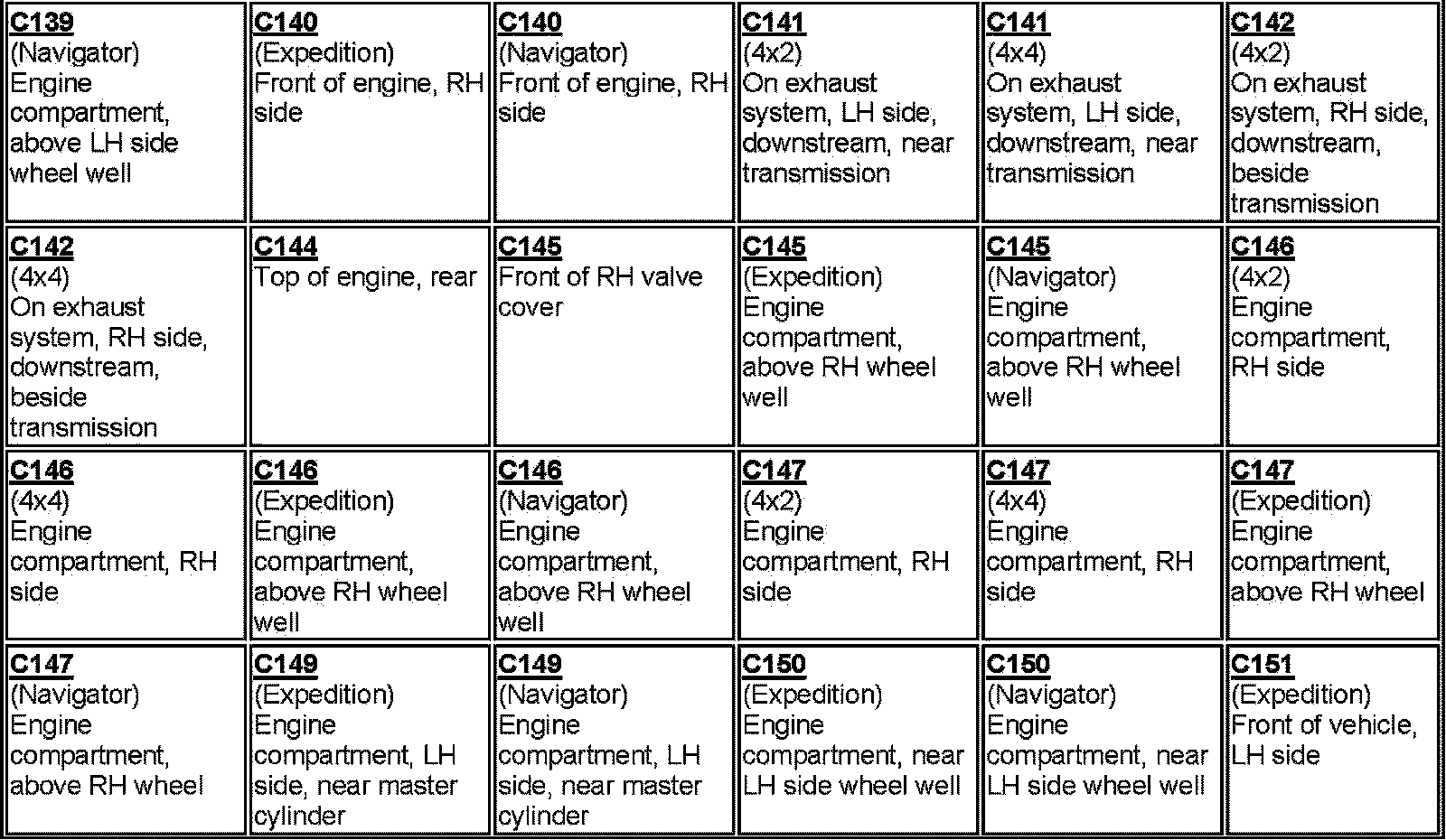

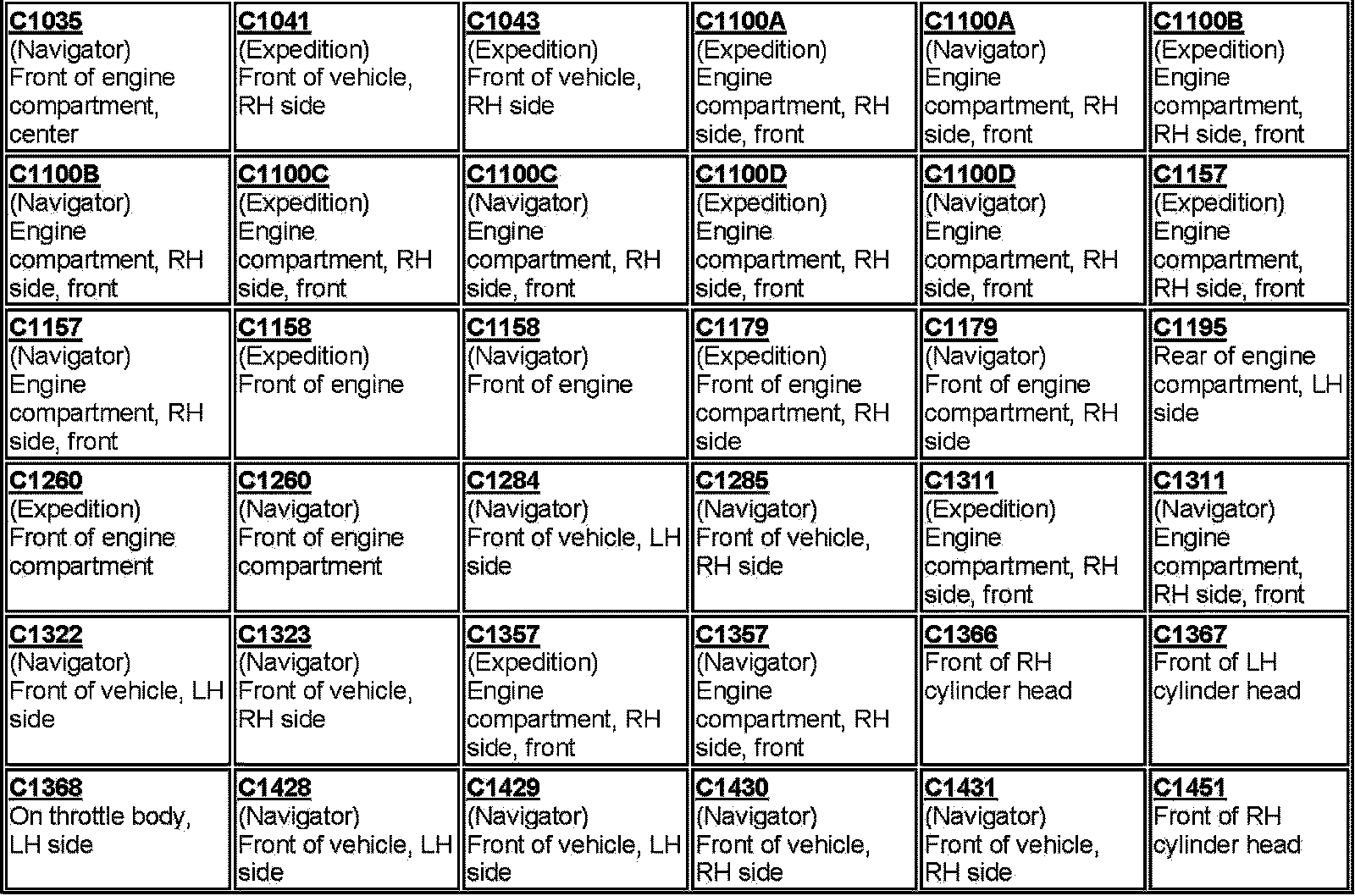

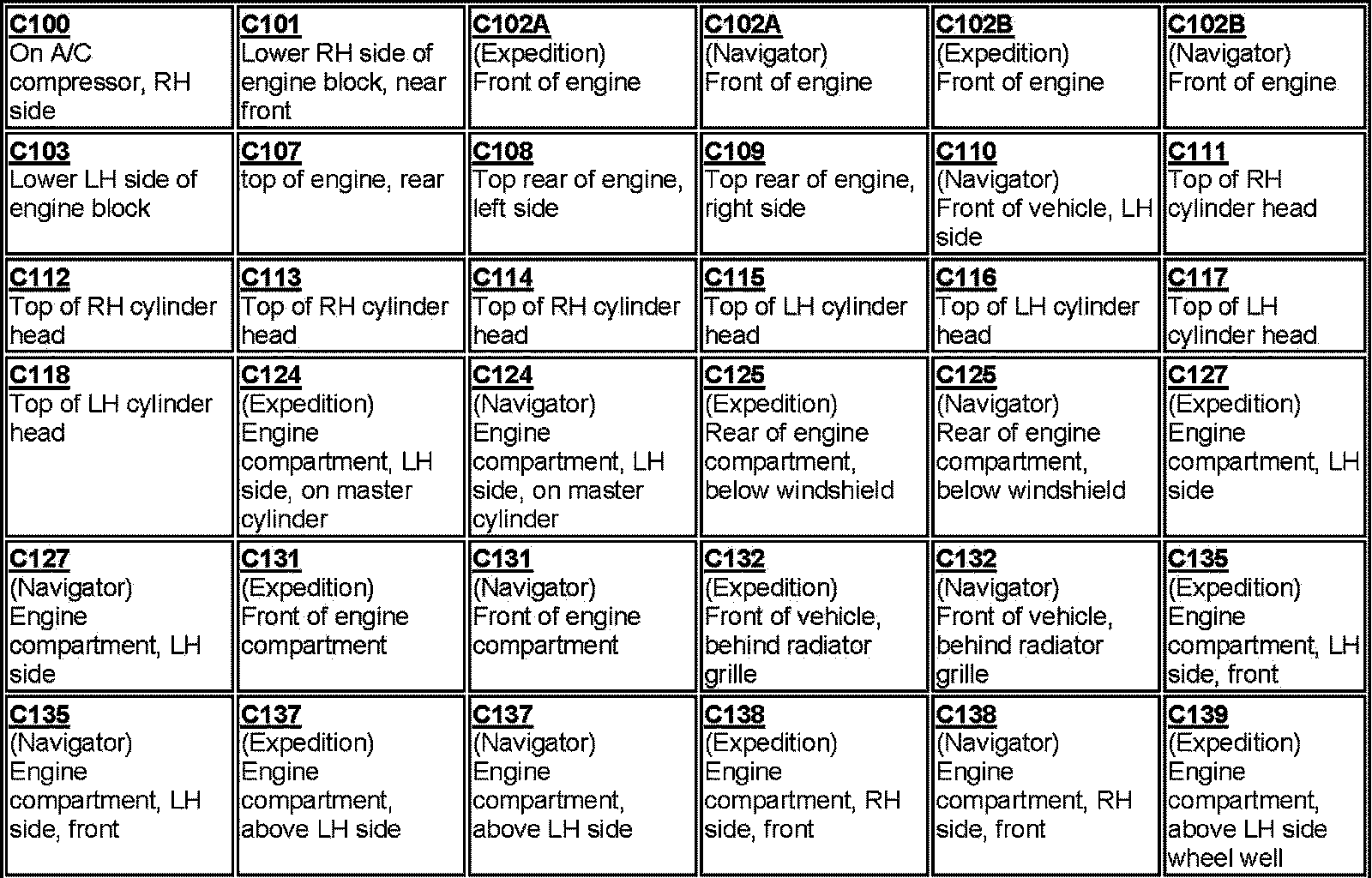

C100-C139:

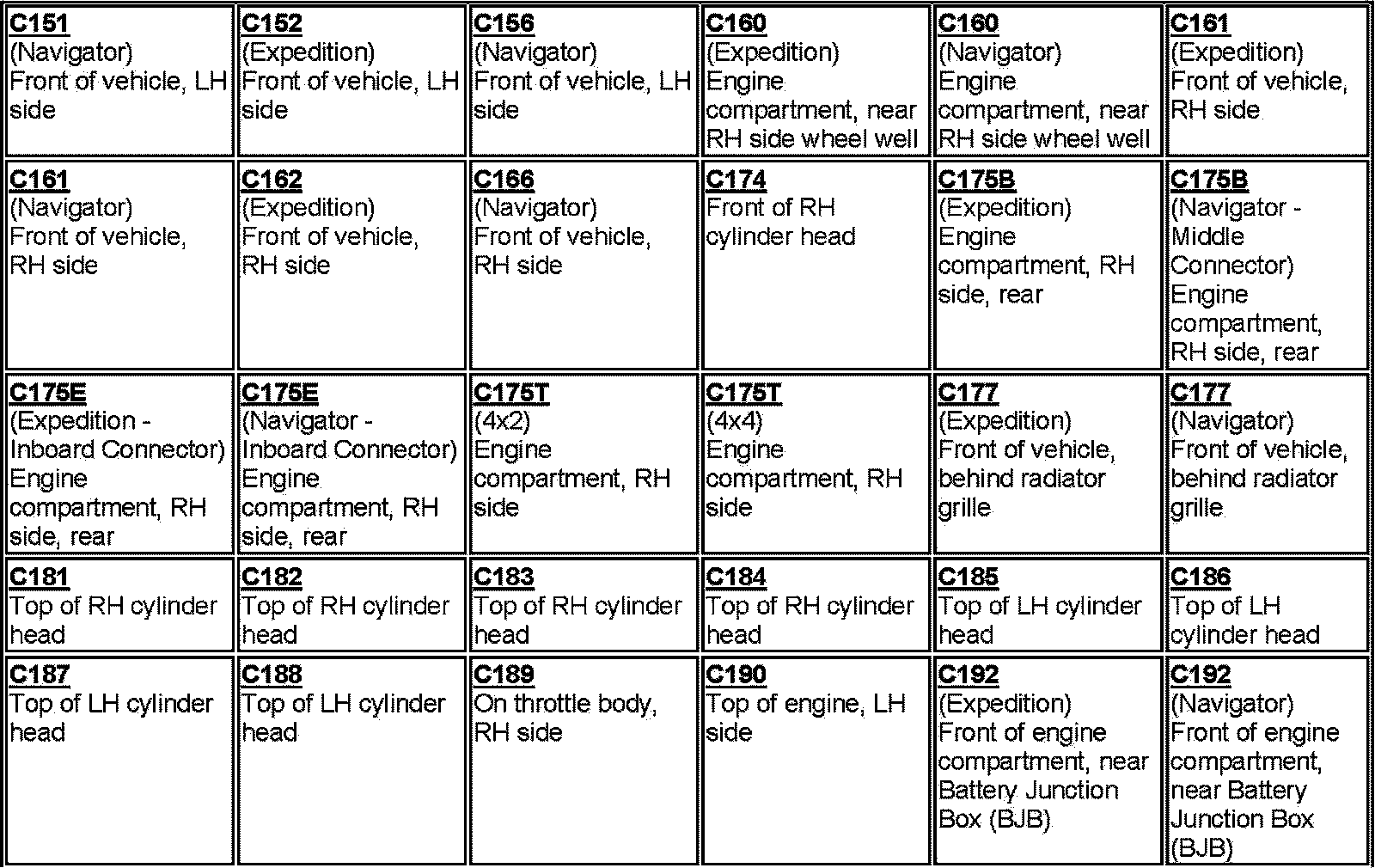

C139-C151:





C151-C192:

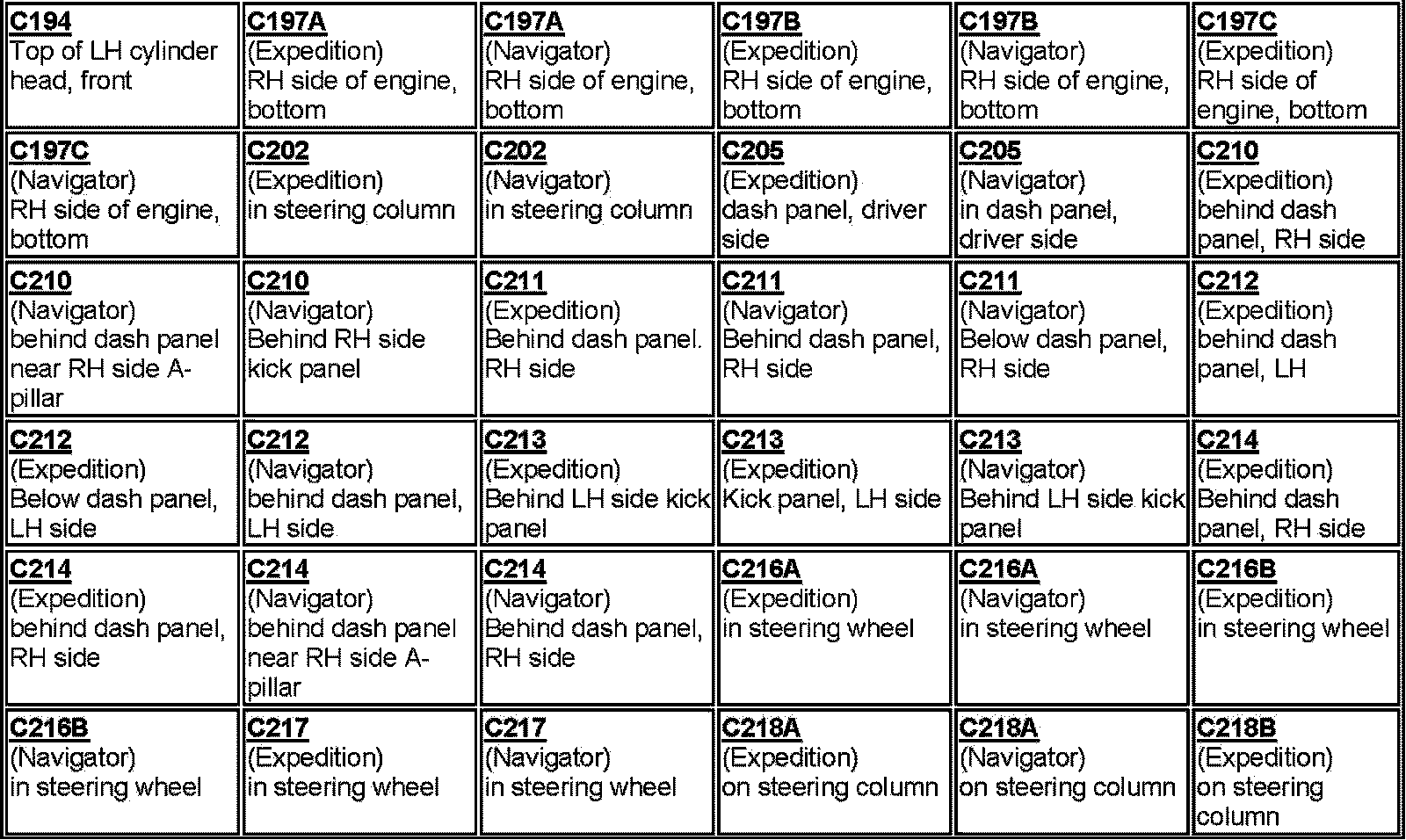

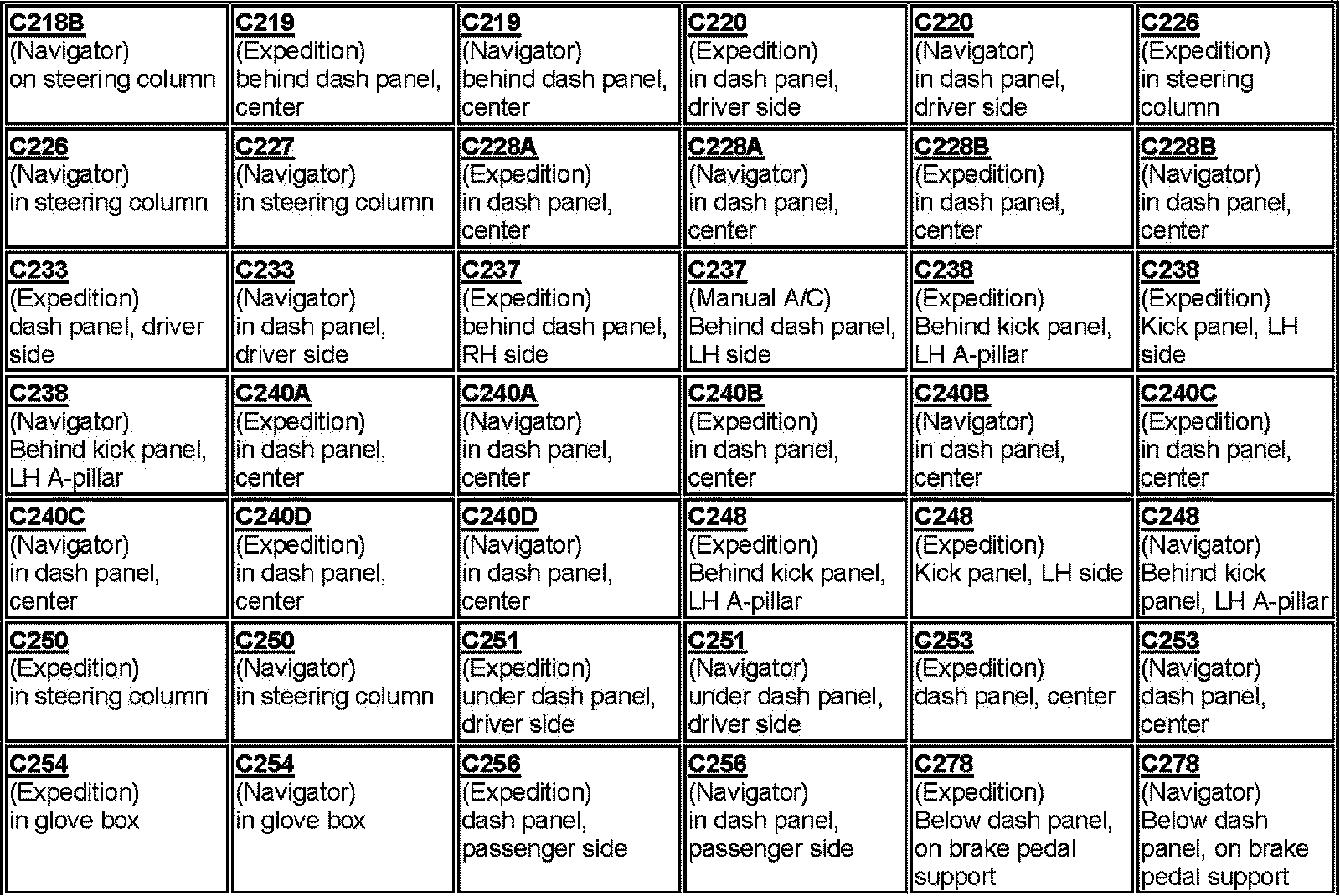

C194-C218B:





C218B-C278:

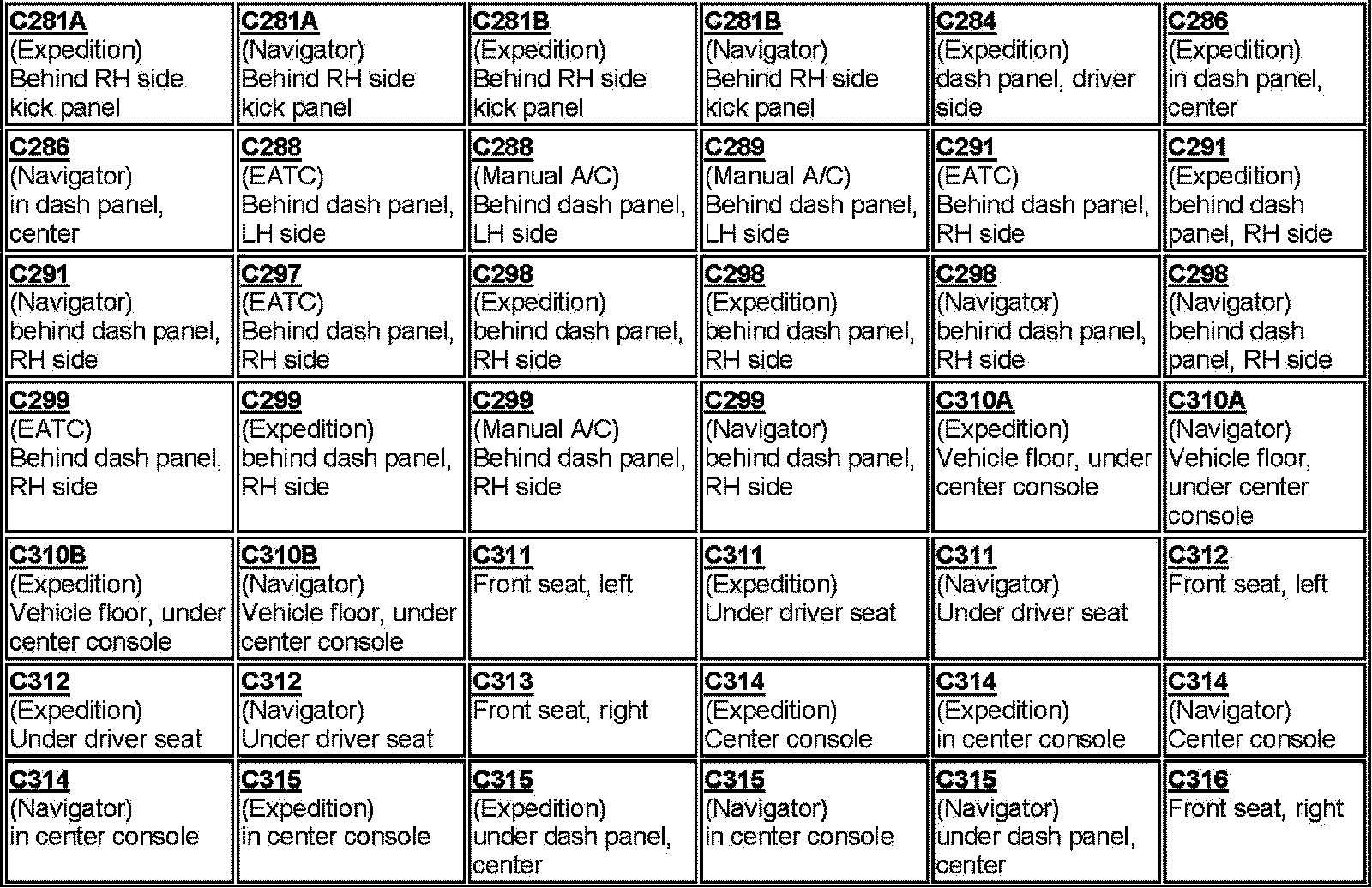

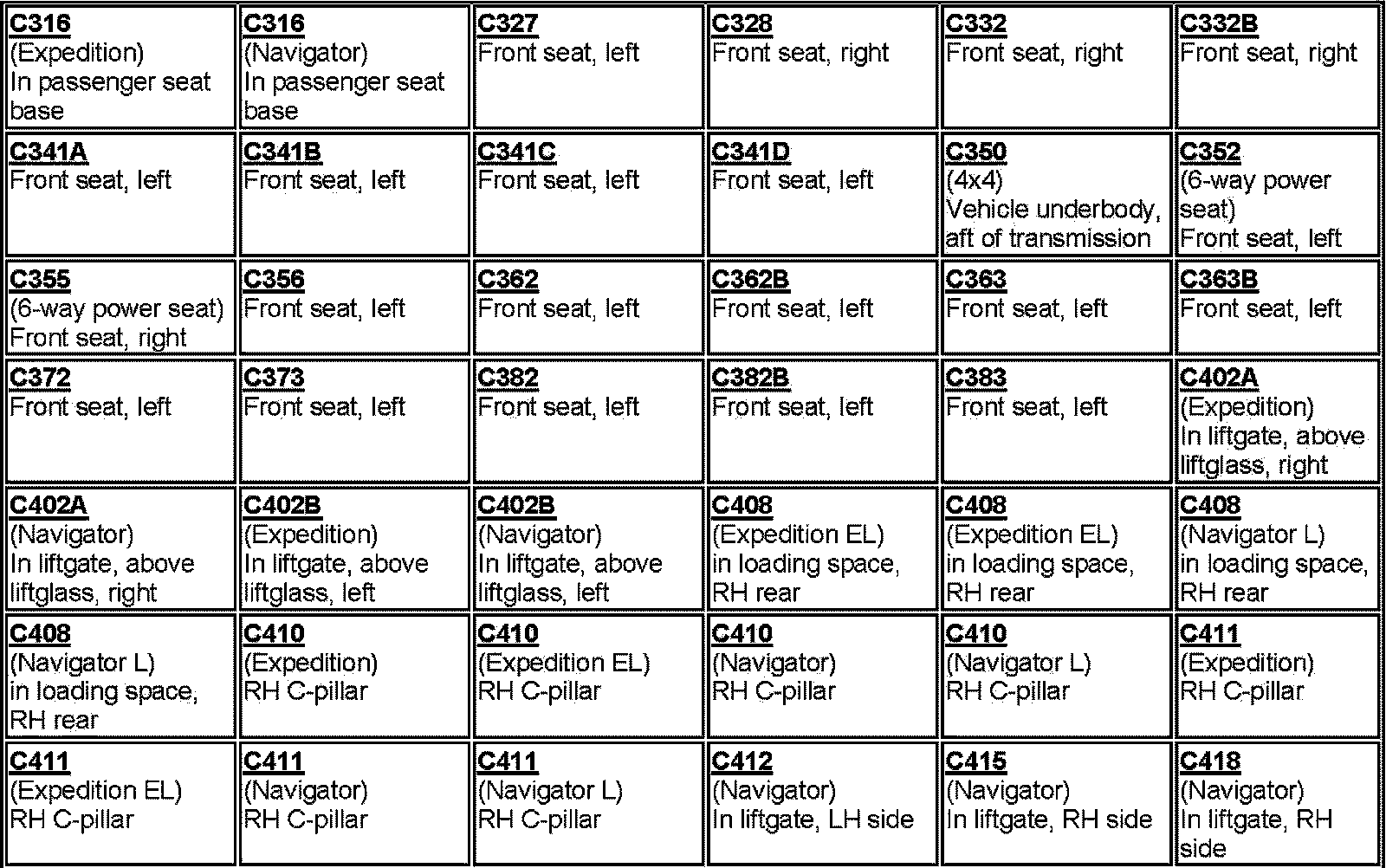

C281A-C316:





C316-C418:

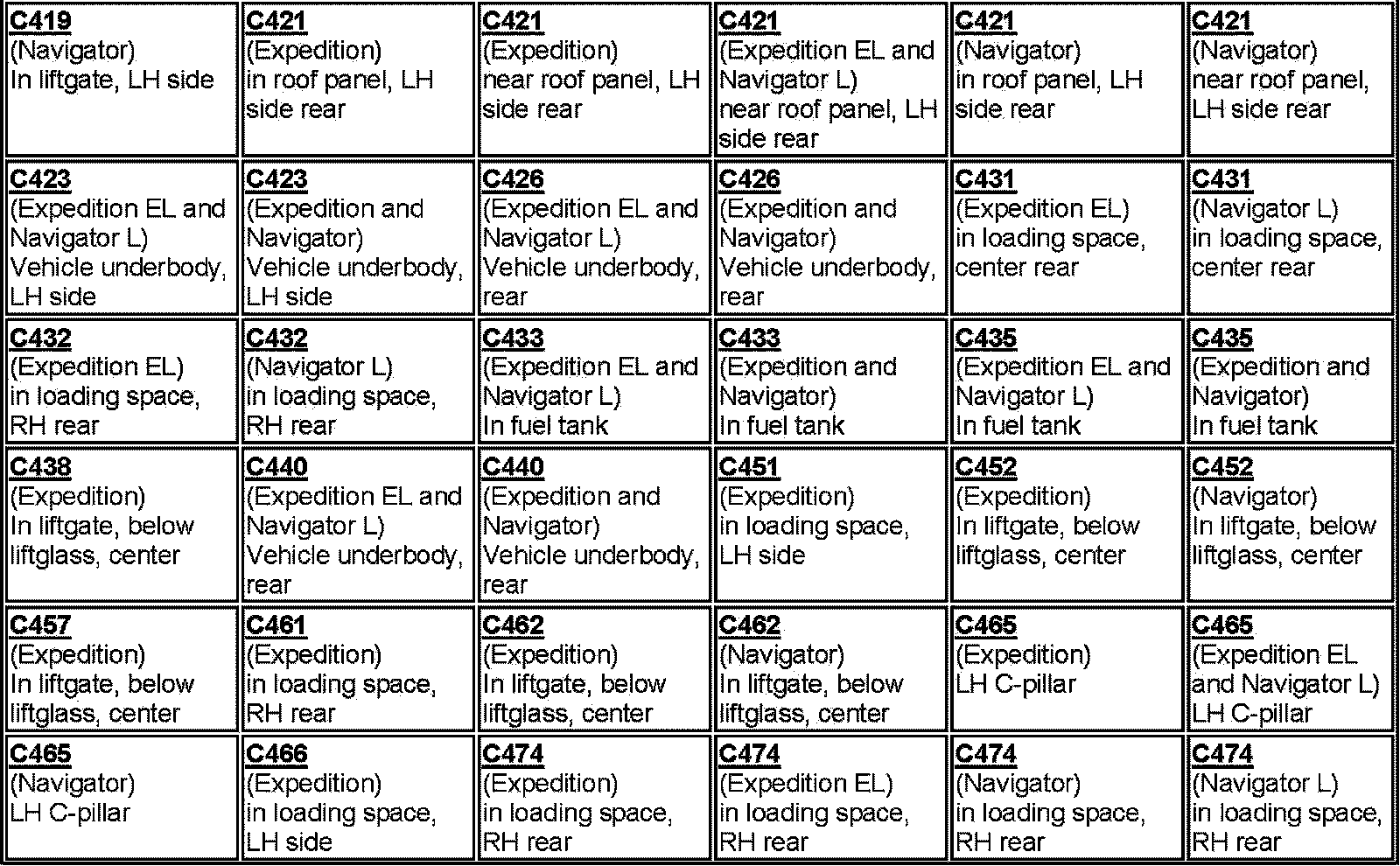

C419-C474:

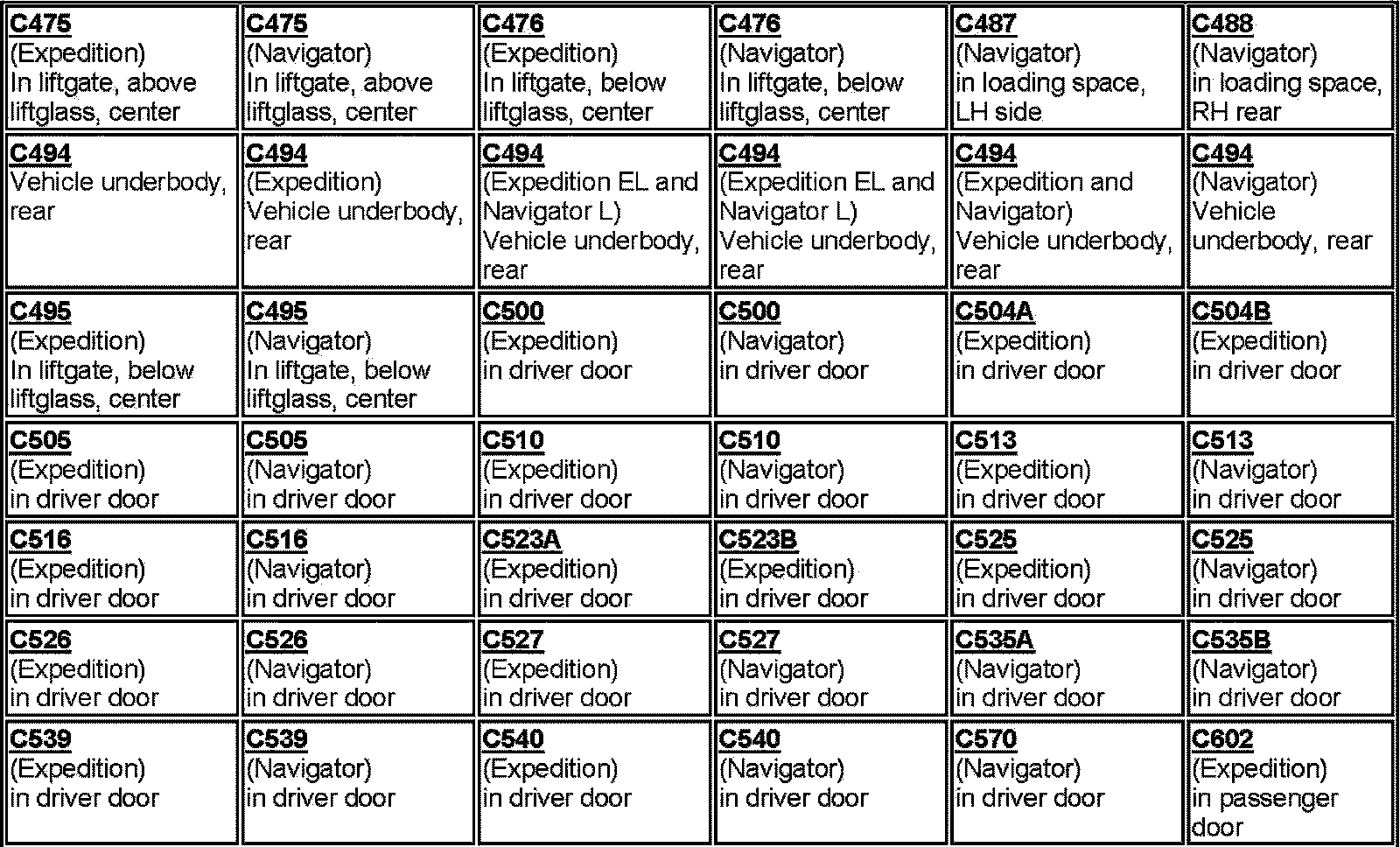

C475-C602:





C602-C914:





C914-C1035:





C1035-C1451:

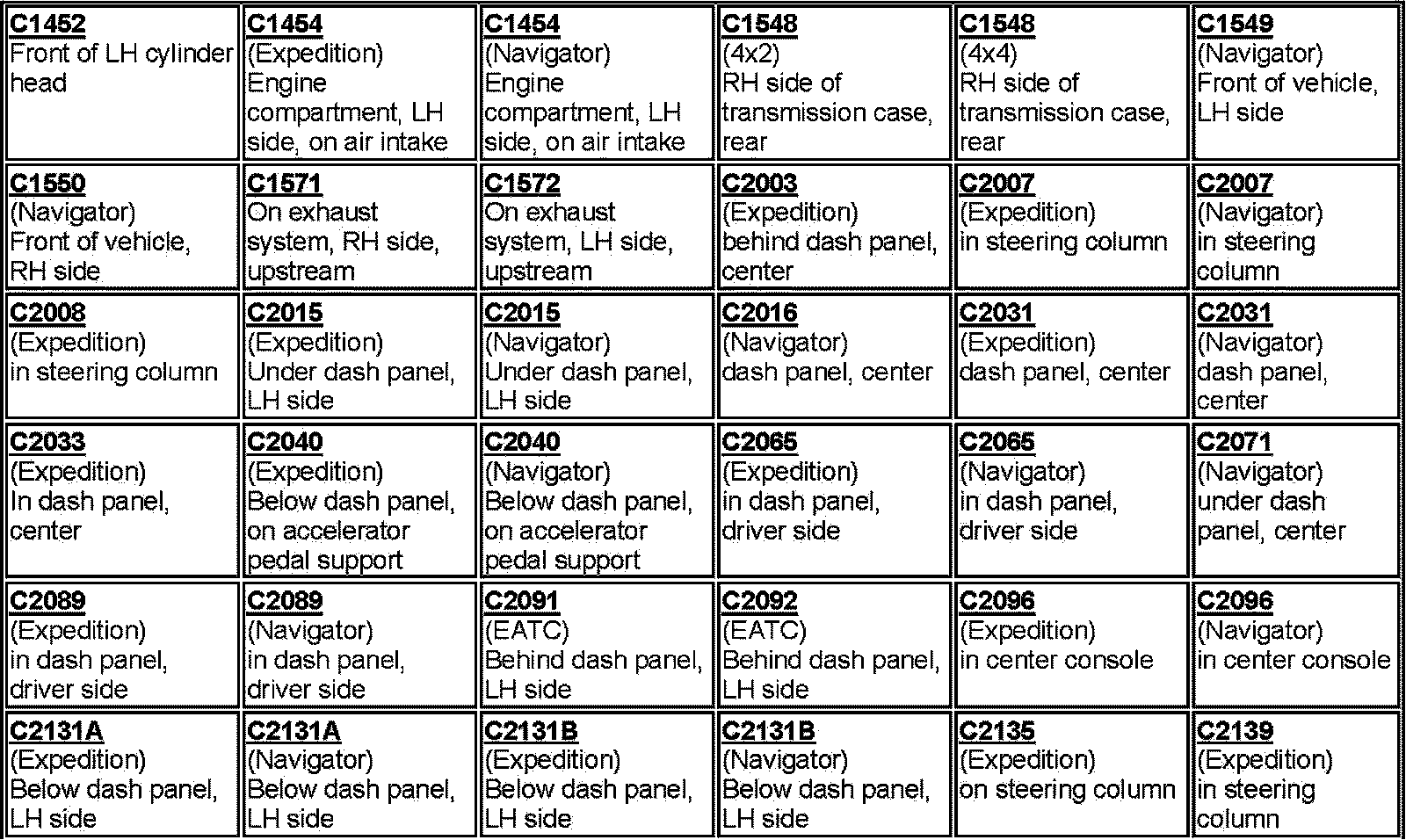

C1452-C2139:

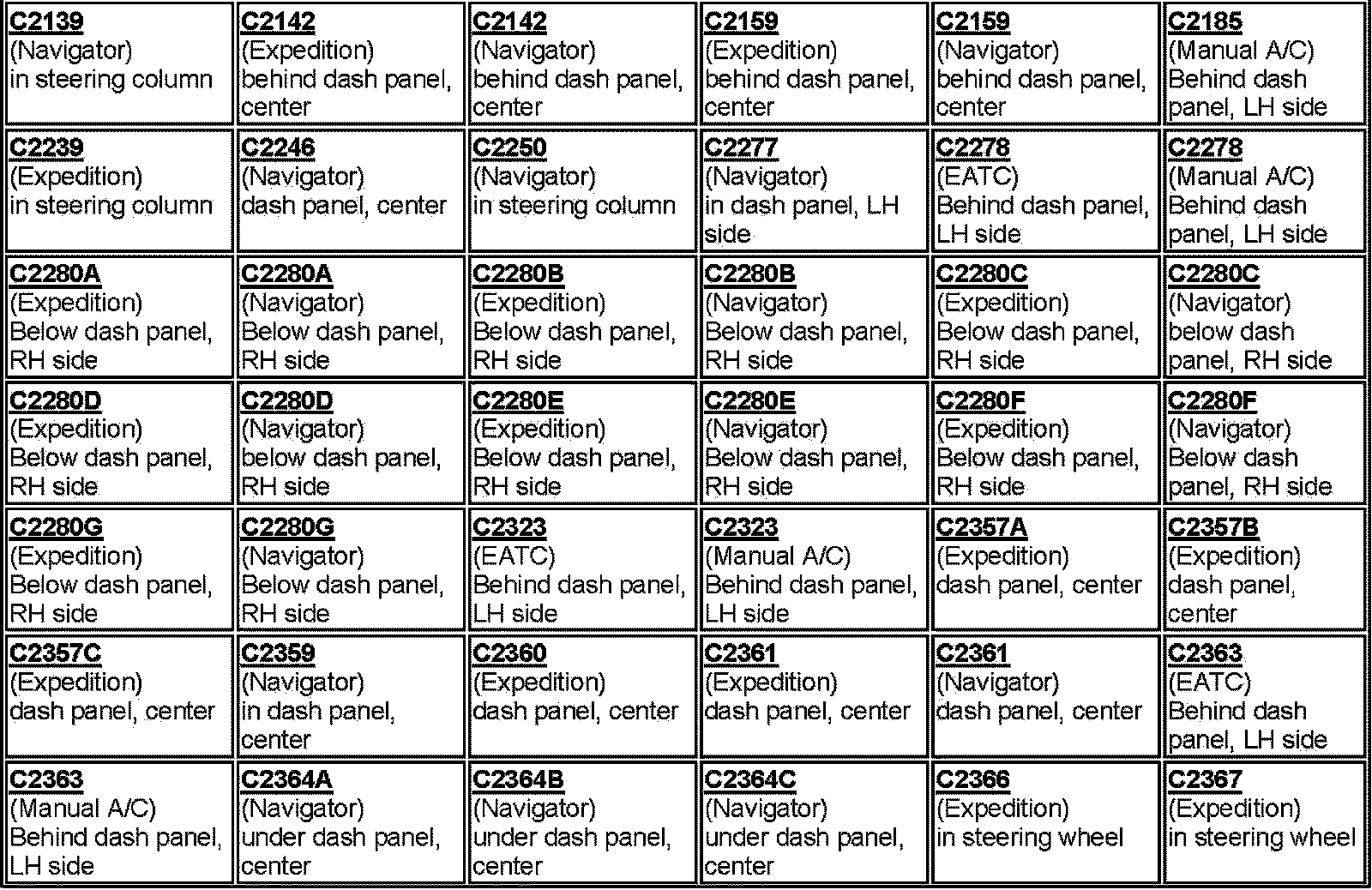

C2139-C2367:

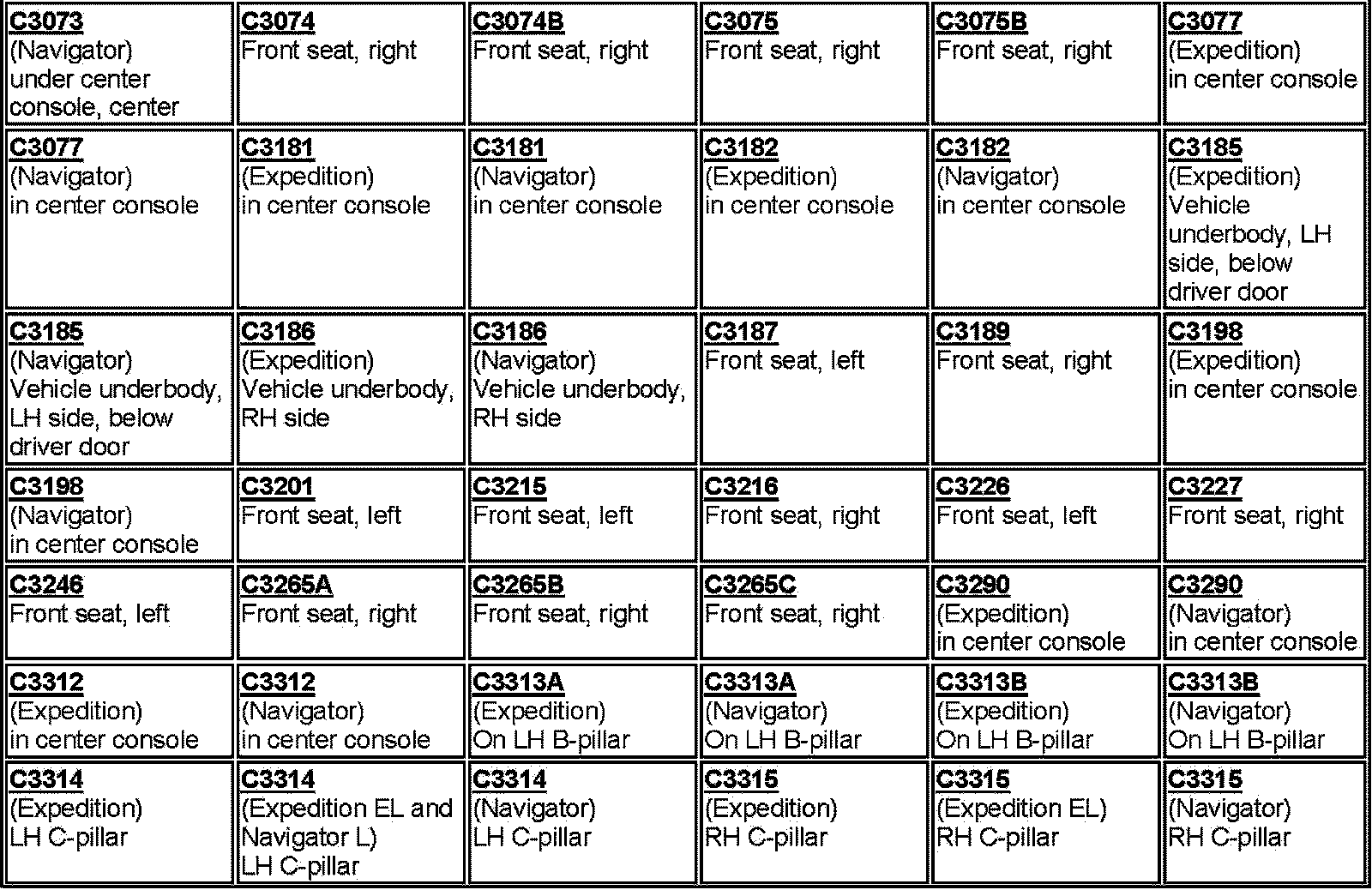

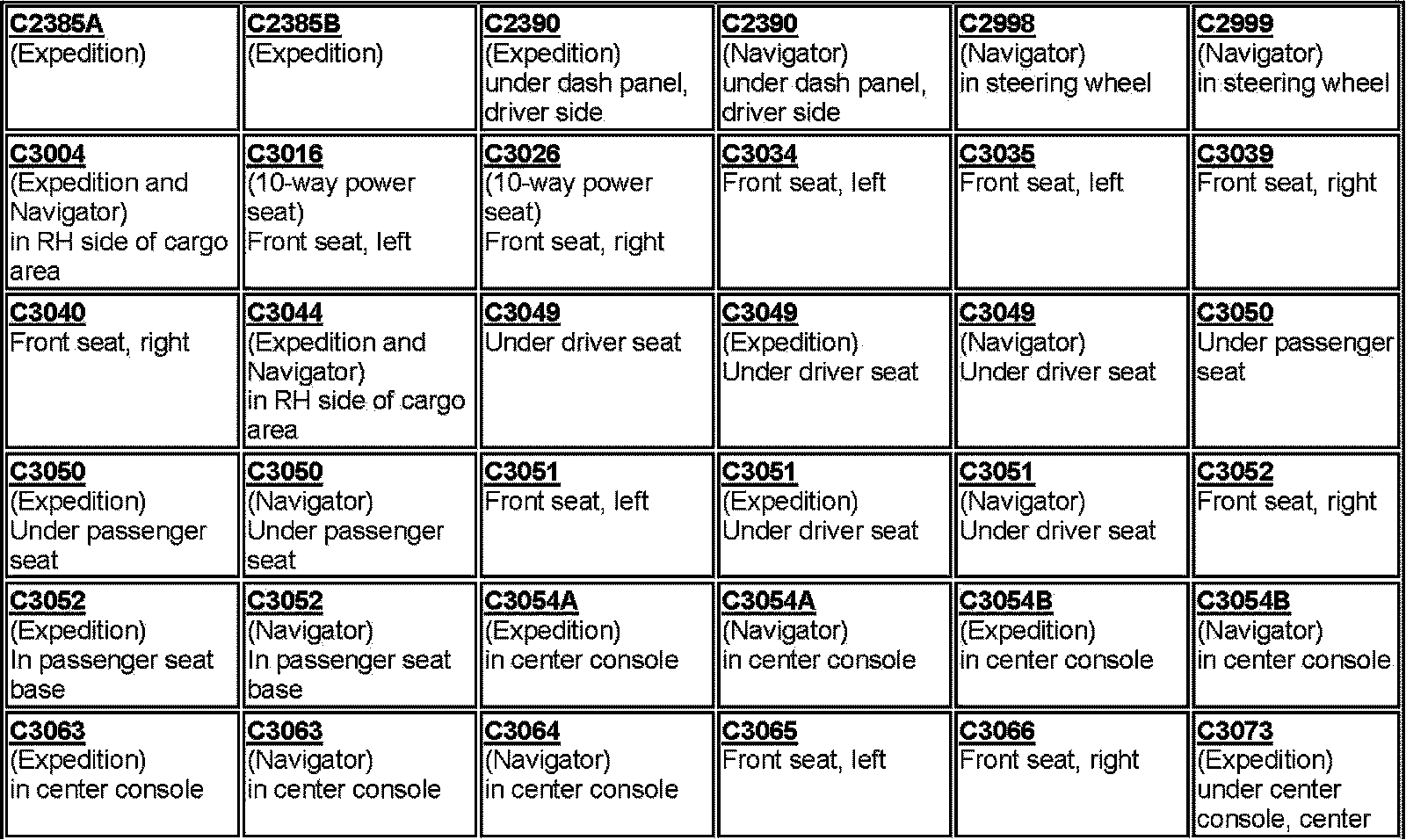

C2385A-C3073:





C3073-C331:

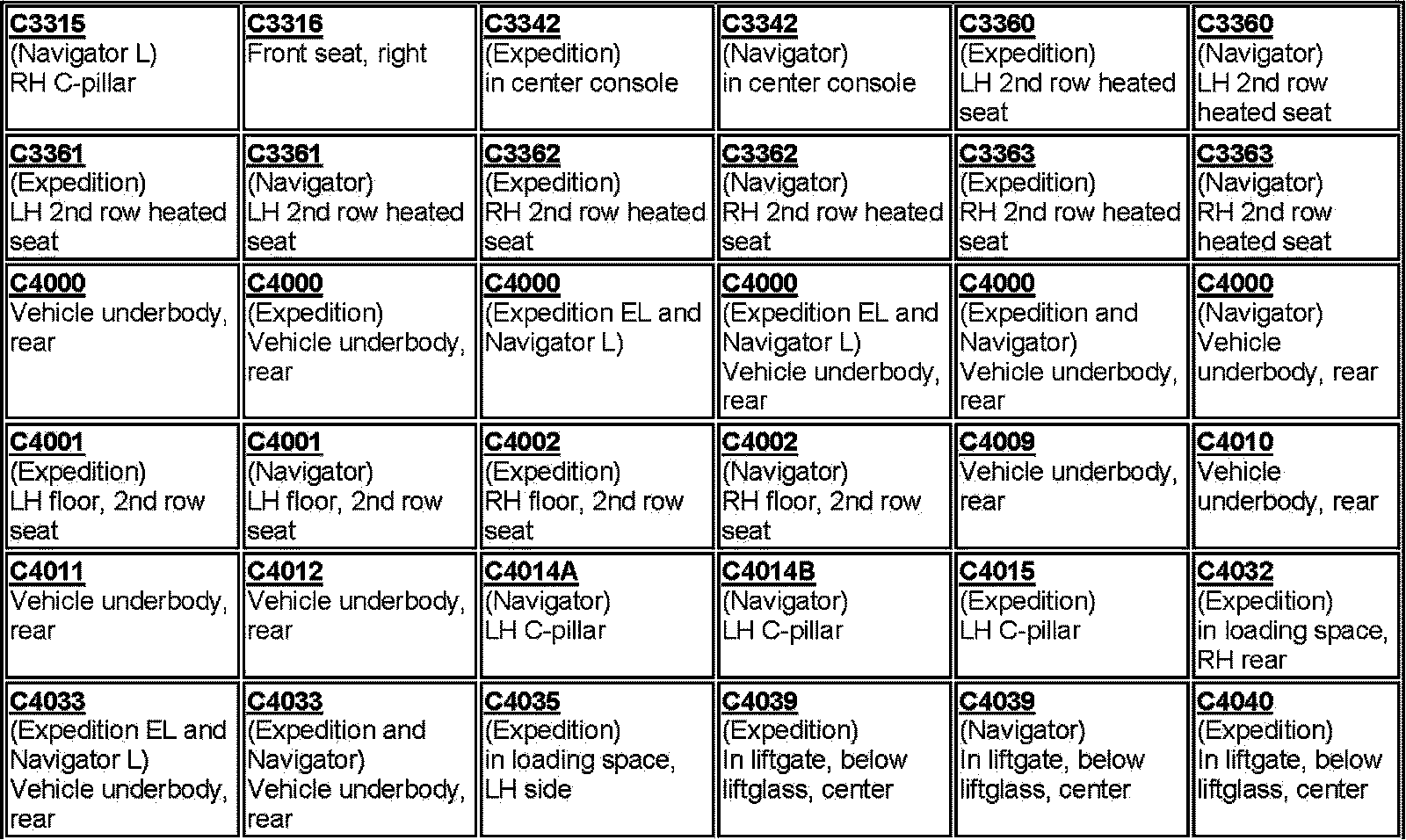

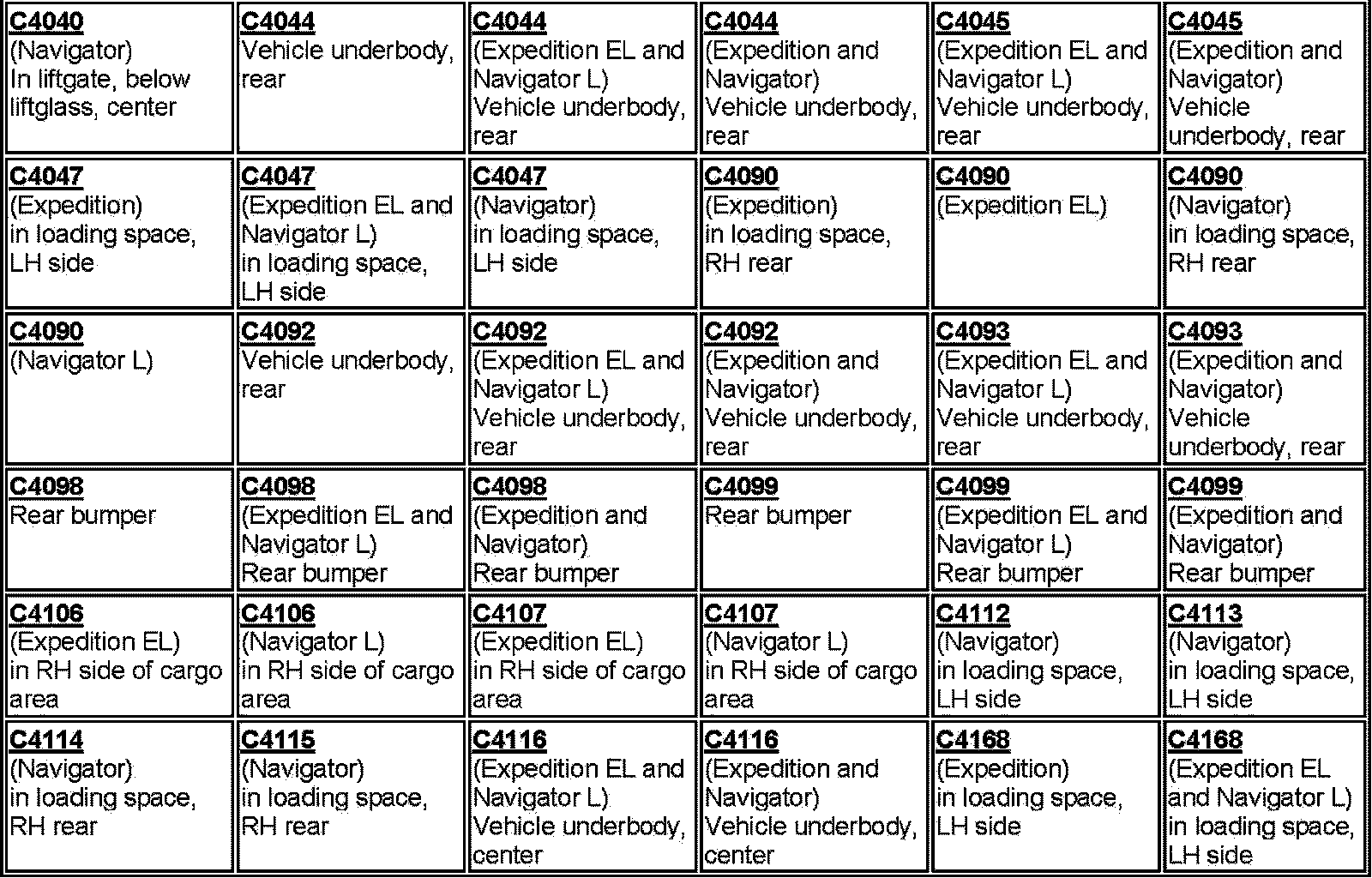

C3315-C4040:





C4040-C4168:





C4168-C4332:





C4332-C9039:
