Home >> Ford >> 2009 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Dual Climate Controlled Seat Module (DCSM)
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

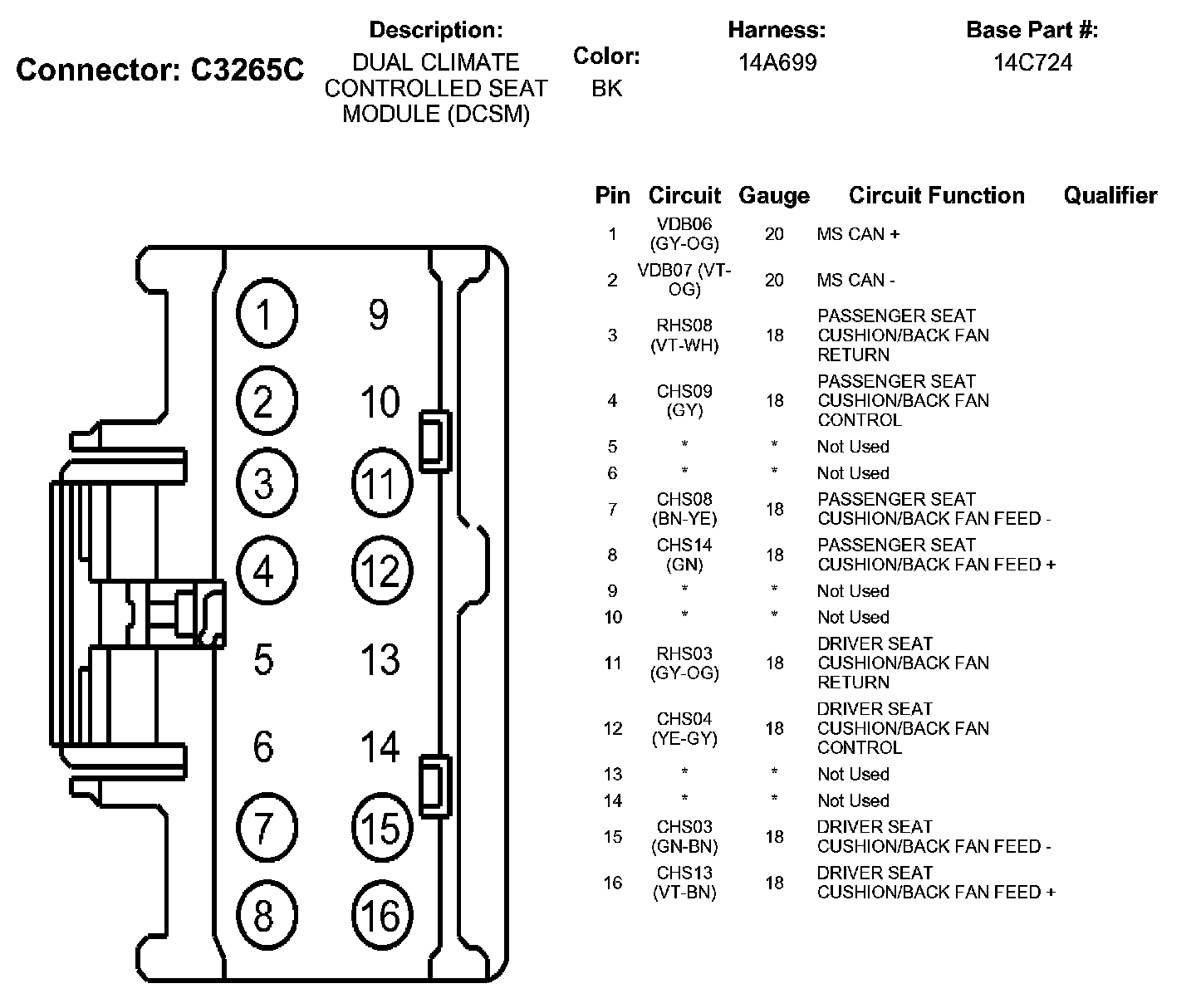

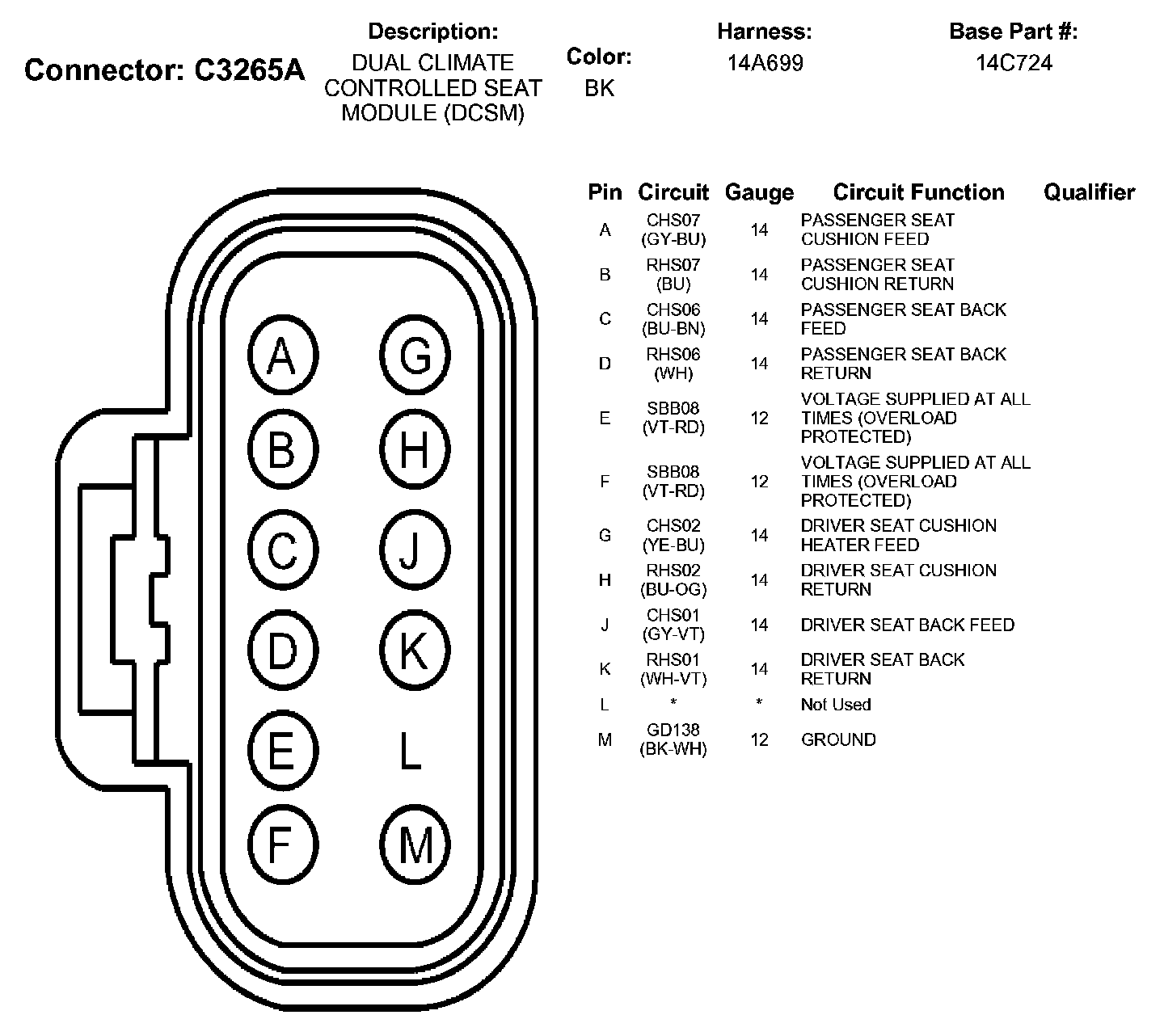

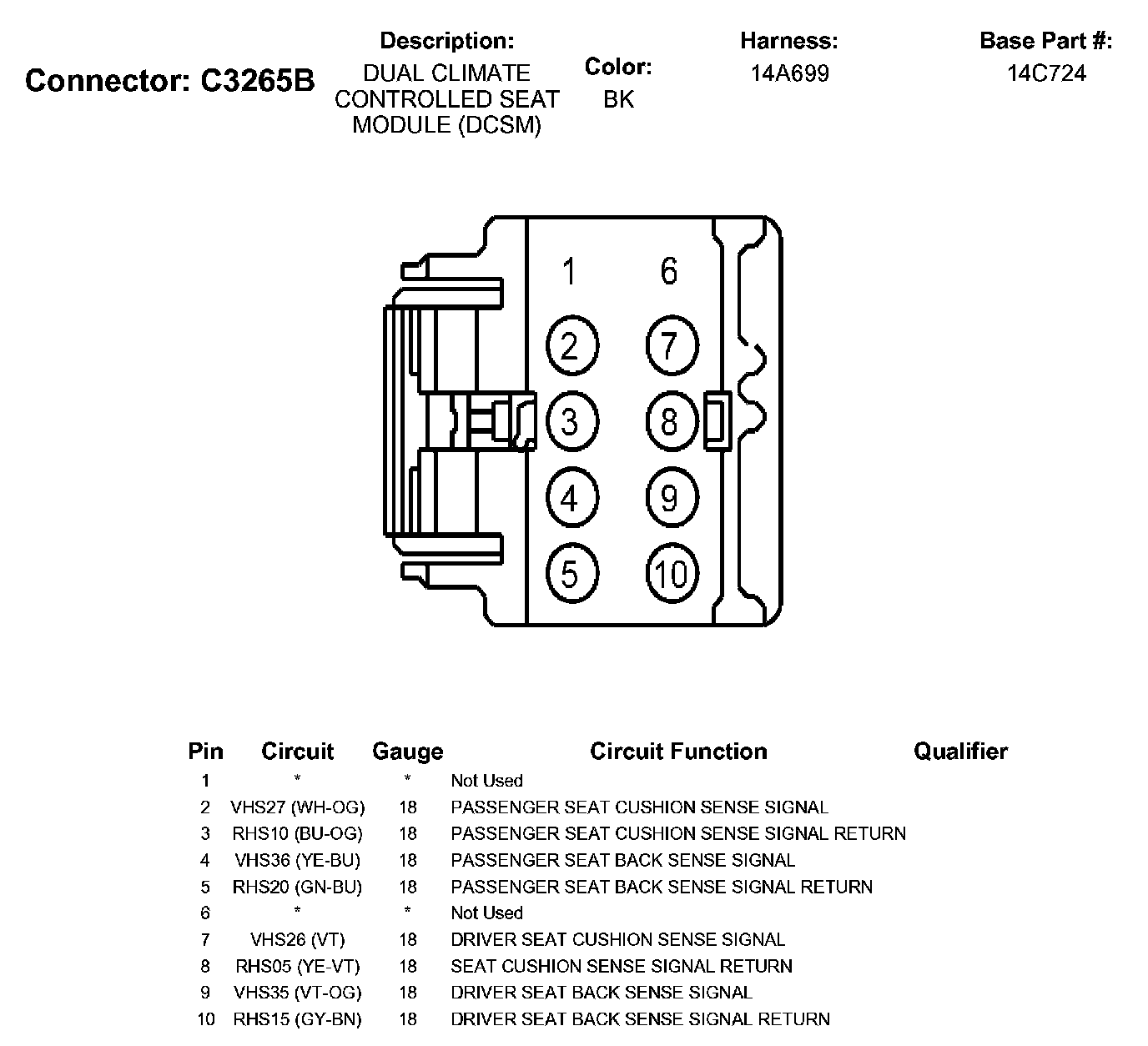

Dual Climate Controlled Seat Module (DCSM)
