Cruise Control Switch: Service and Repair




Speed Control Switch

Expedition










Navigator









Removal and Installation

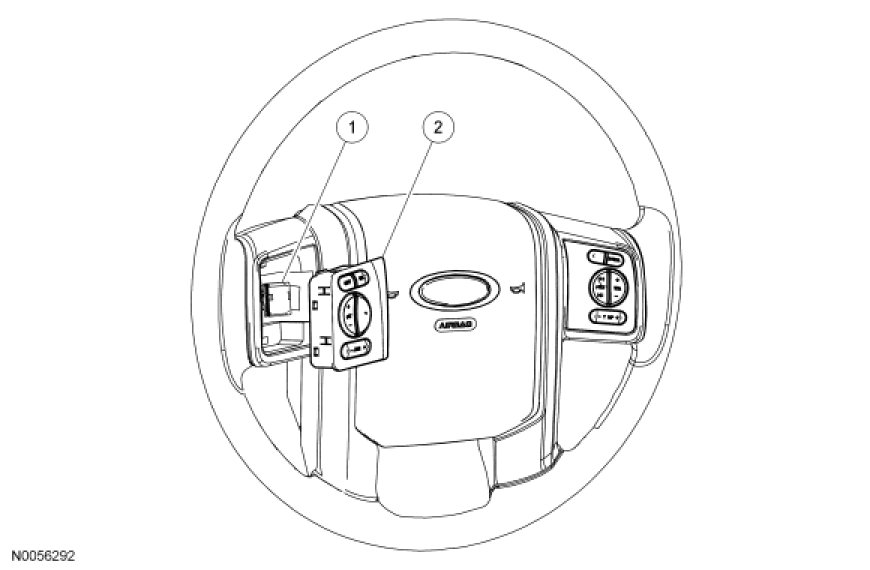

Expedition

NOTE: It is not necessary to remove the driver air bag module during this procedure.

NOTE: Be careful not to allow the speed control switch electrical connector to fall back into the steering wheel.

1. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

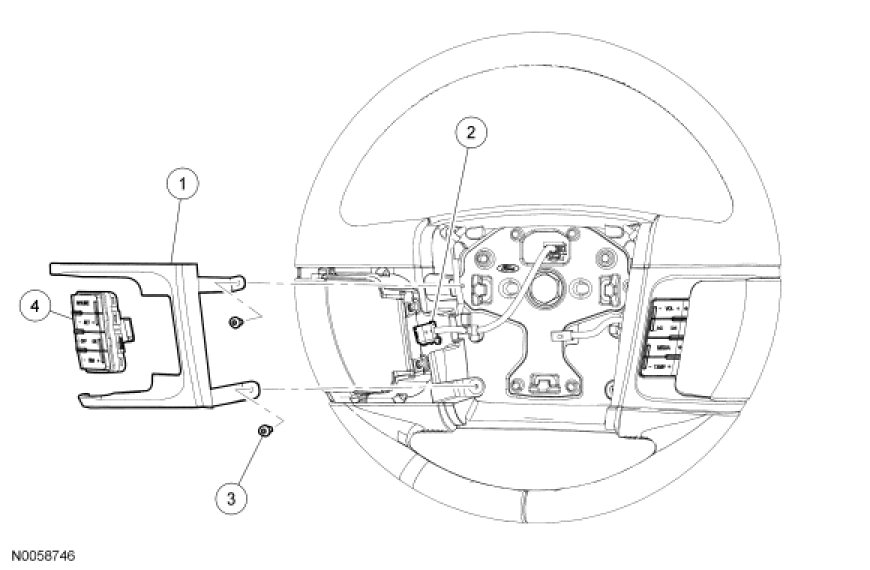

Navigator

2. Remove the driver air bag module. For additional information, refer to Air Bag Systems.

3. Remove the 2 screws and the steering wheel controls bezel.

4. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

All vehicles

5. To install, reverse the removal procedure.
