Seat - Exploded View, Third Row




Seat - Exploded View, Third Row

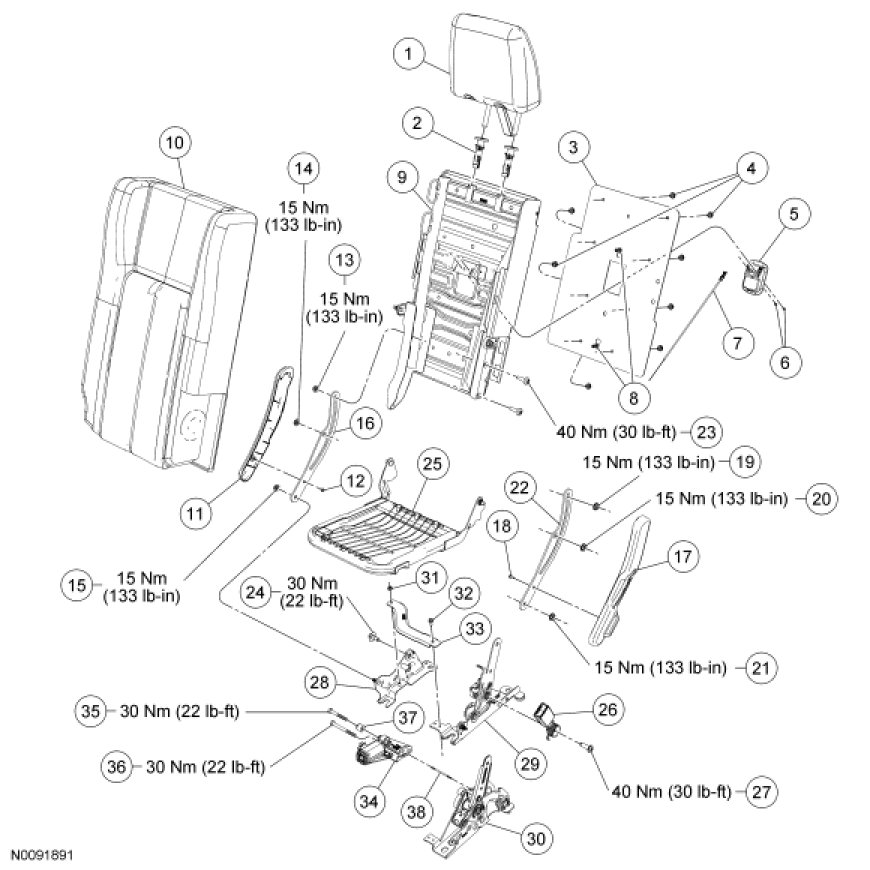

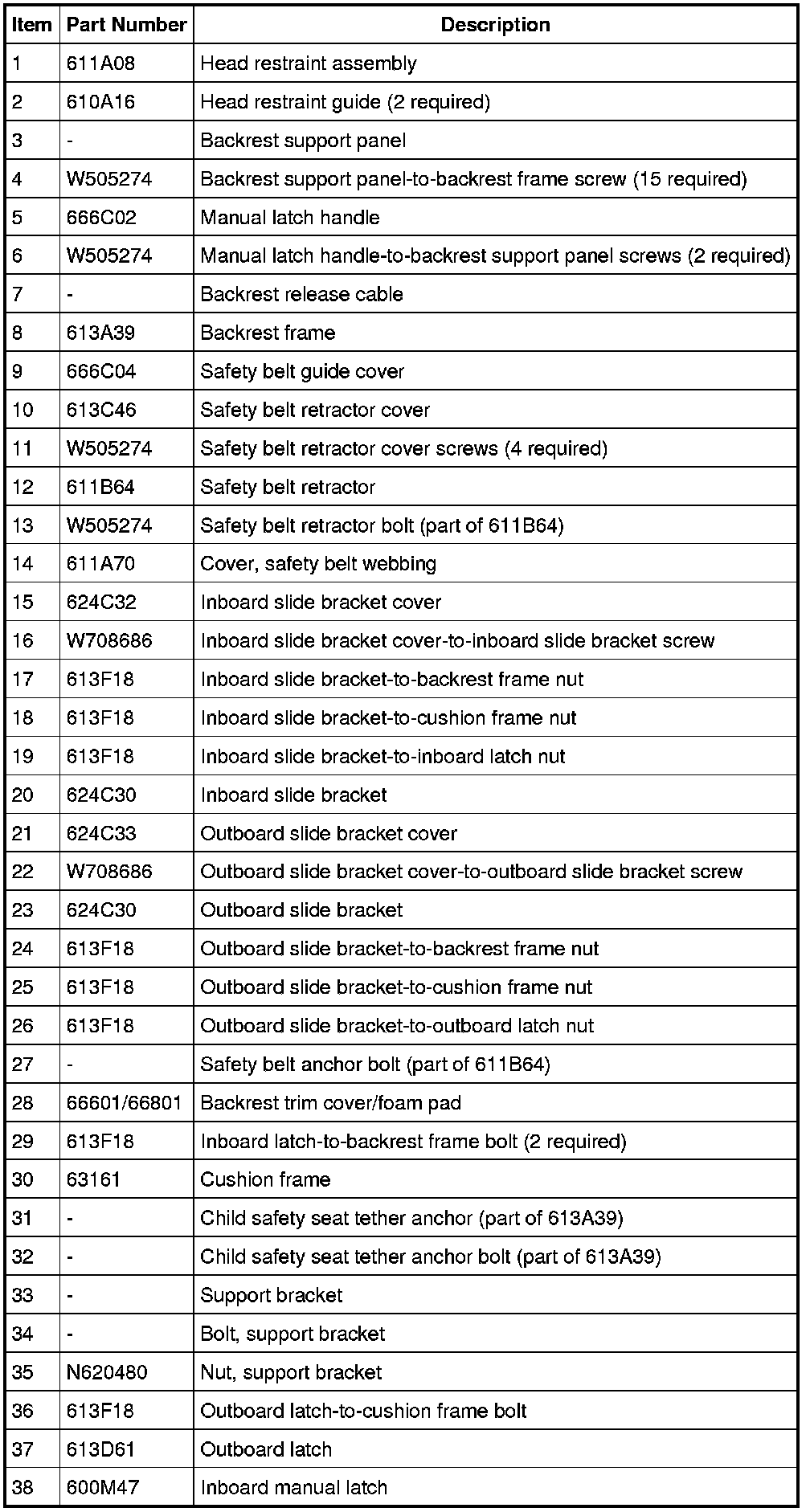

Seat Backrest - 40 percent

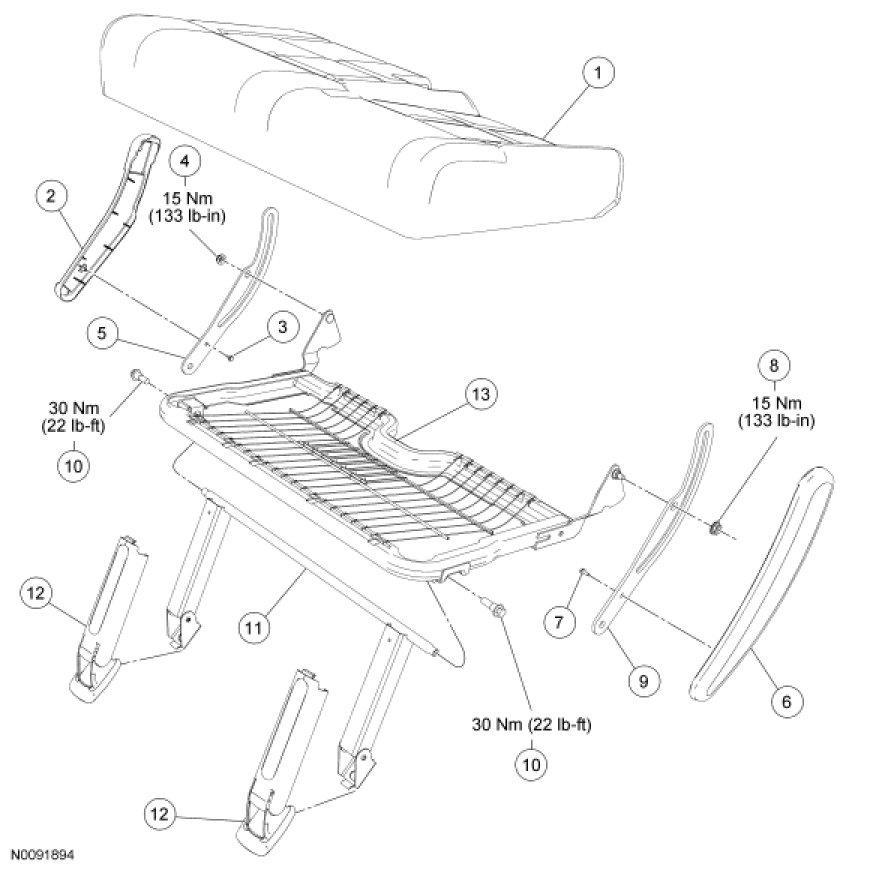

Seat Cushion - 40 Percent

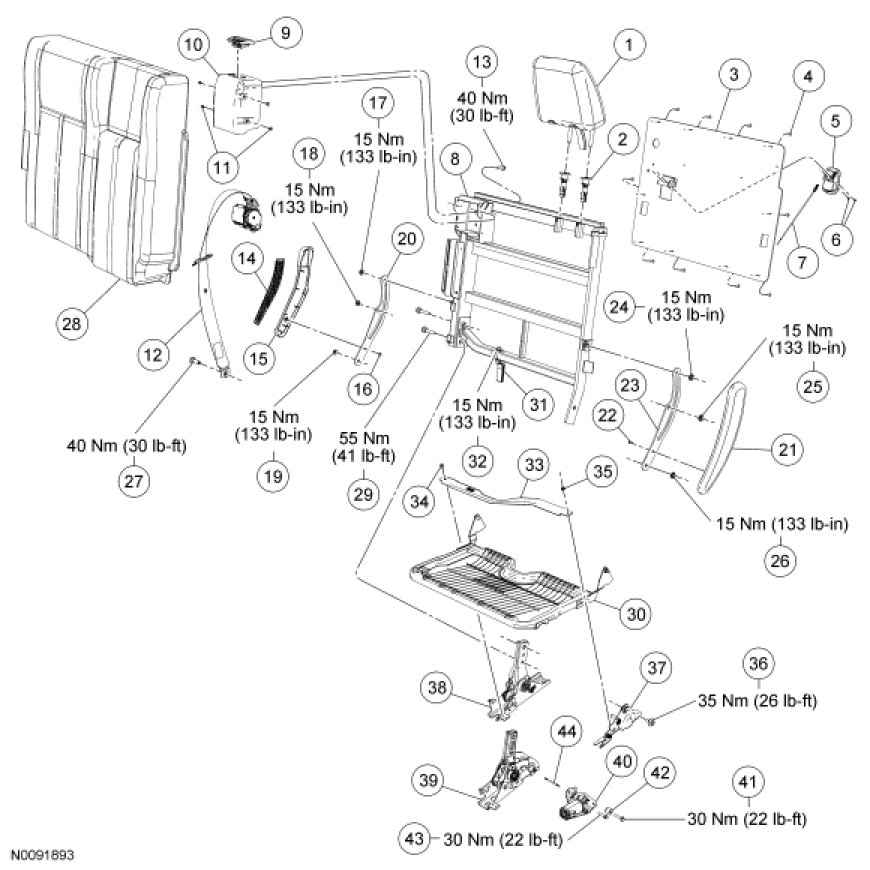

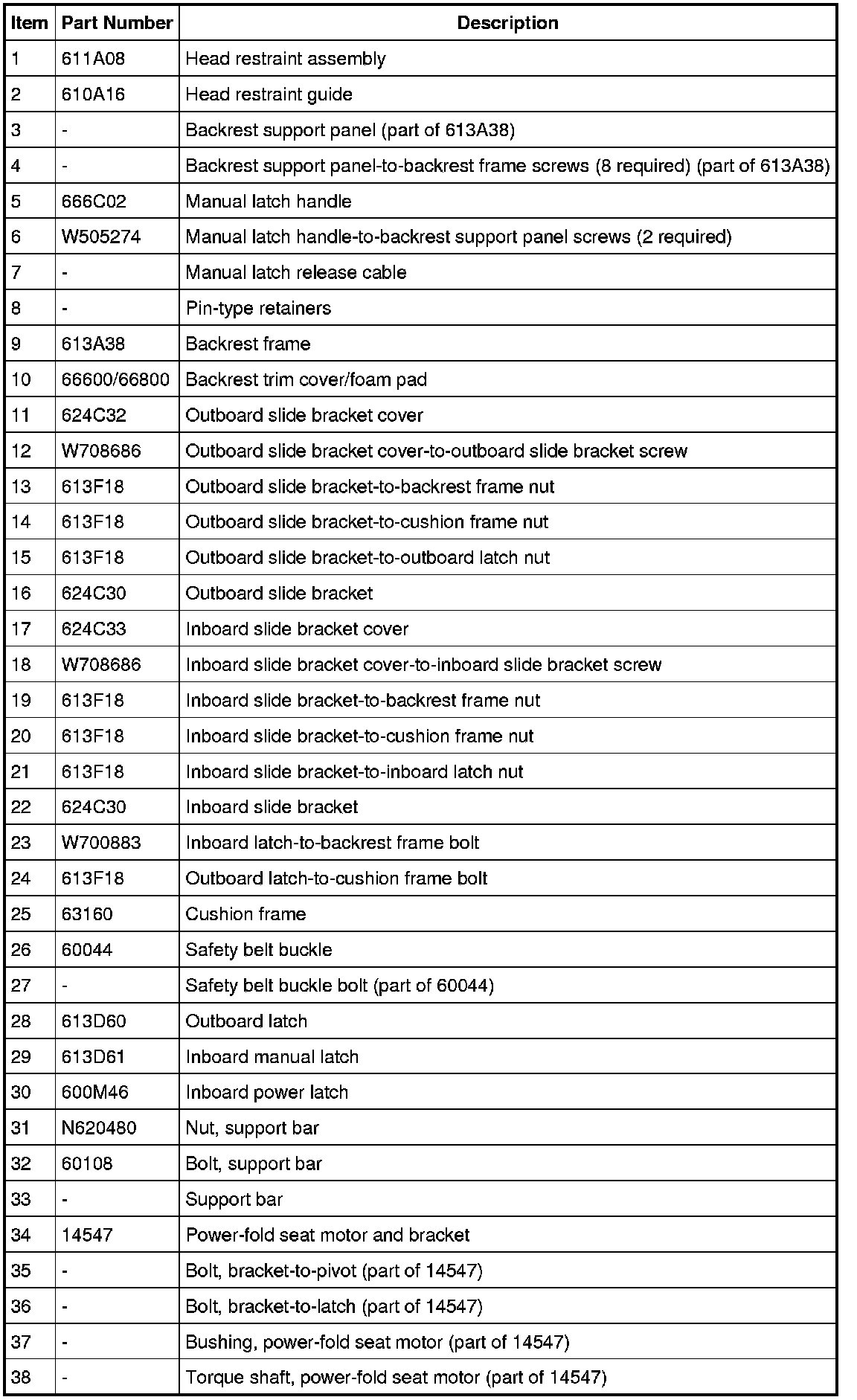

Seat Backrest - 60 Percent

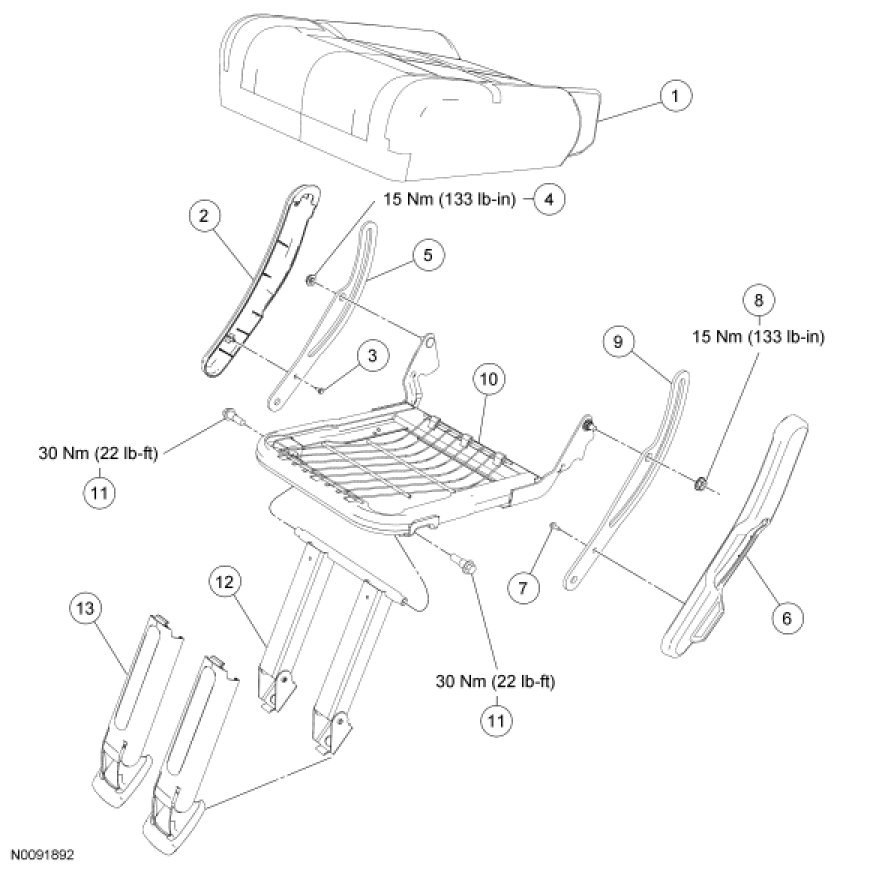

Seat Cushion - 60 Percent









1. For additional information, refer to the procedures.
