Left Front Wheel Speed Sensor Connector (C150)

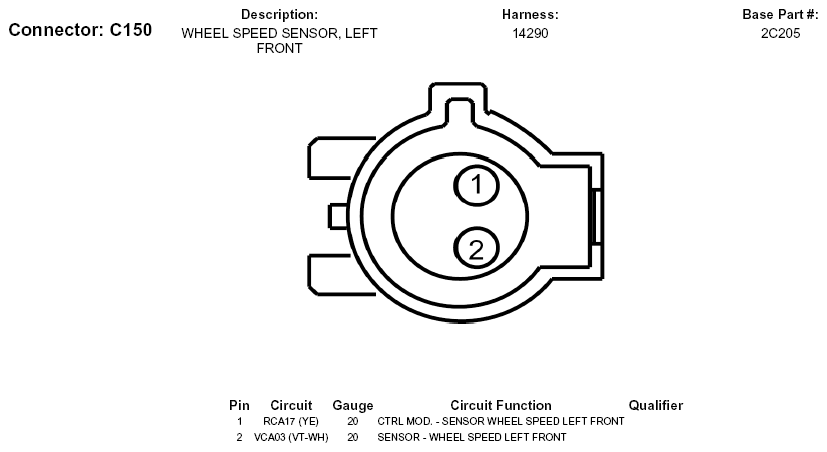

Fig 1: Left Front Wheel Speed Sensor Connector End View (C150)
G05746903Courtesy of FORD MOTOR CO.
