Fuel Injection Control Pressure (ICP) Sensor: Notes

WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

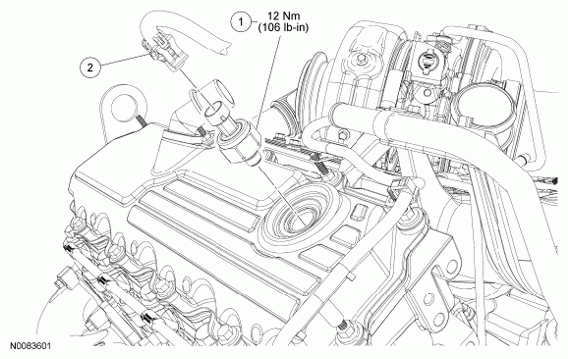

Fig 1: Fuel Injection Control Pressure (ICP) Sensor With Torque Specifications
G06139597Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 9F838 Injection Control Pressure (ICP) sensor
2 14A464 Fuel ICP electrical connector (part of 12B637)
