Power Liftgate Motor: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

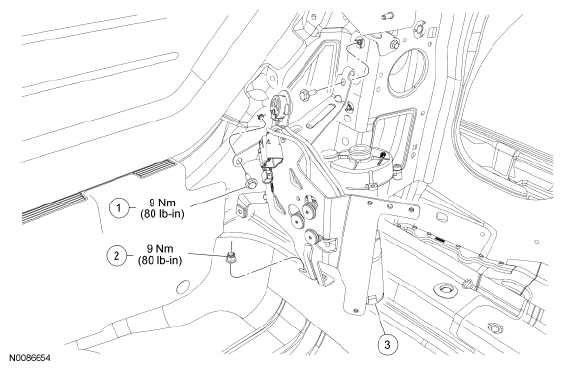

Fig 1: Power Liftgate Motor Replacement Components With Torque Specifications
G06070781Courtesy of FORD MOTOR CO.
PINPOINT TEST F: ANTI-THEFT INDICATOR IS ALWAYS/NEVER ON

Item Part Number Description
1 W705549 Power liftgate motor assembly bolt (2 required)
2 W520201 Power liftgate motor assembly nut
3 14B351A Power liftgate motor assembly
