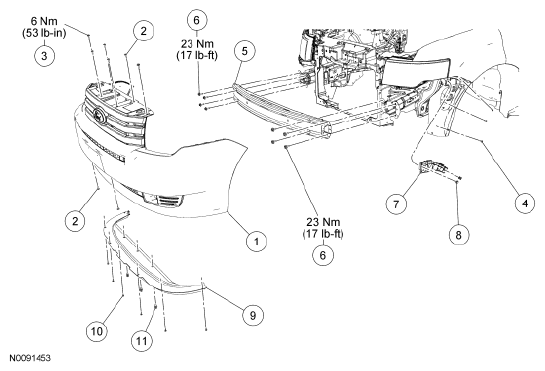

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C831 | Front bumper cover |
| 2 | W706350 | Front bumper cover scrivet |
| 3 | W711685 | Front bumper cover bolts |
| 4 | W710763 | Front bumper cover wheelhouse screws |
| 5 | 17750 | Front bumper |
| 6 | W707050 | Front bumper bolts |
| 7 | 17D959 | LH/ 17D958 RH Front bumper cover mounting reinforcement |
| 8 | W711676 | Front bumper cover mounting reinforcement bolt |
| 9 | 38B407 | Front bumper cover lower air deflector |
| 10 | W712196 | Front bumper cover lower air deflector screws |
| 11 | W706350 | Front bumper cover lower air deflector scrivets |
- For additional information, refer to the procedures in this article.
