Passenger Safety Canopy Module Connector (C9019)

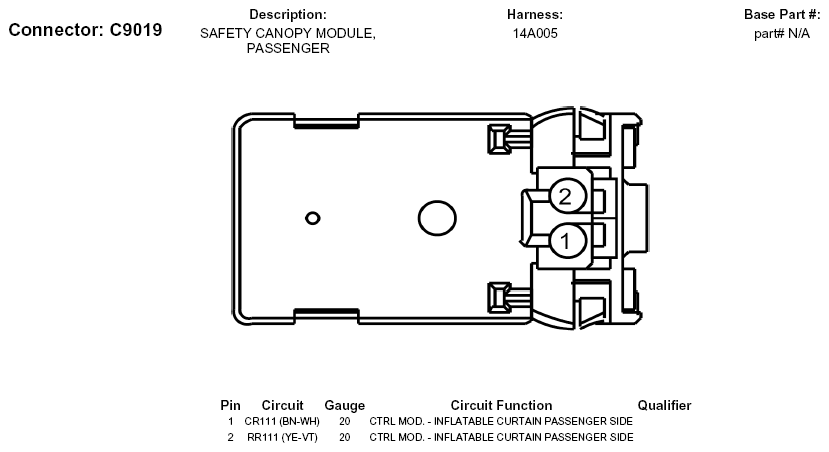

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)
G05747222Courtesy of FORD MOTOR CO.
