Water Pump

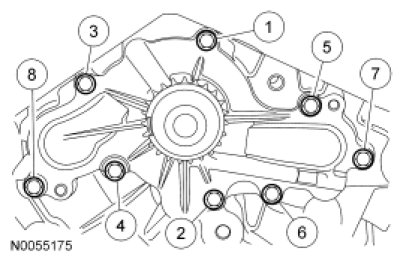

Install the coolant pump and the 8 bolts.
Tighten in the sequence shown to
10 Nm (89 lb-in).
