DL - Cylinder Head Temperature (CHT) Sensor

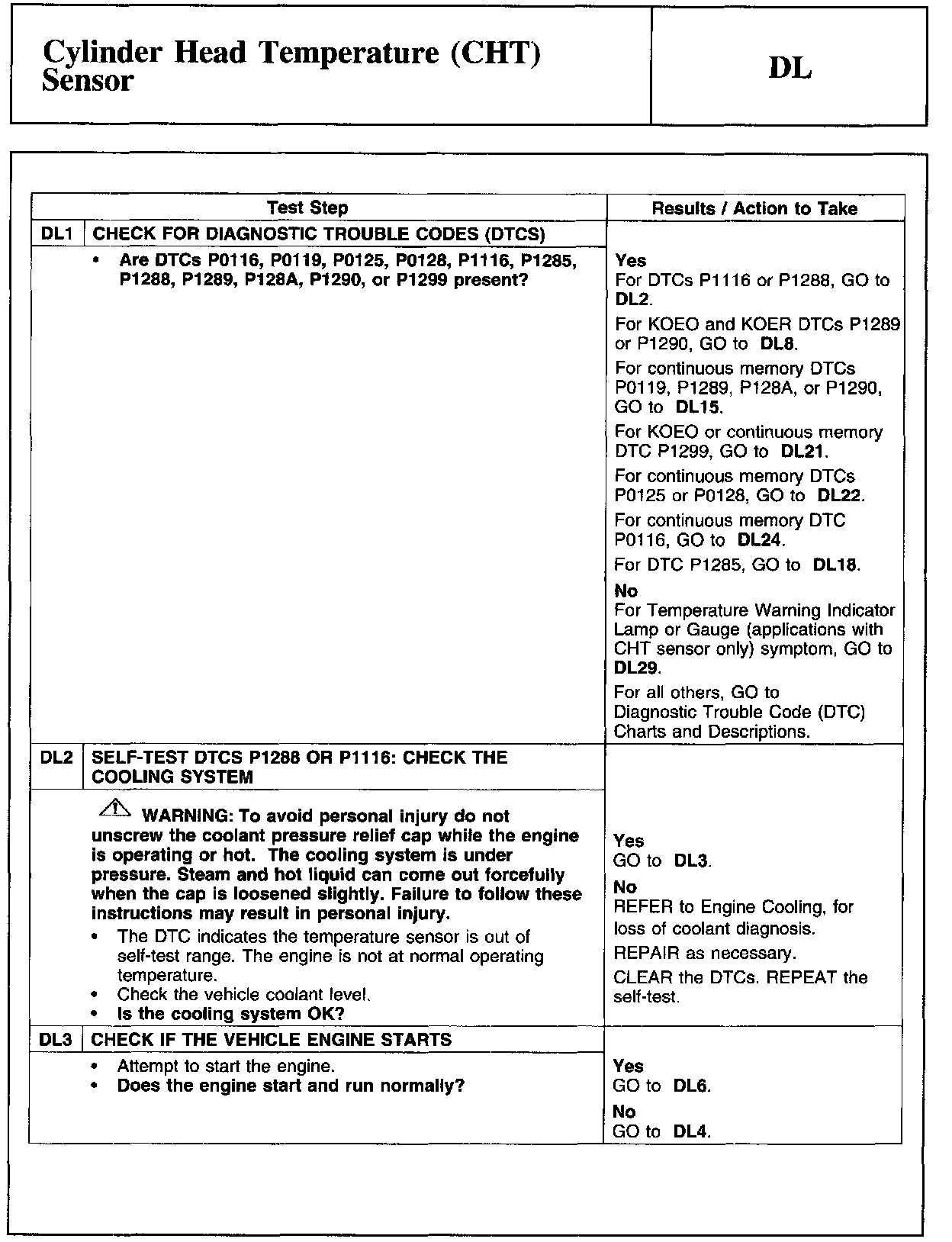

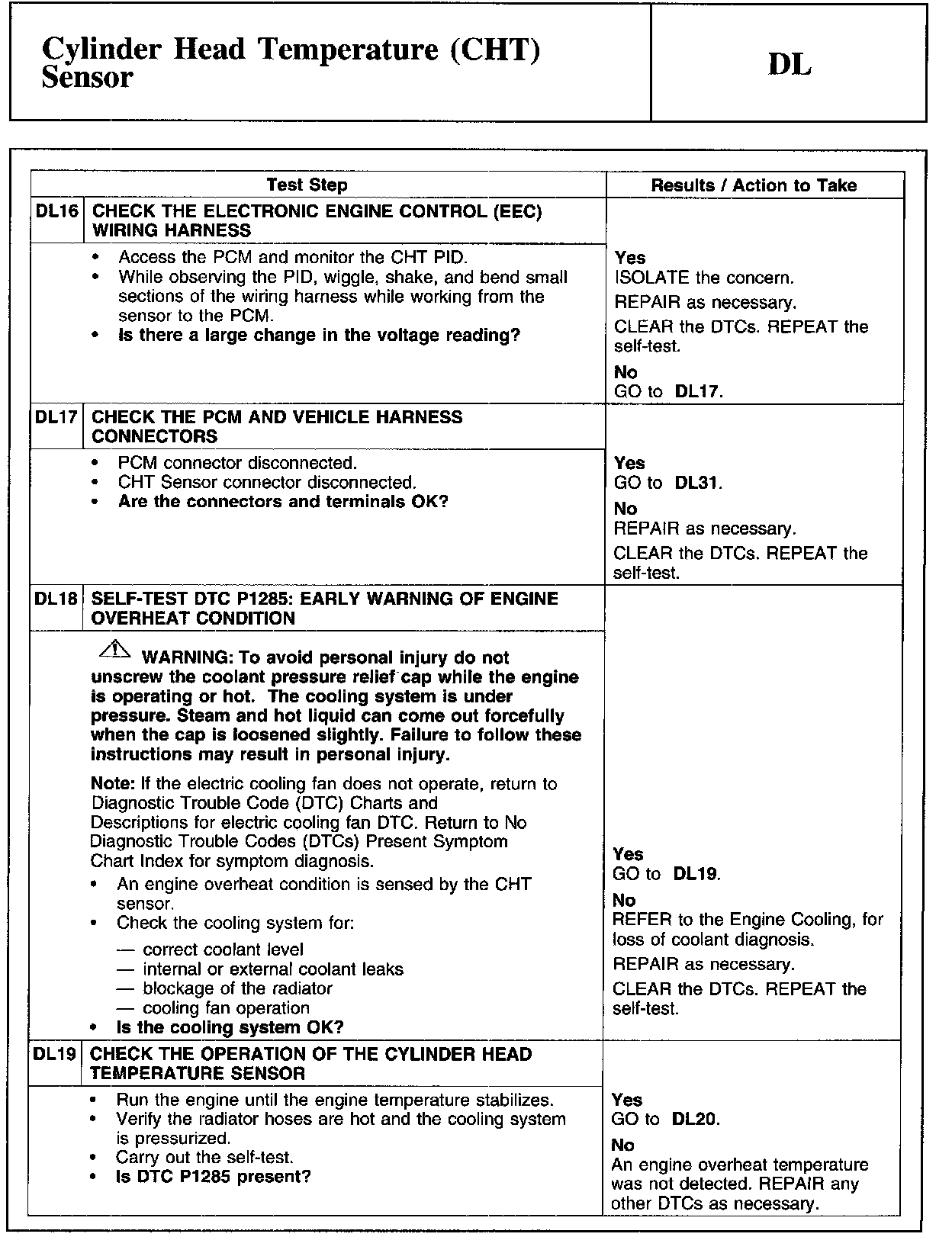

PINPOINT TEST DL: CYLINDER HEAD TEMPERATURE (CHT) SENSOR

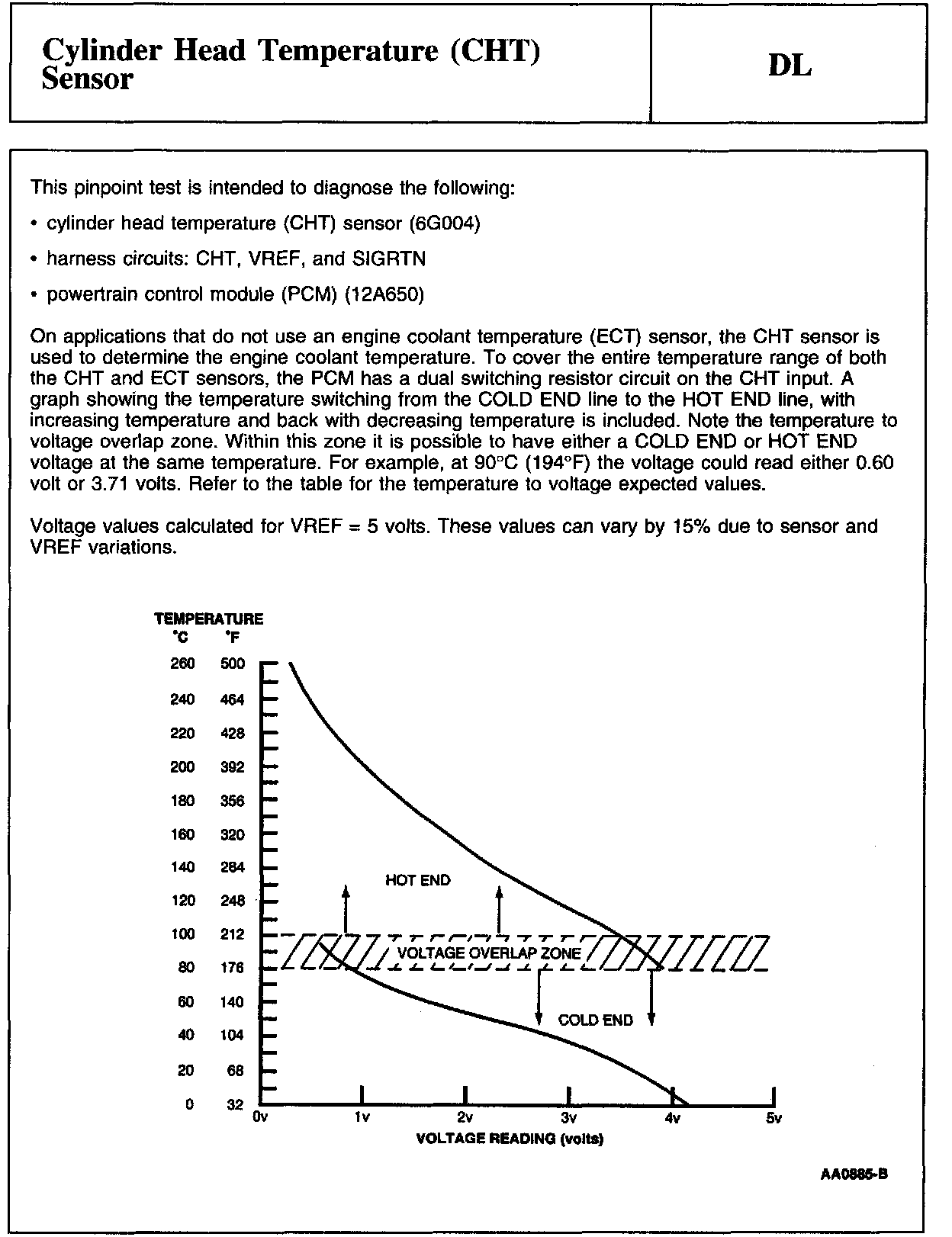

Voltage Reading Graph:

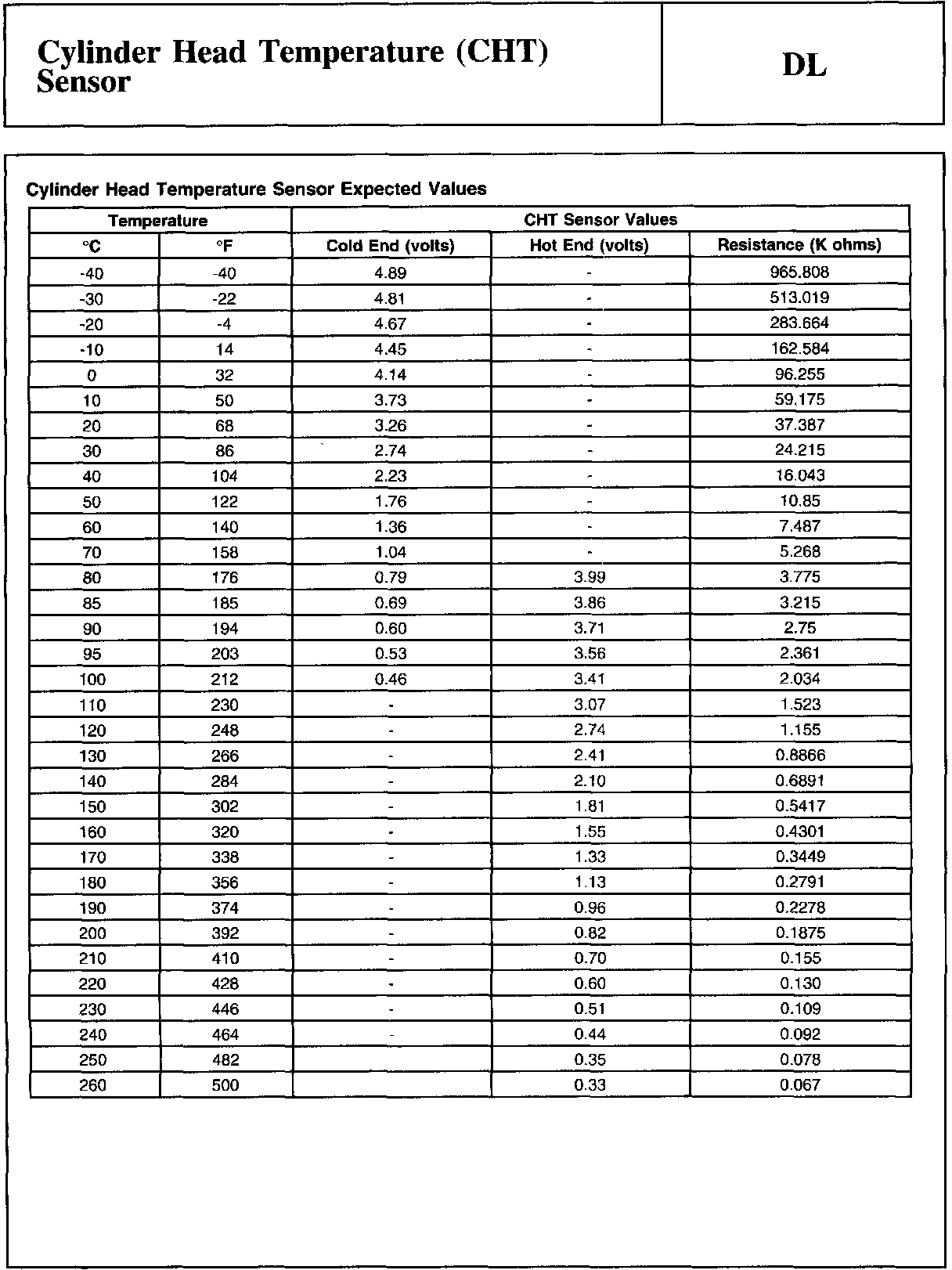

Cylinder Head Temperature Sensor Expected Values:

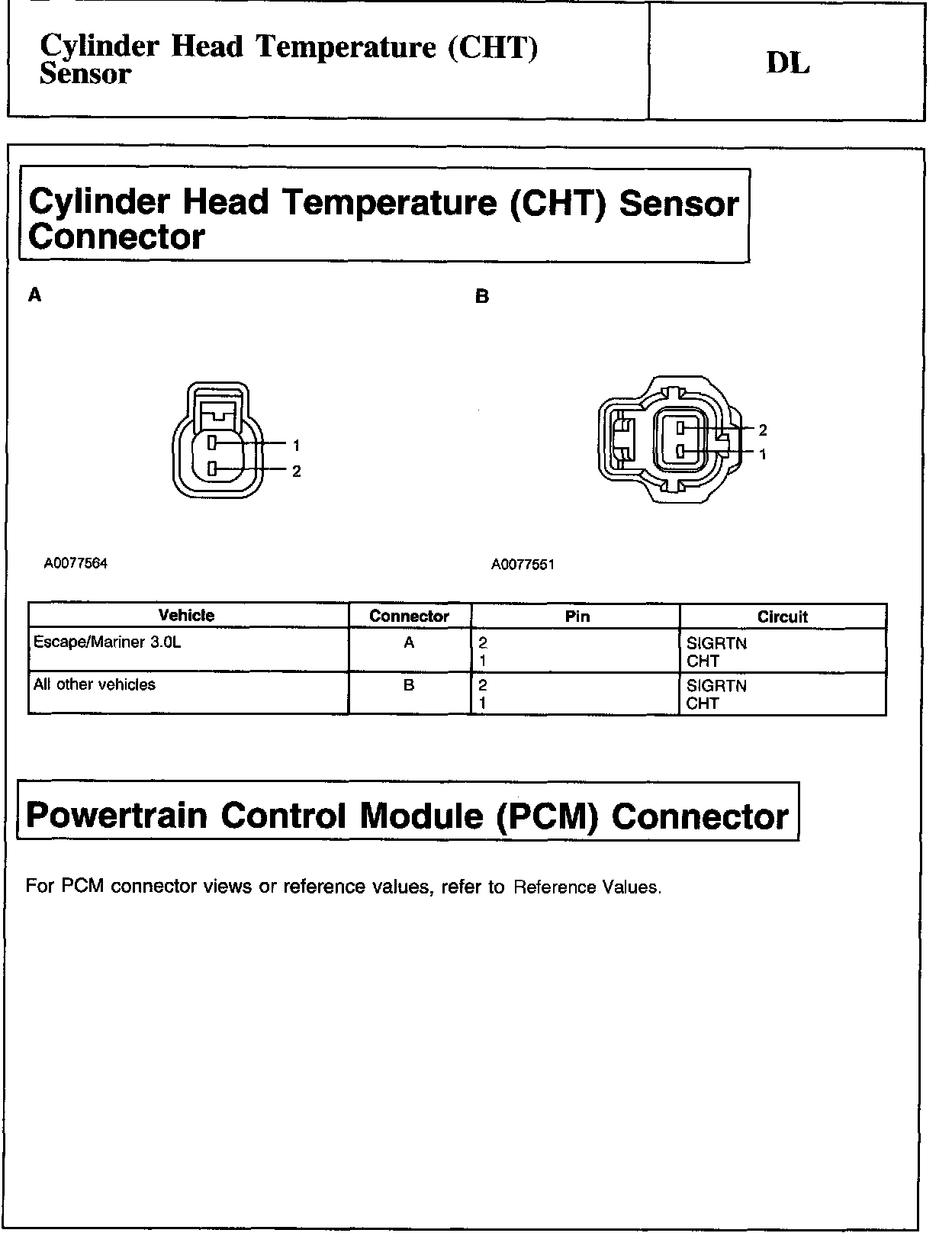

Cylinder Head Temperature Sensor And Powertrain Control Module Connector:





Powertrain Control Module Connector:

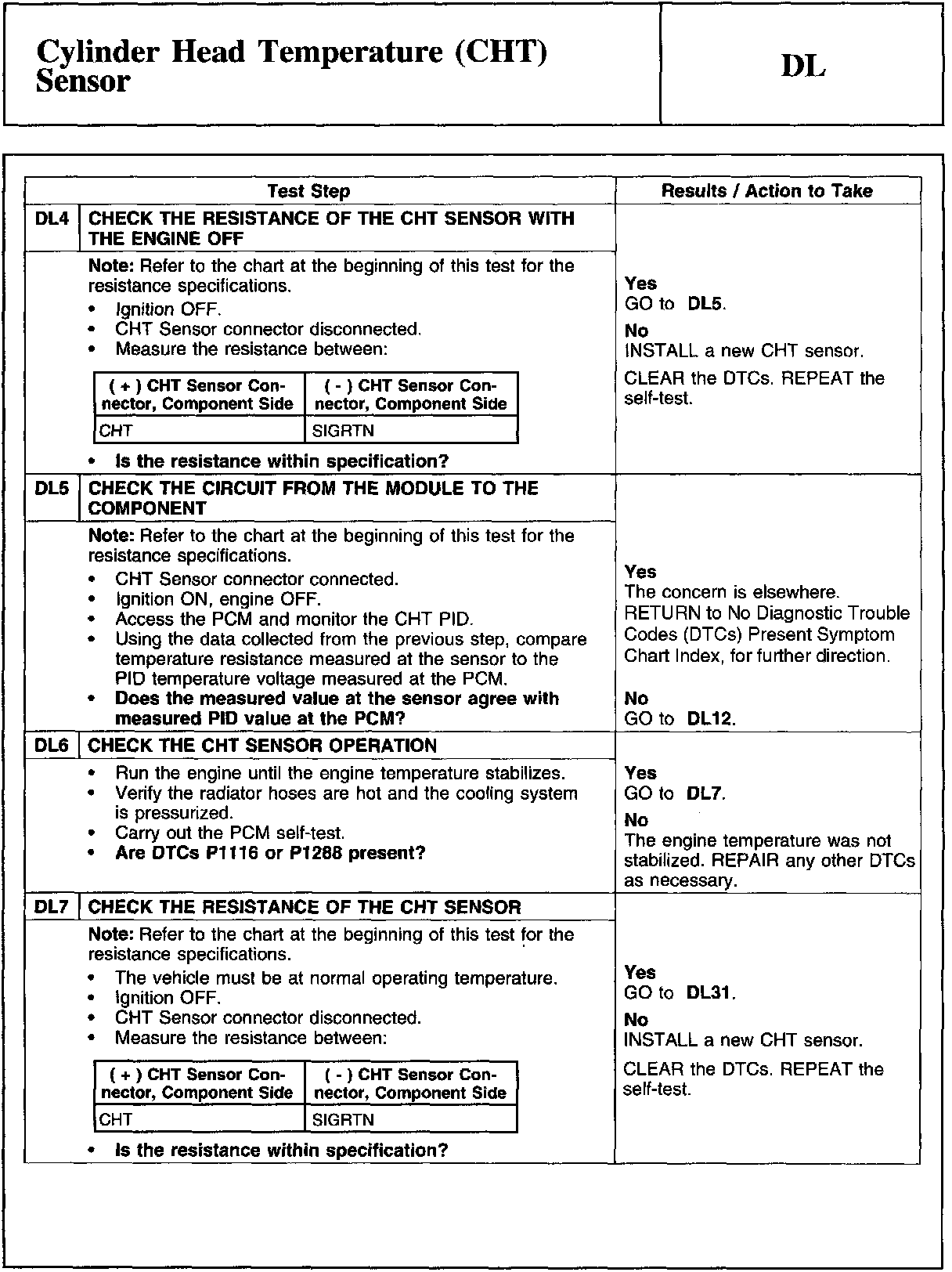

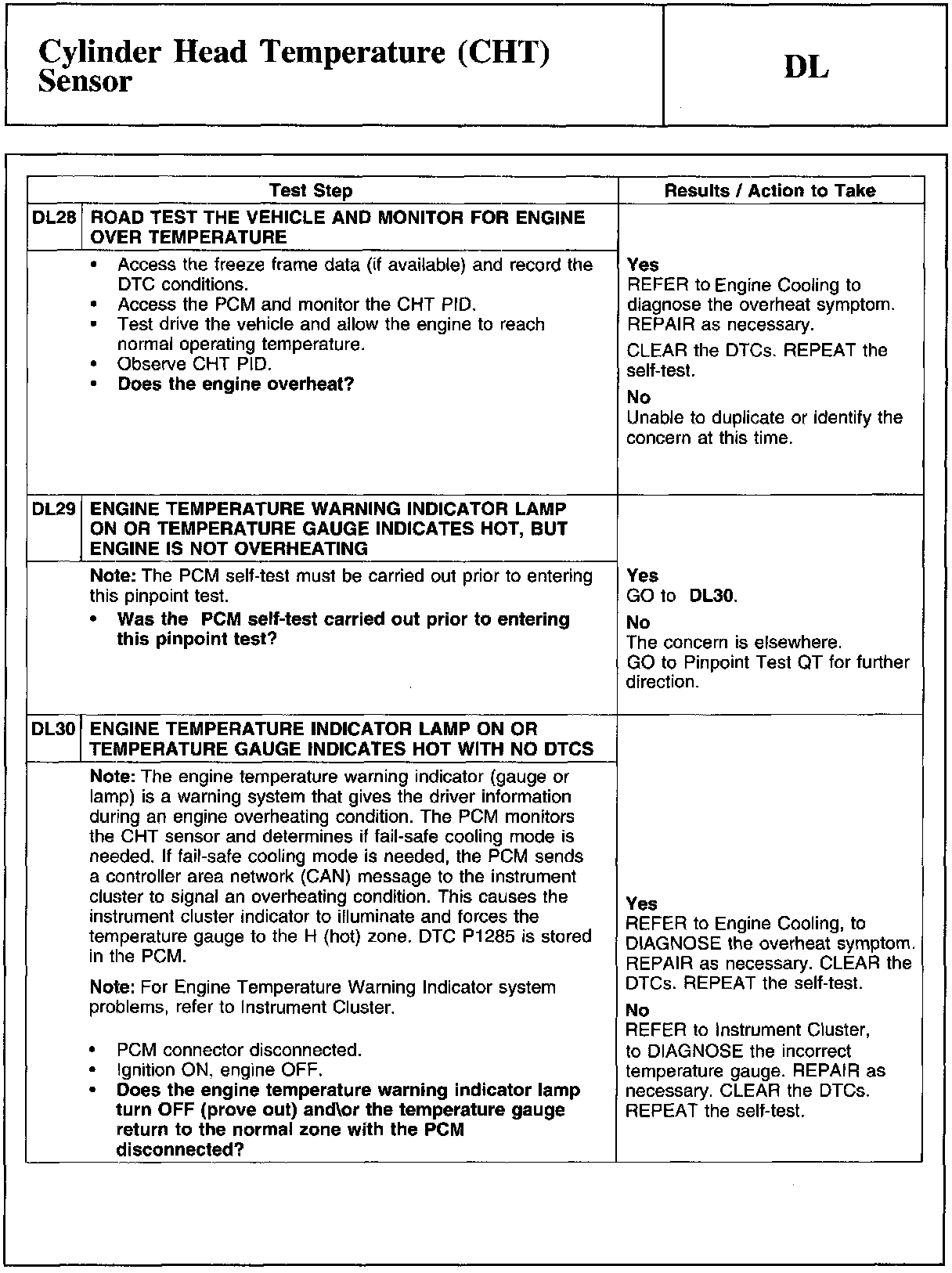

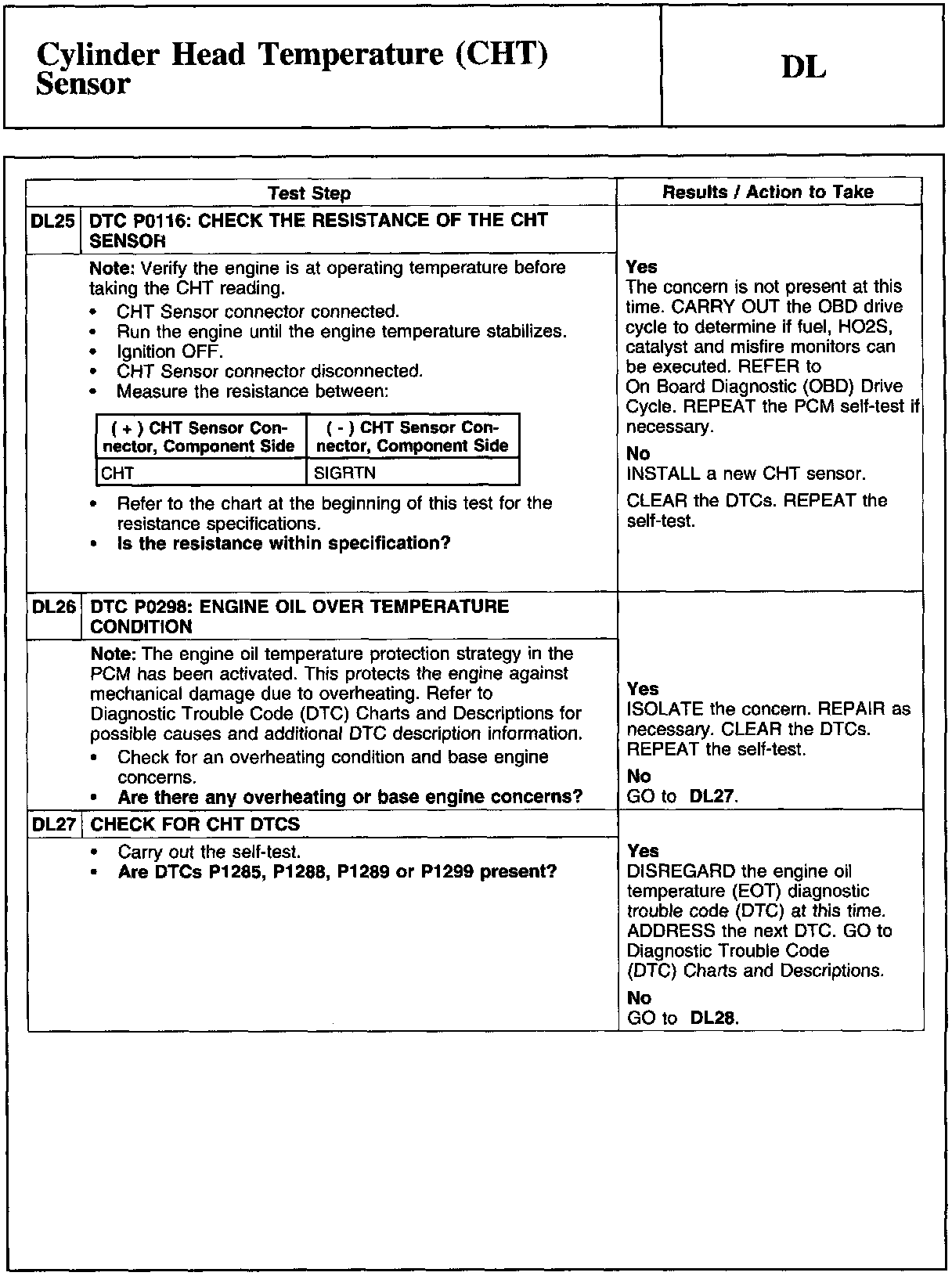

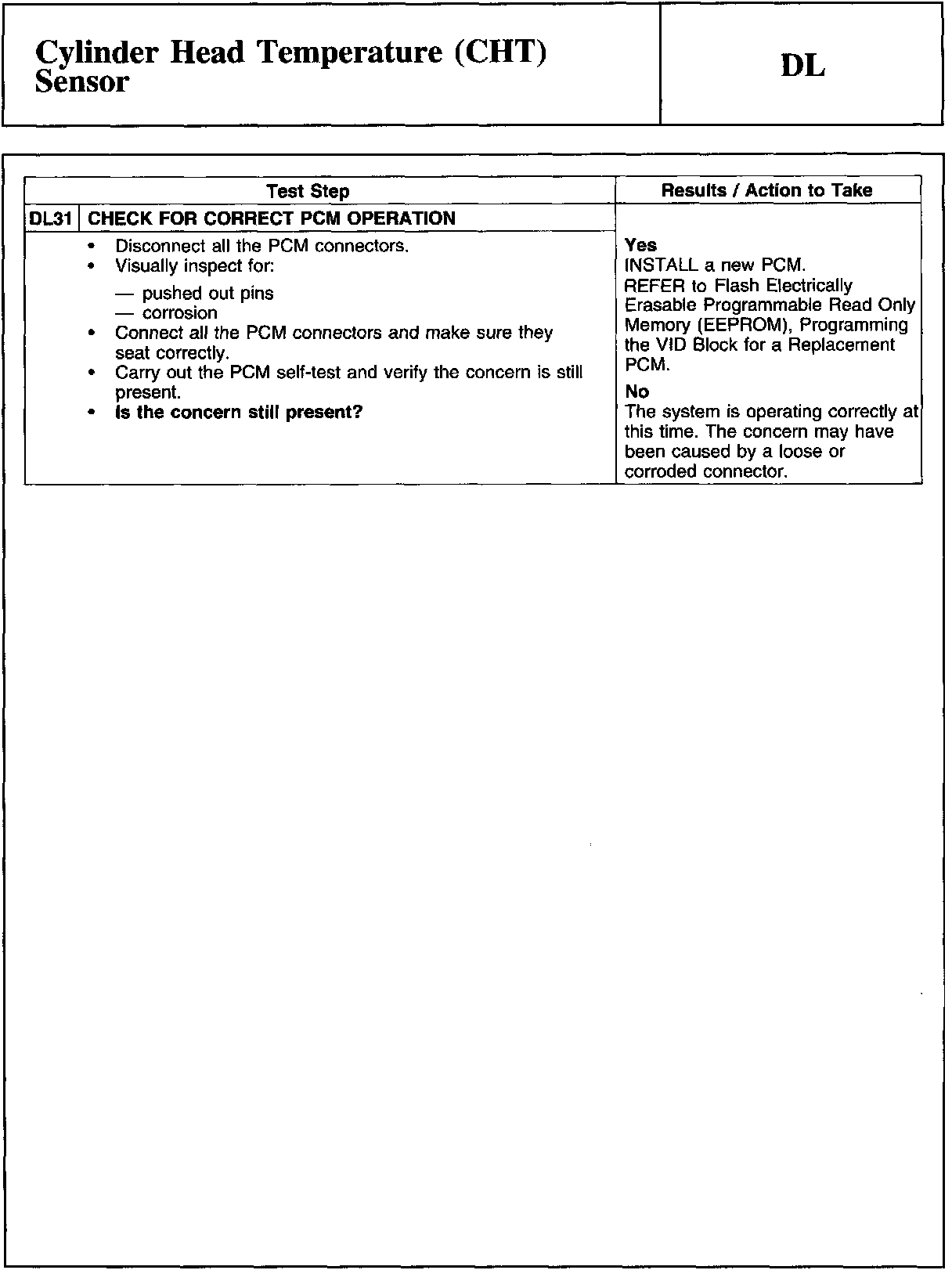

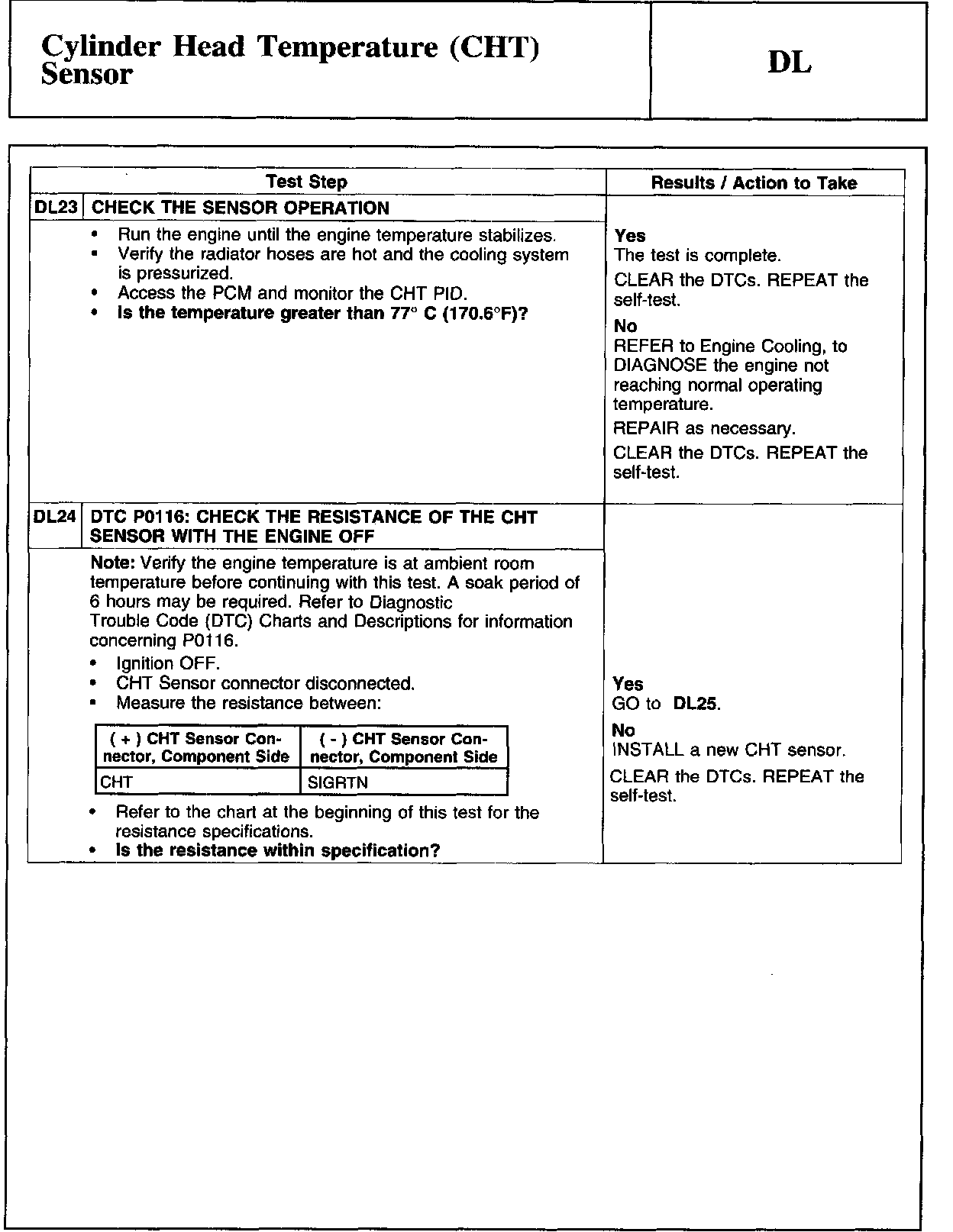

DL1-DL3:

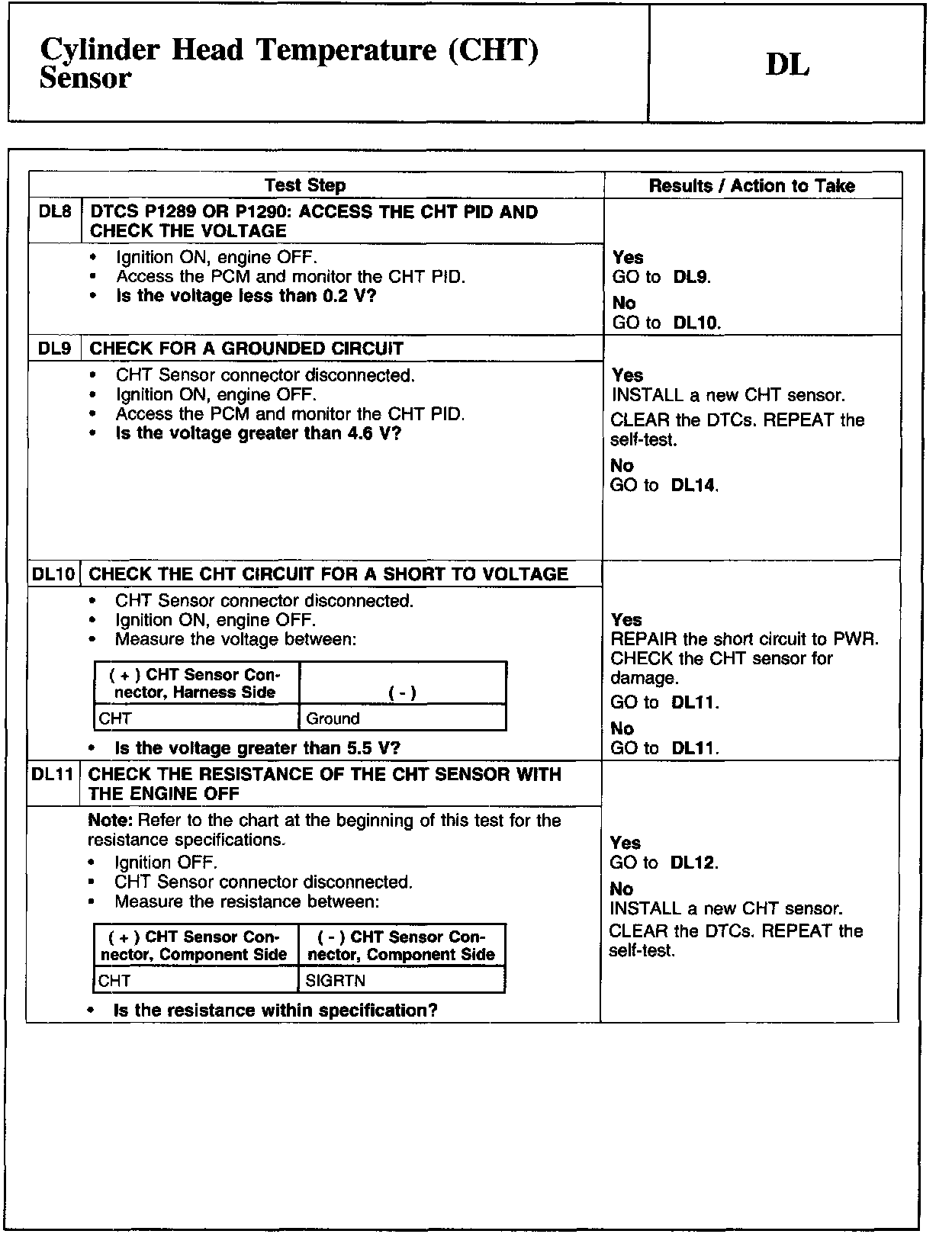

DL4-DL7:





DL8-DL11:

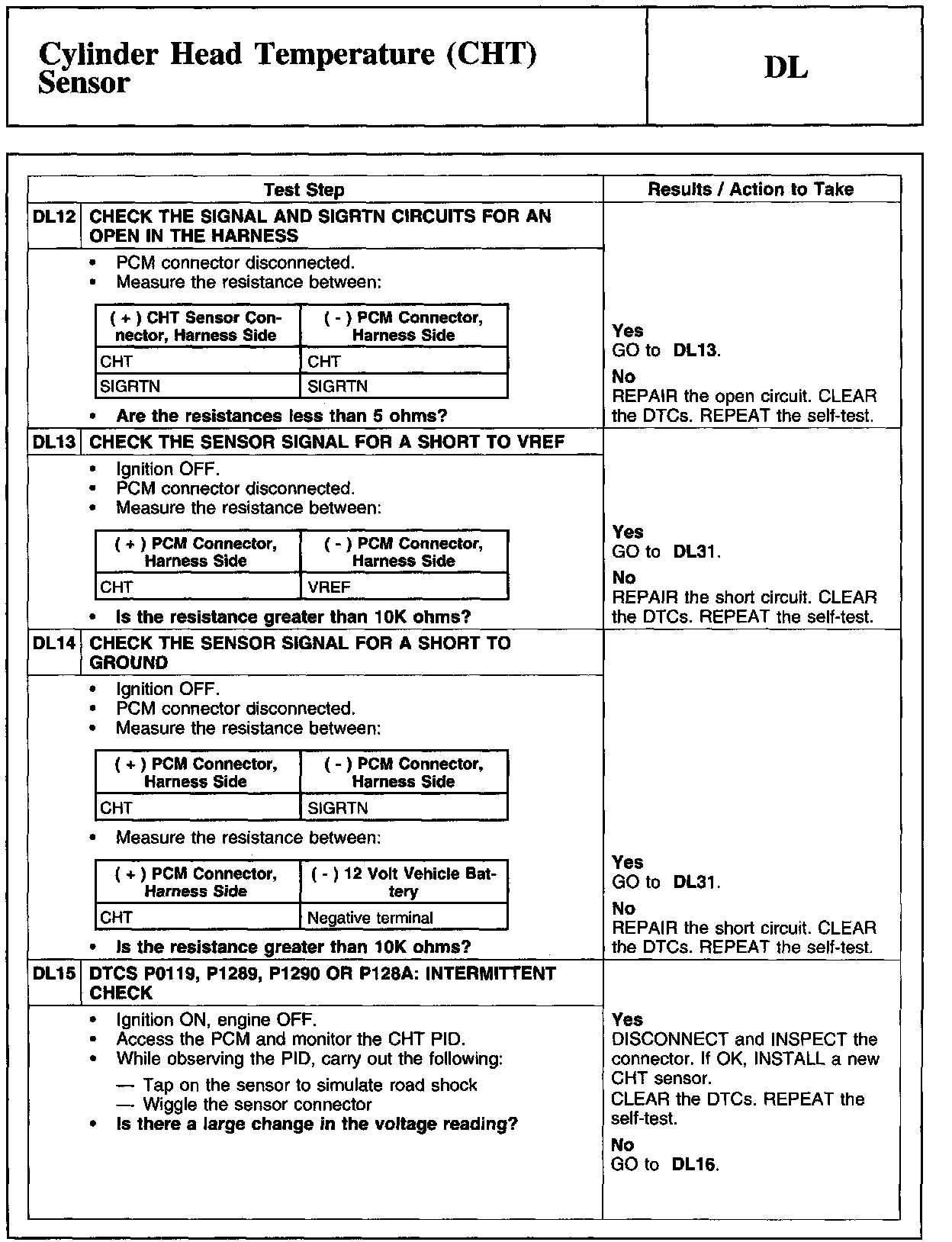

DL12-DL15:





DL16-DL19:

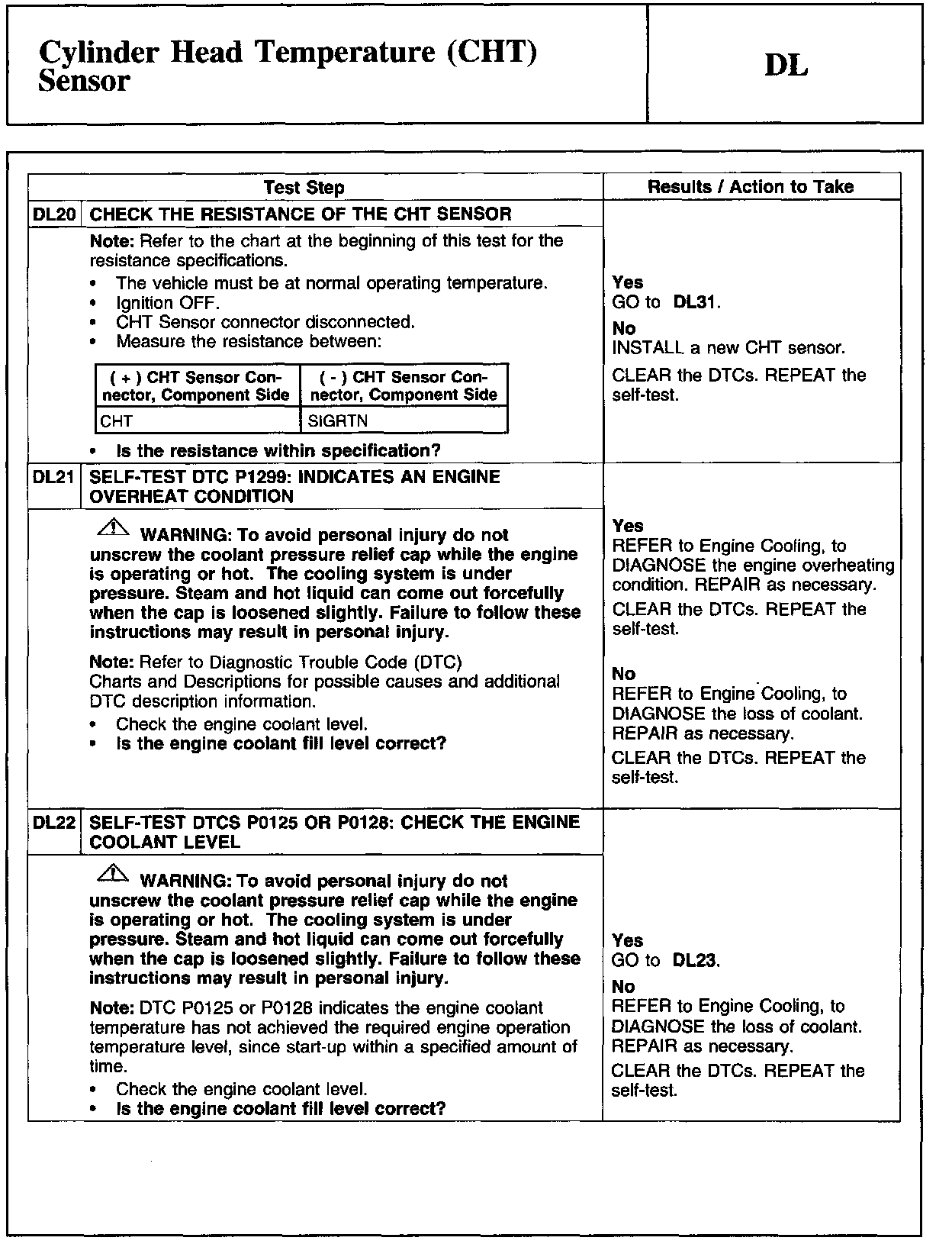

DL20-DL22:





DL23-DL24:





DL25-DL27:





DL28-DL30:





DL31:
