DD - Fuel Rail Pressure Temperature (FRPT) Sensor
PINPOINT TEST DD:
FUEL RAIL
PRESSURE TEMPERATURE (FRPT) SENSOR

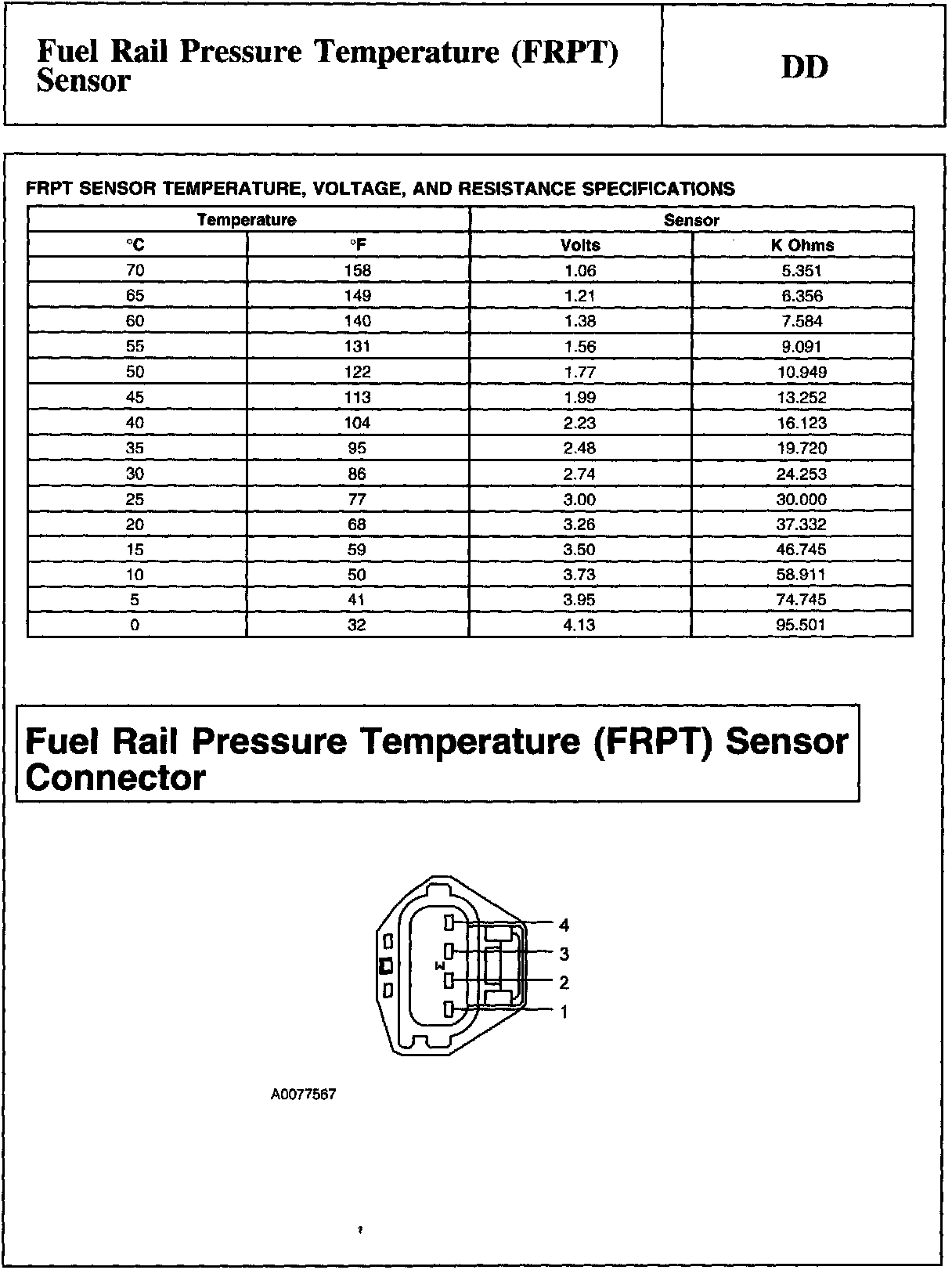

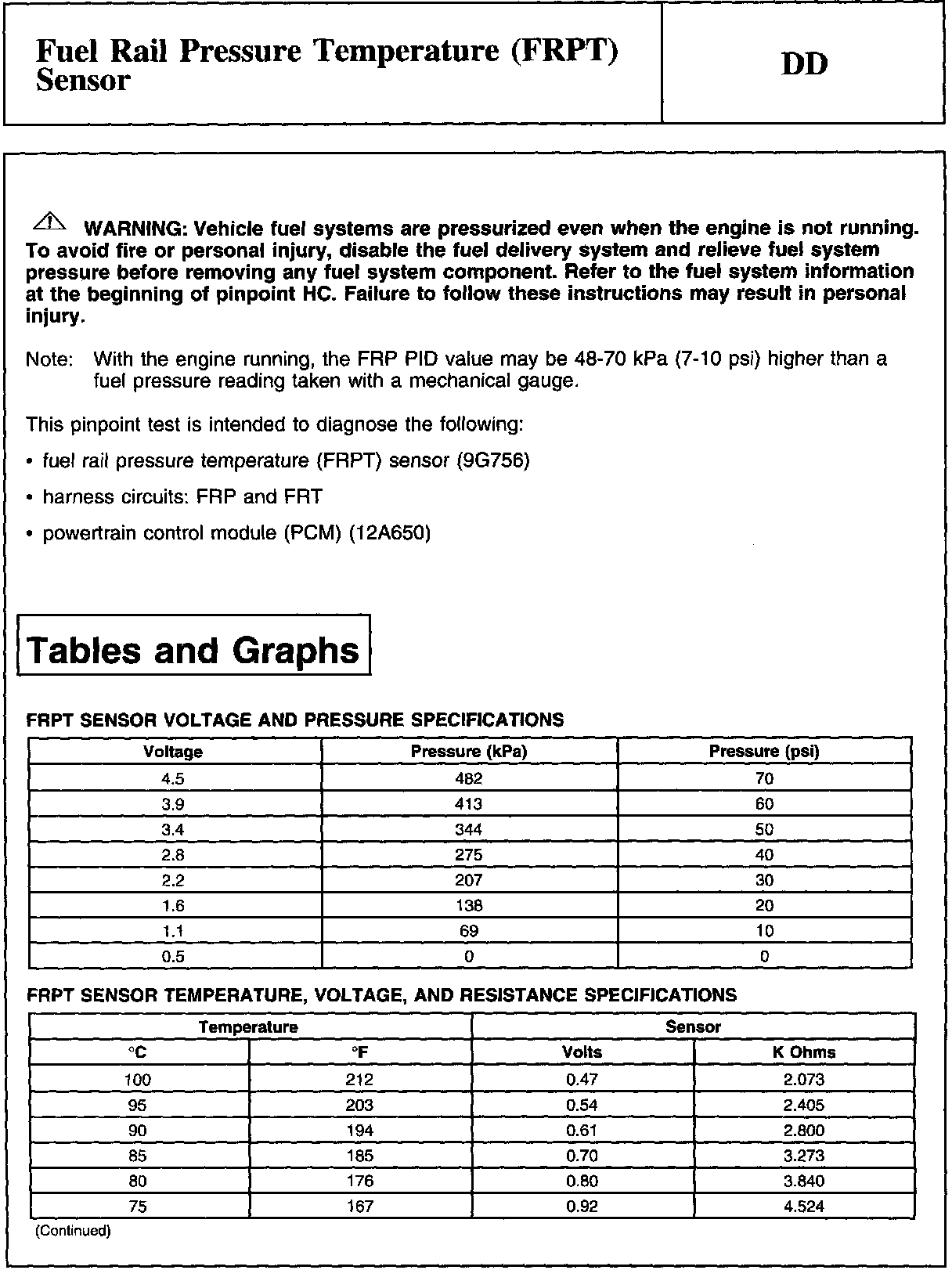

WARNING And Tables And Graphs:
Fuel Rail Pressure Temperature Sensor Connector:

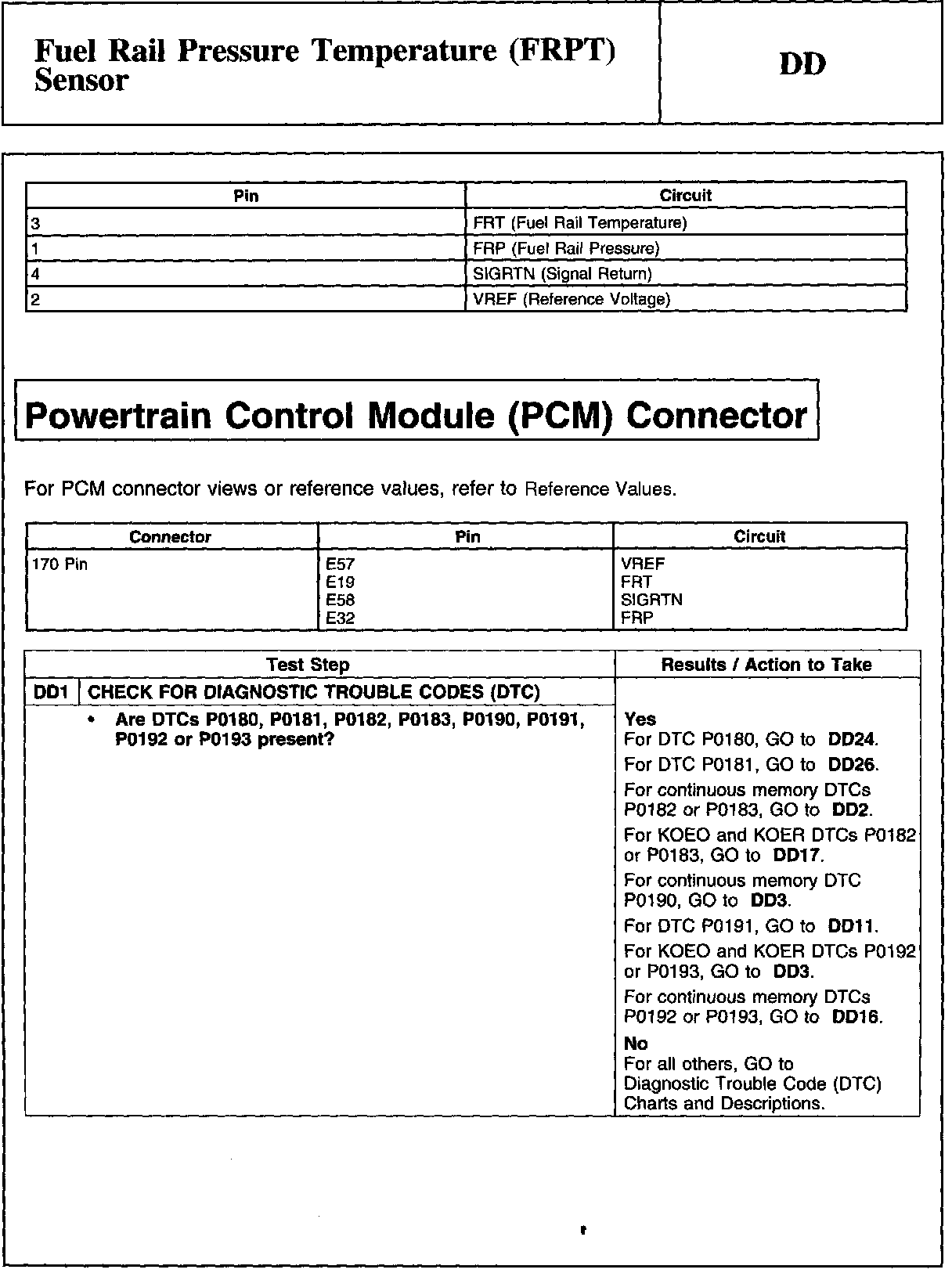

DD1:

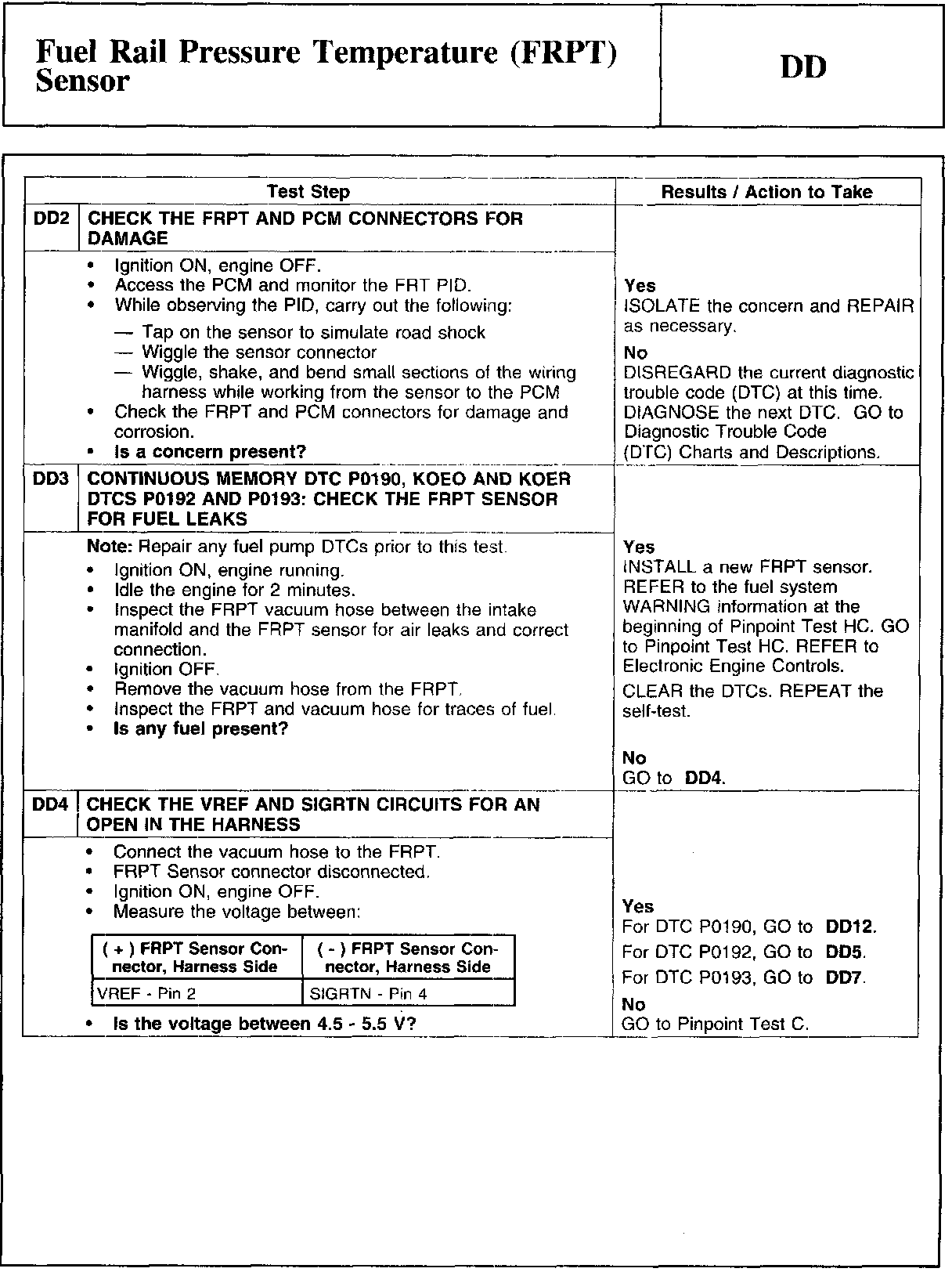

DD2-DD4:

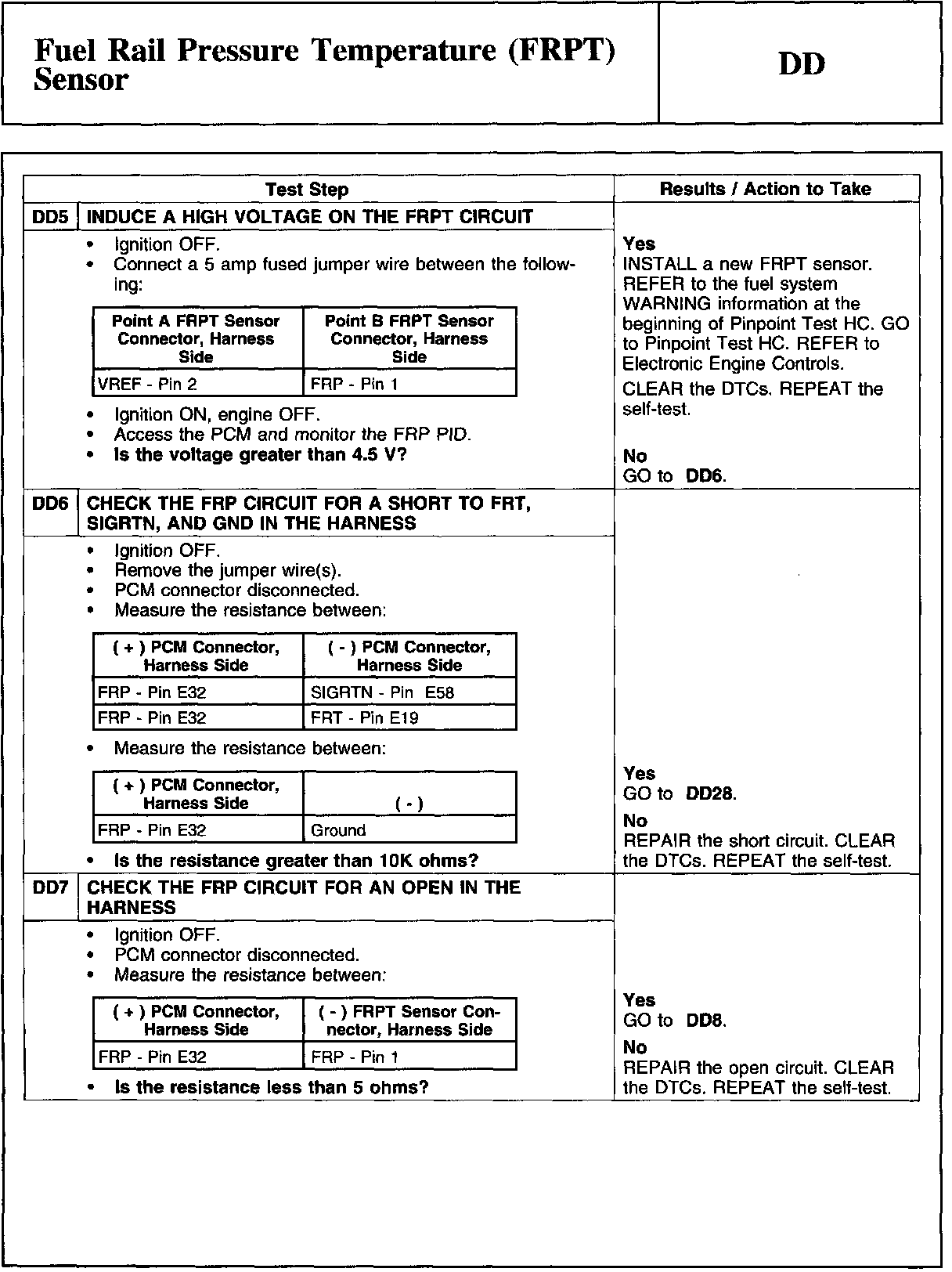

DD5-DD7:

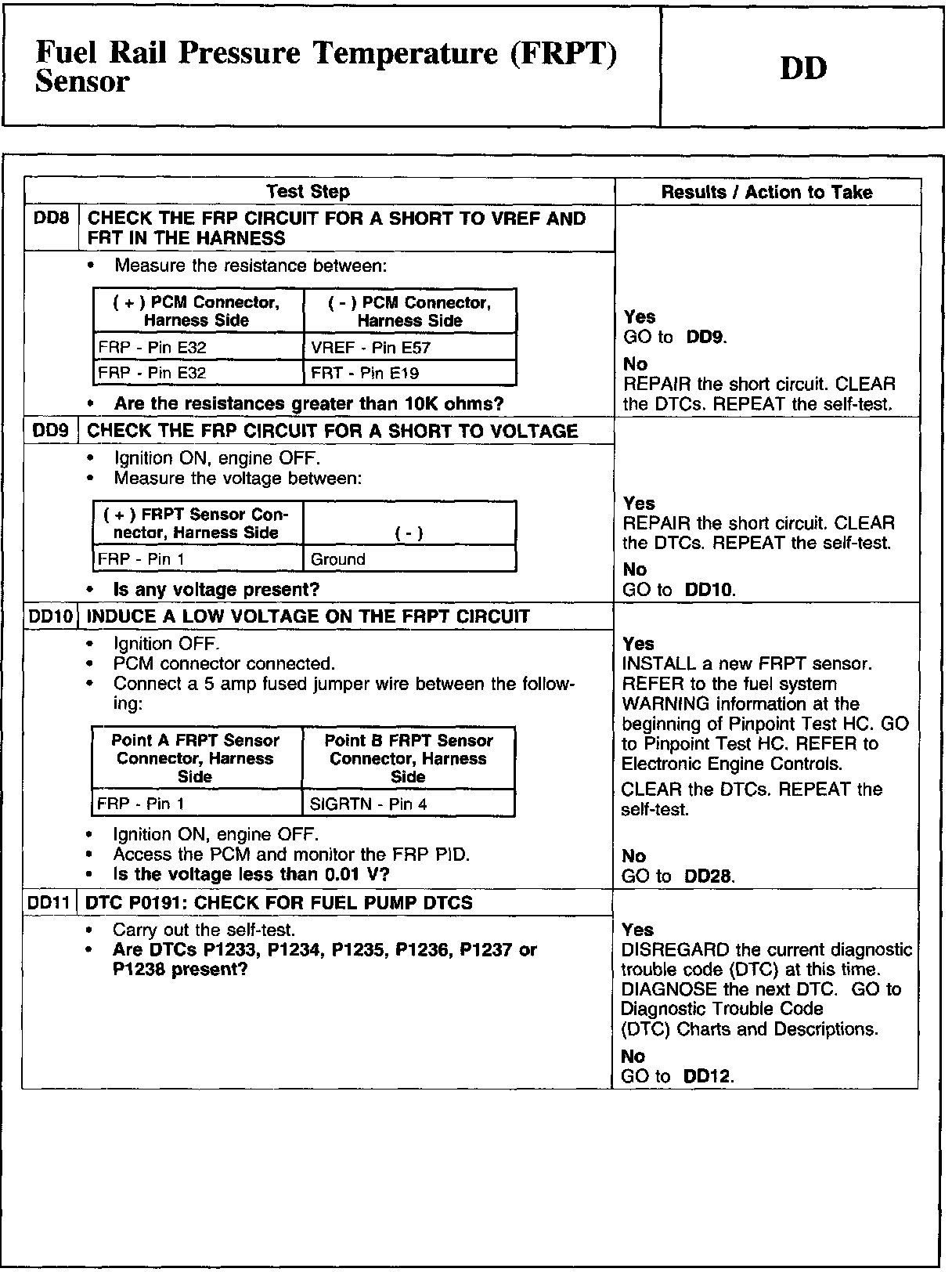

DD8-DD11:

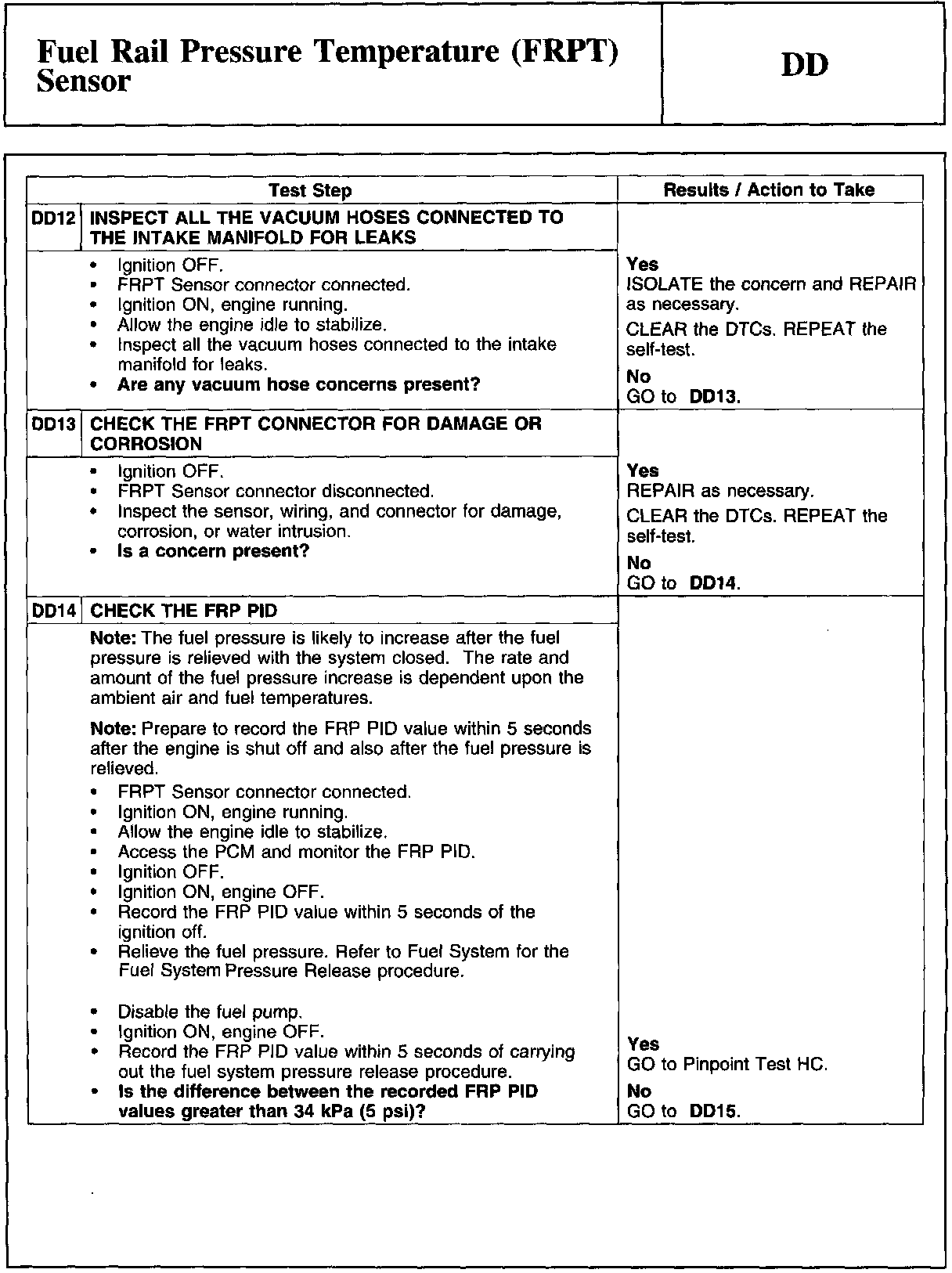

DD12-DD14:

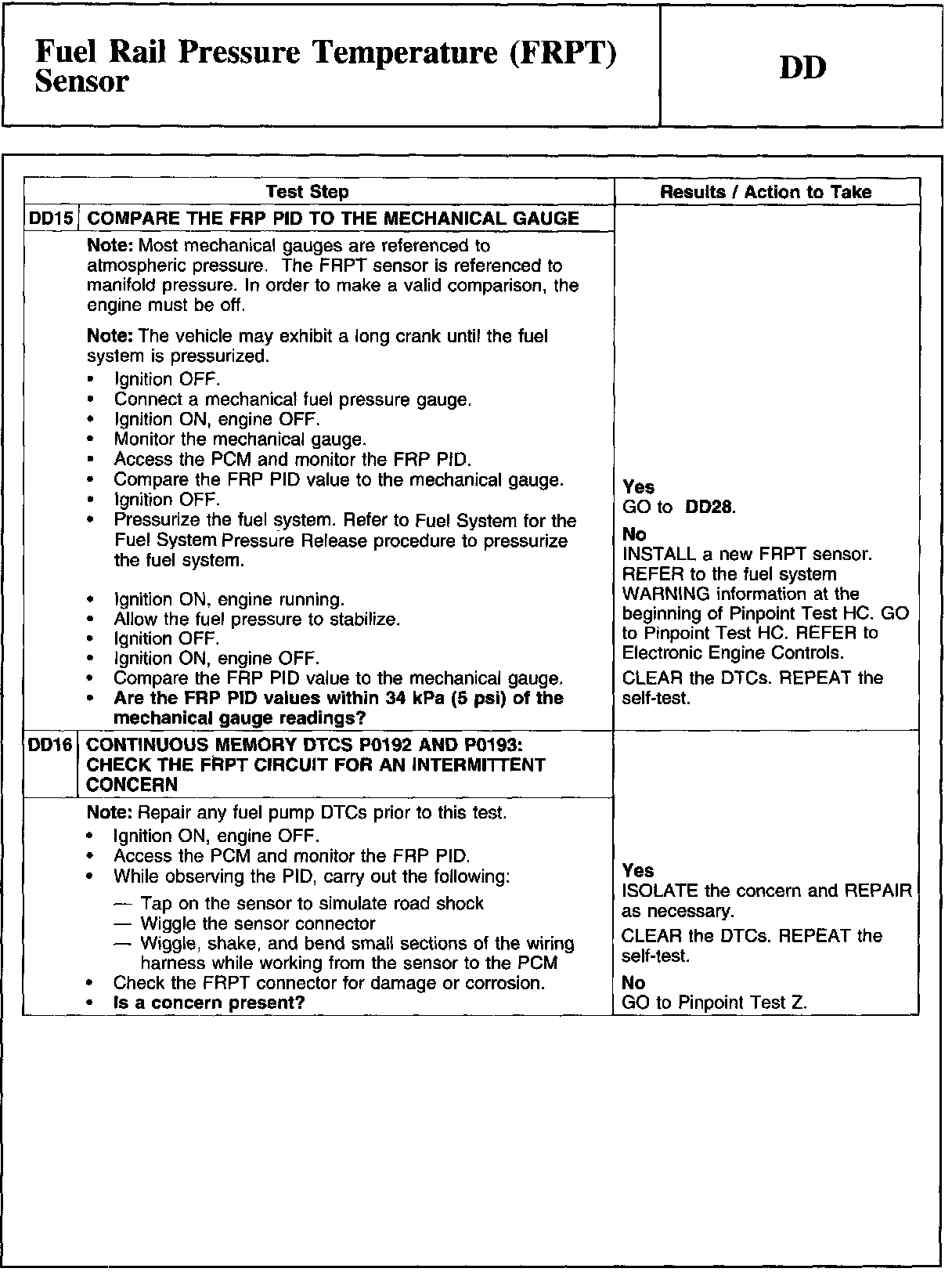

DD15-DD16:

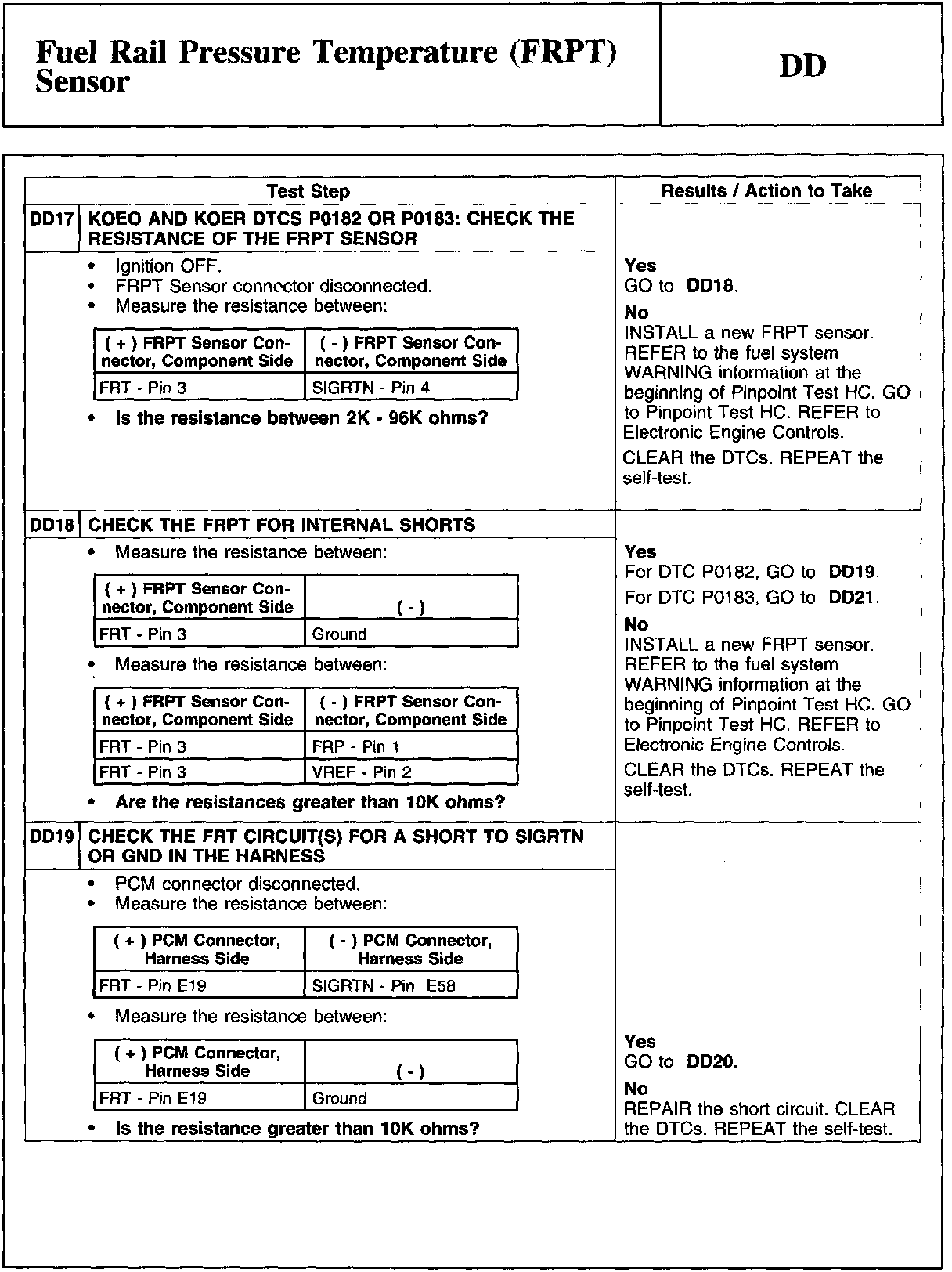

DD17-DD19:

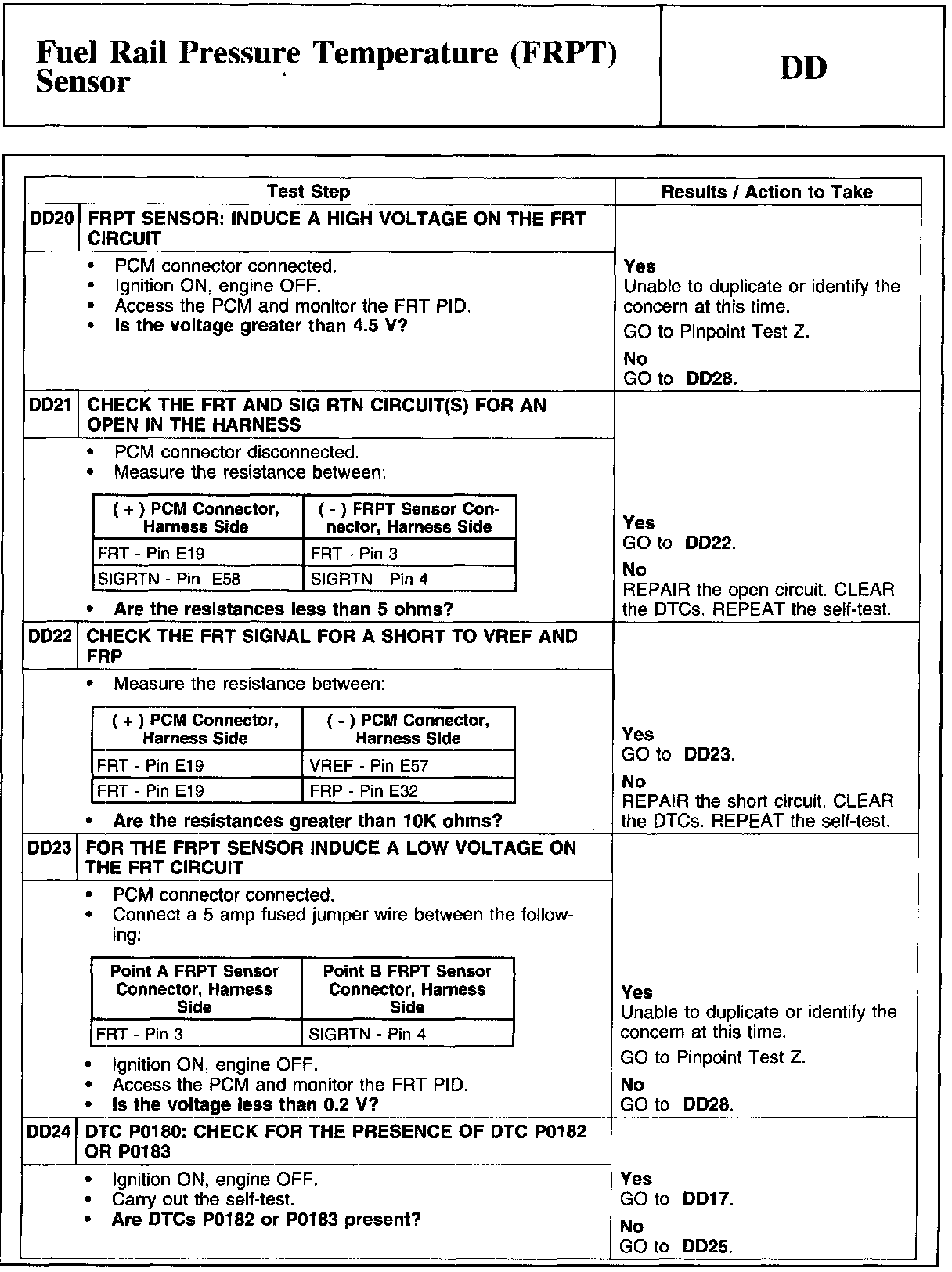

DD20-DD24:

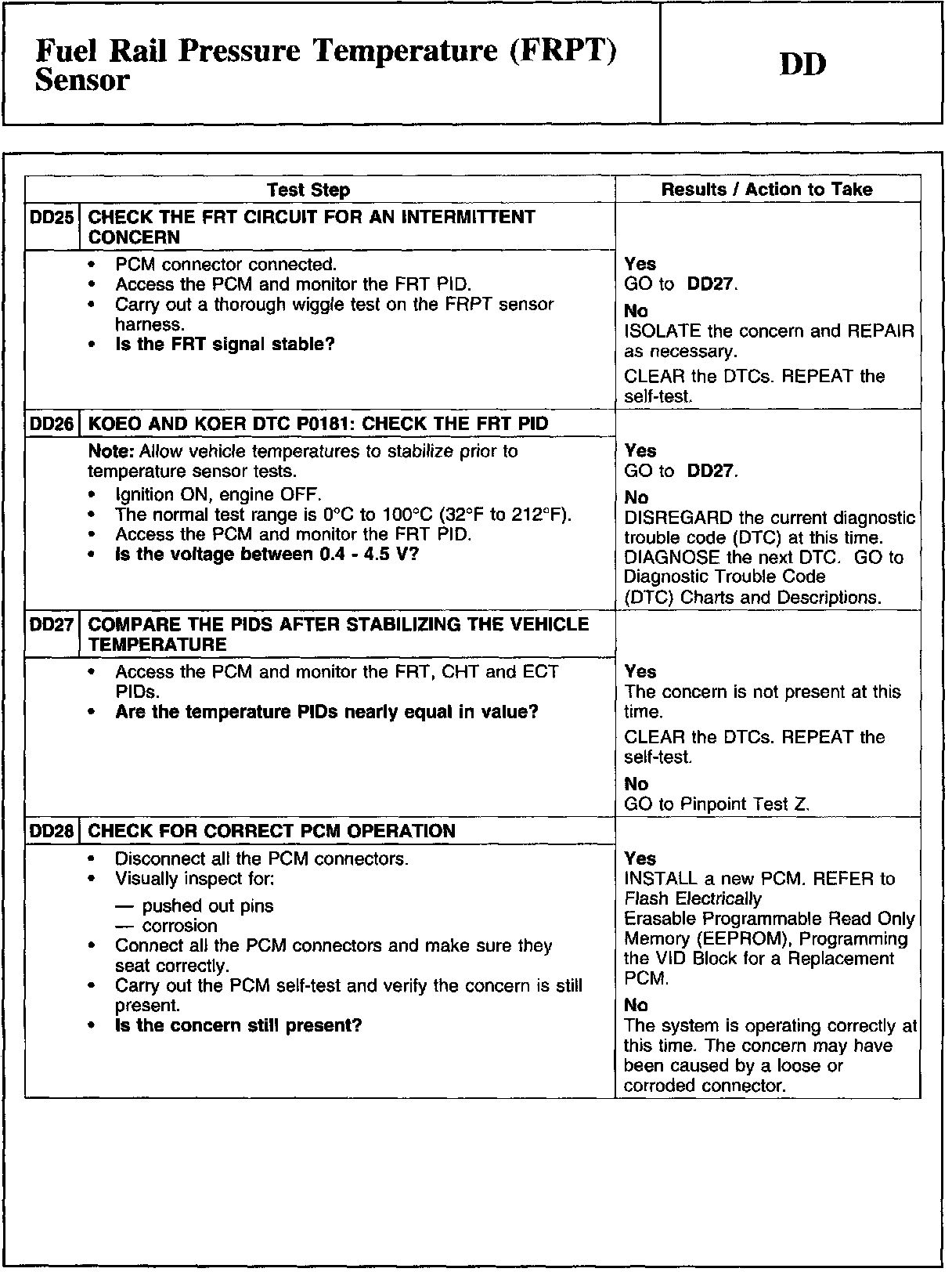

DD25-DD28:
