Smart Junction Box (SJB) DTC Chart




Diagnostic Trouble Code (DTC) Chart

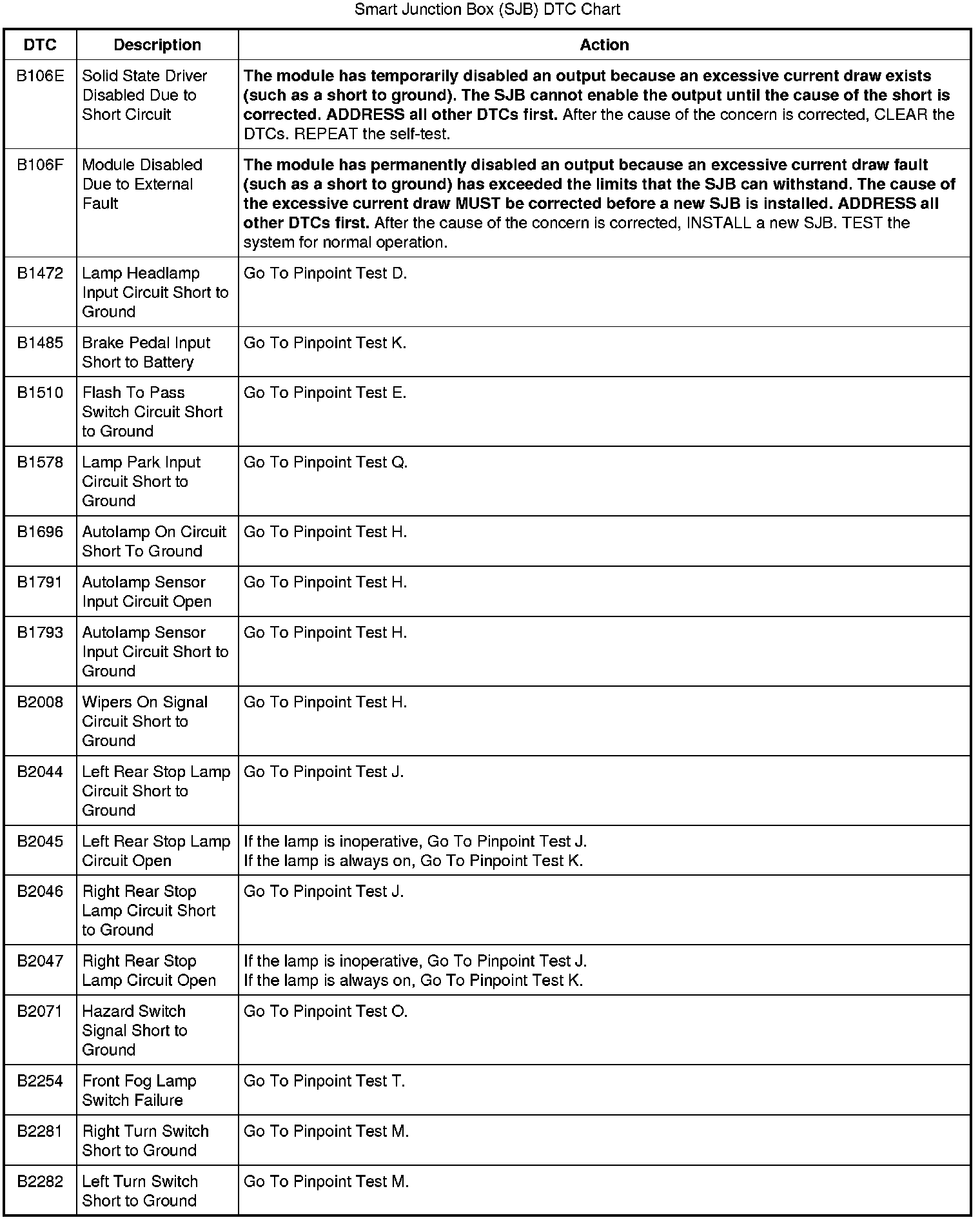

B106E-B2282:

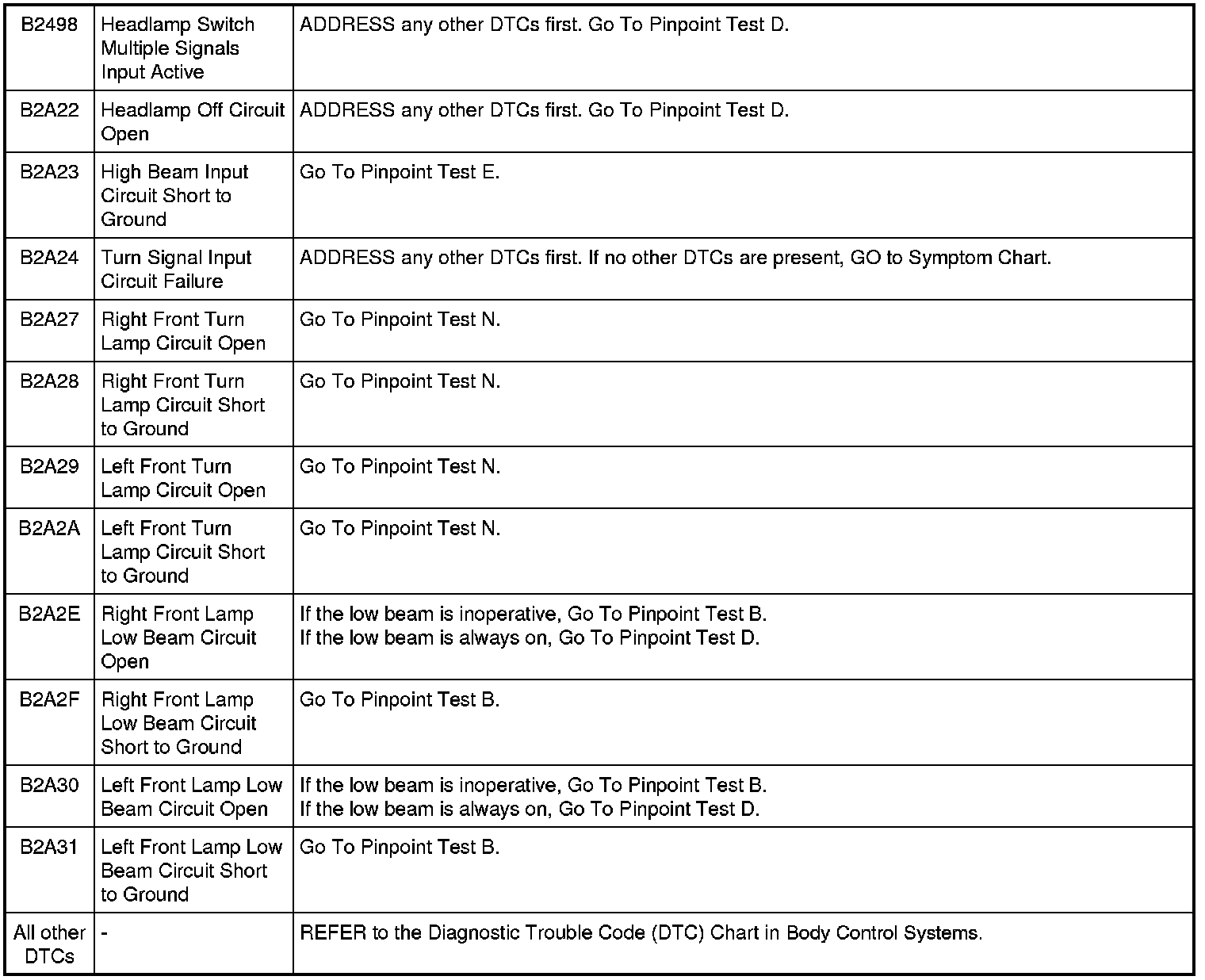

B2A2A-B2498:
