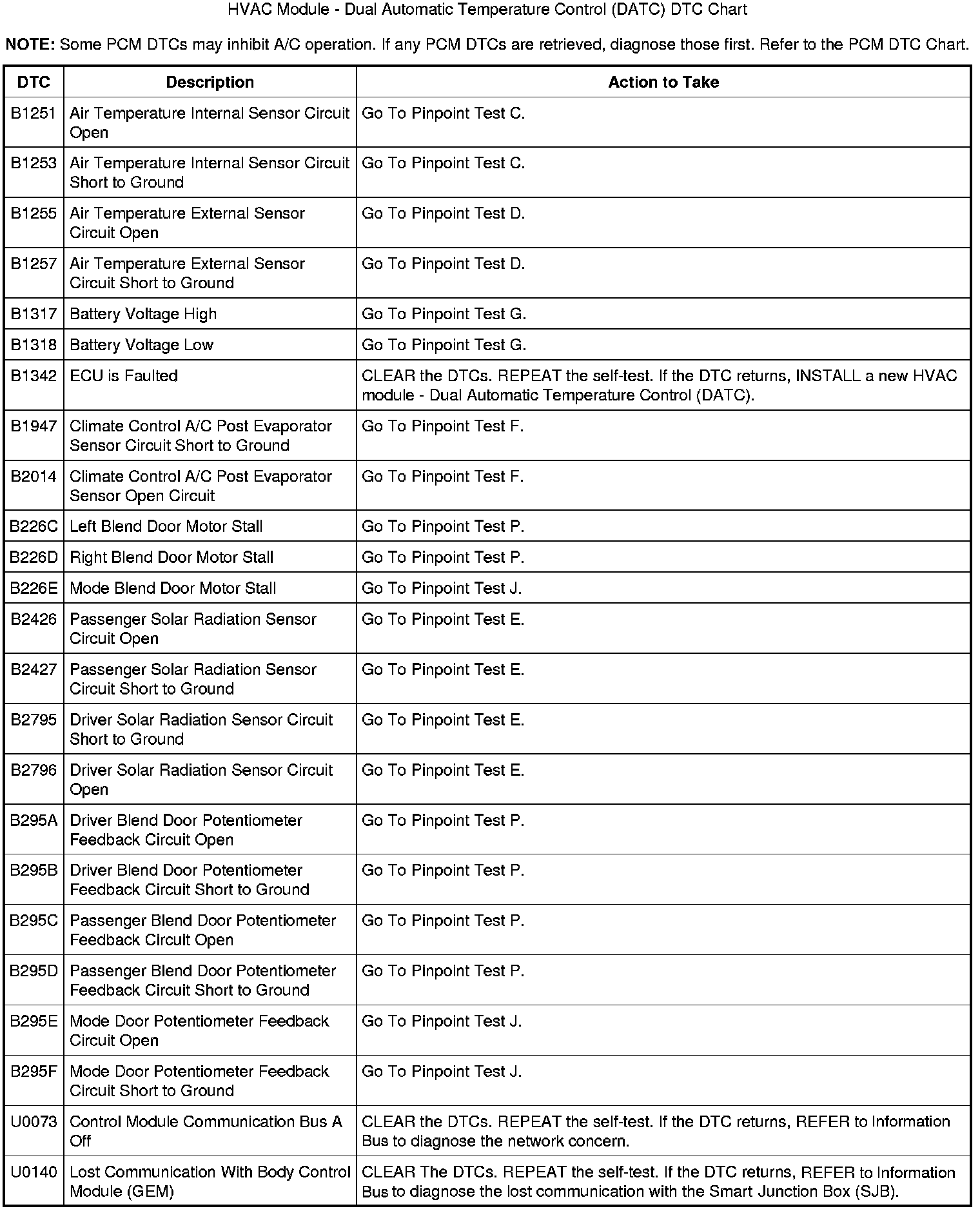

HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart




Climate Control System


DTC Charts

B226C-B2796 / U0073-U0140:





U0155-U2051:
