Utility Storage Compartment: Service and Repair




Instrument Panel - Exploded View

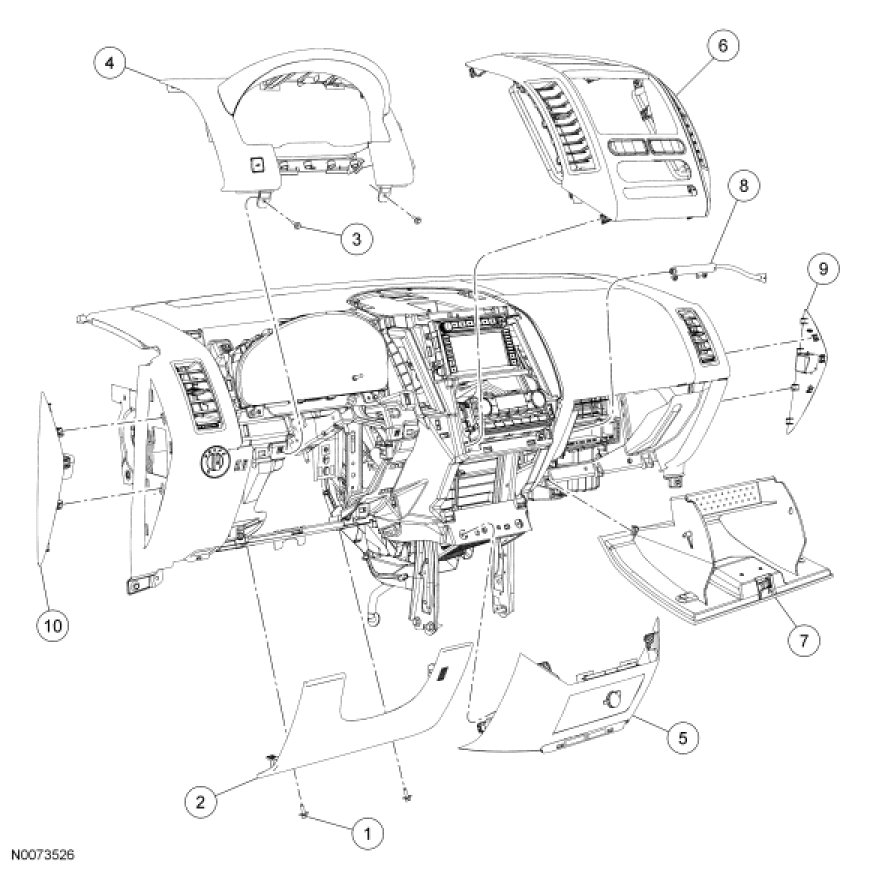

Edge Instrument Panel

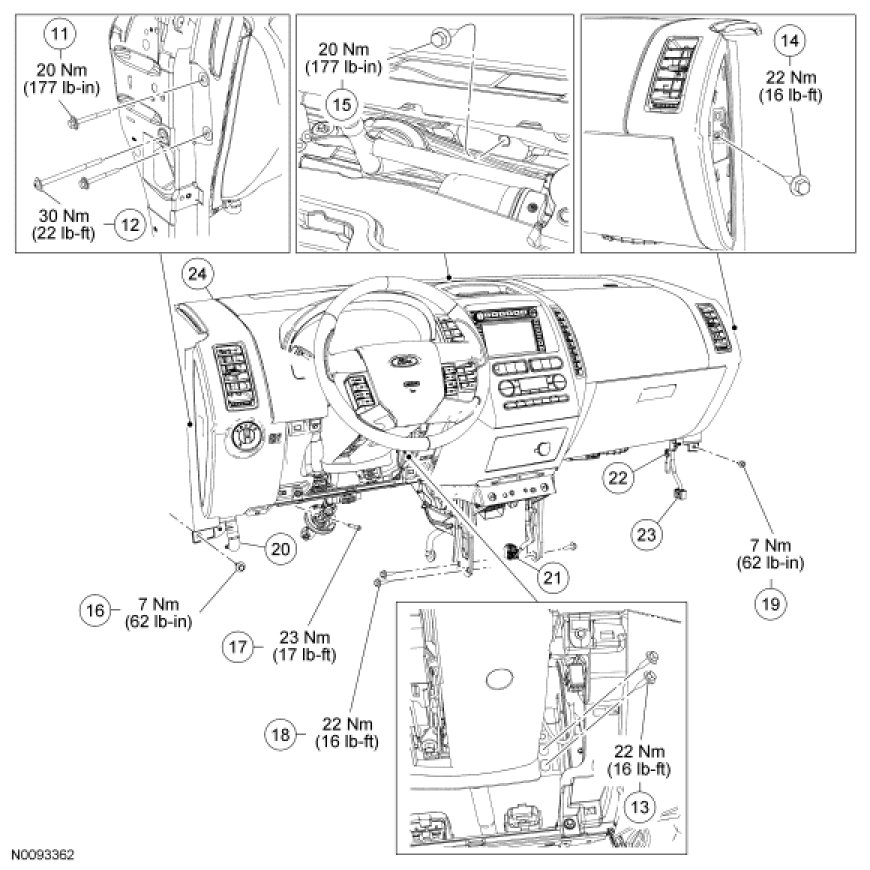

Edge Instrument Panel (continued)

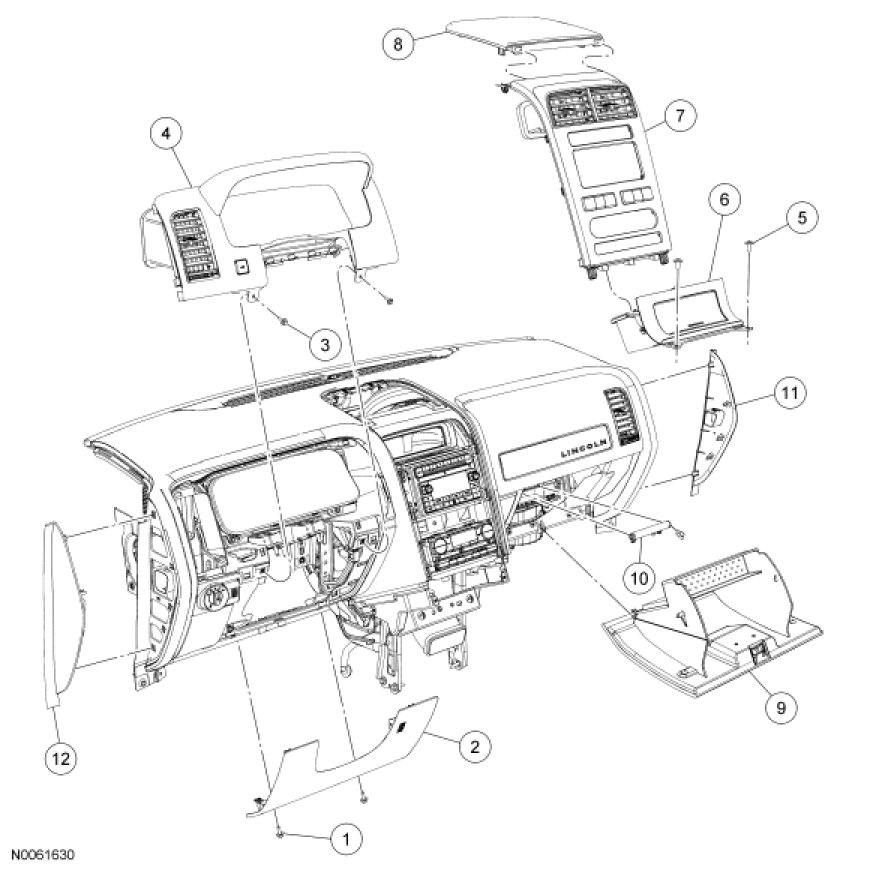

MKX Instrument Panel

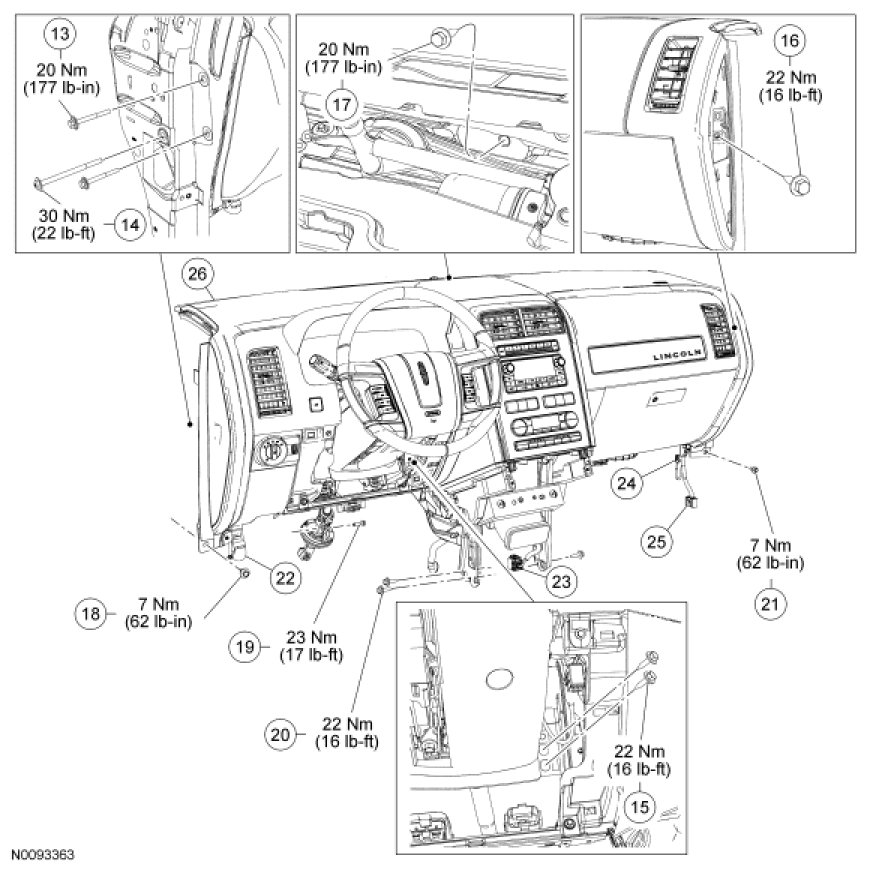

MKX Instrument Panel (continued)









1. For additional information, refer to the procedures.
