Console - Overhead




Console - Overhead

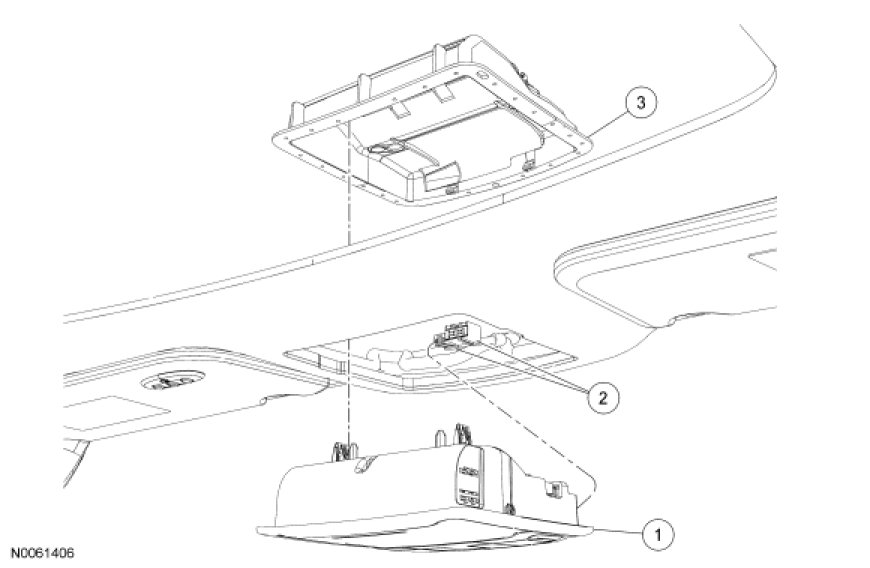

1. Remove the overhead console.
- Pull downward on the overhead console.

- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
