Console Lamp Switch: Service and Repair

Ambient Lighting Switch

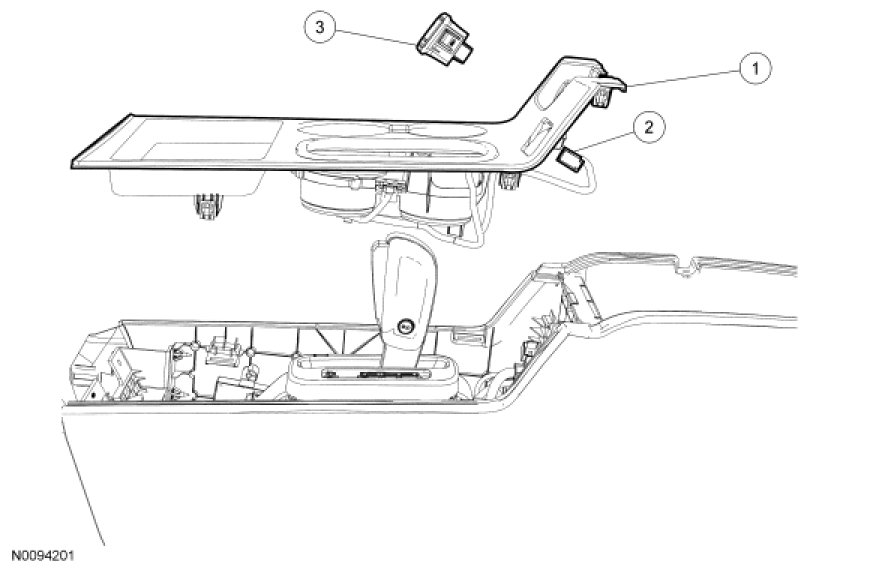

NOTE: Edge shown, MKX similar.










Removal and Installation

1. Open the storage compartment door.

2. Remove the floor console finish panel.
- Pull up on the rear of the floor console finish panel to release the clips.

- Disconnect the electrical connector.

3. Disconnect the ambient lighting switch electrical connector.

4. Squeeze the retaining tabs and remove the ambient lighting switch.

5. To install, reverse the removal procedure.
