Audio Digital Signal Processing (DSP) Module DTC Chart




Information and Entertainment System


DTC Charts

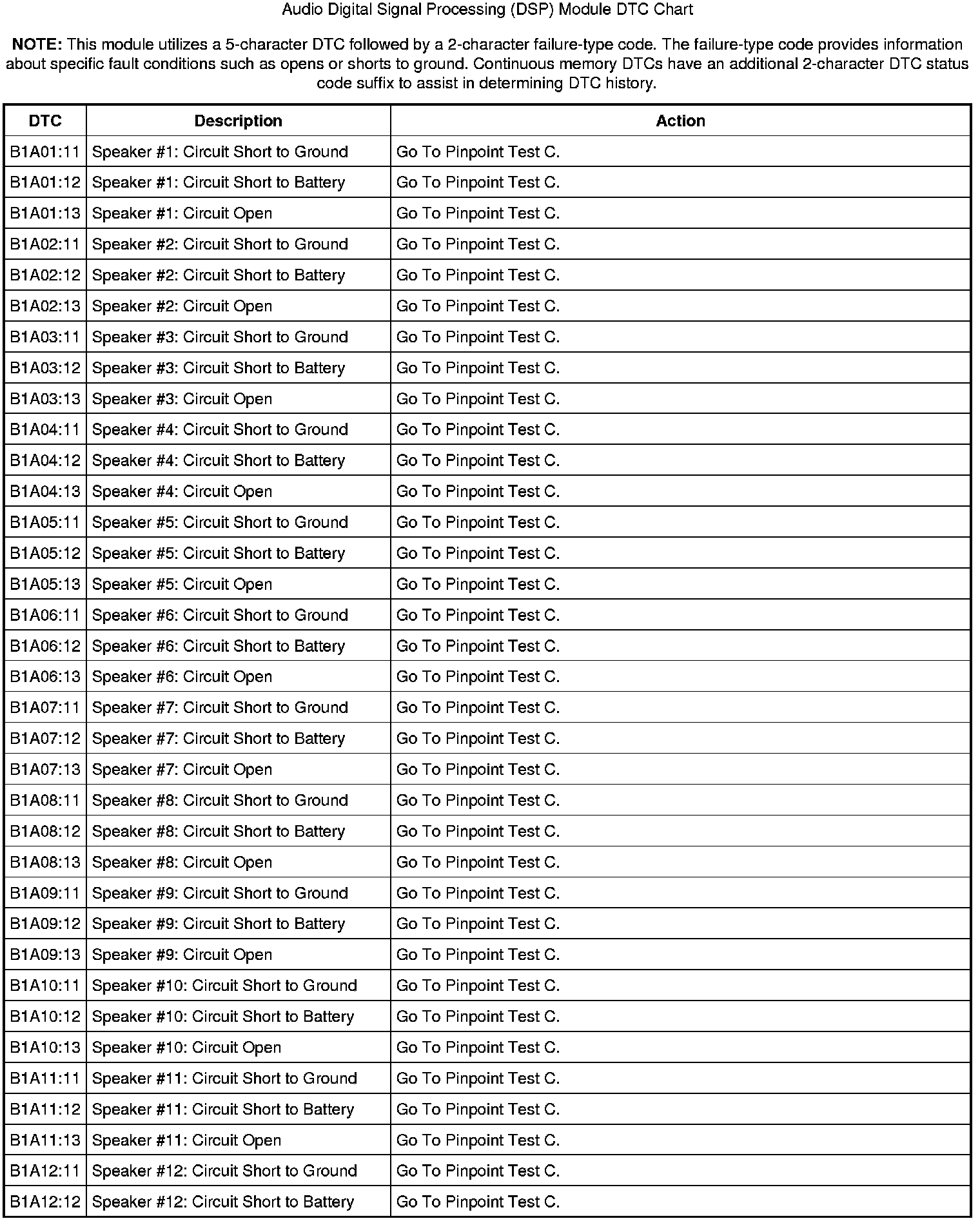

B1A01:11-B1A12:12:

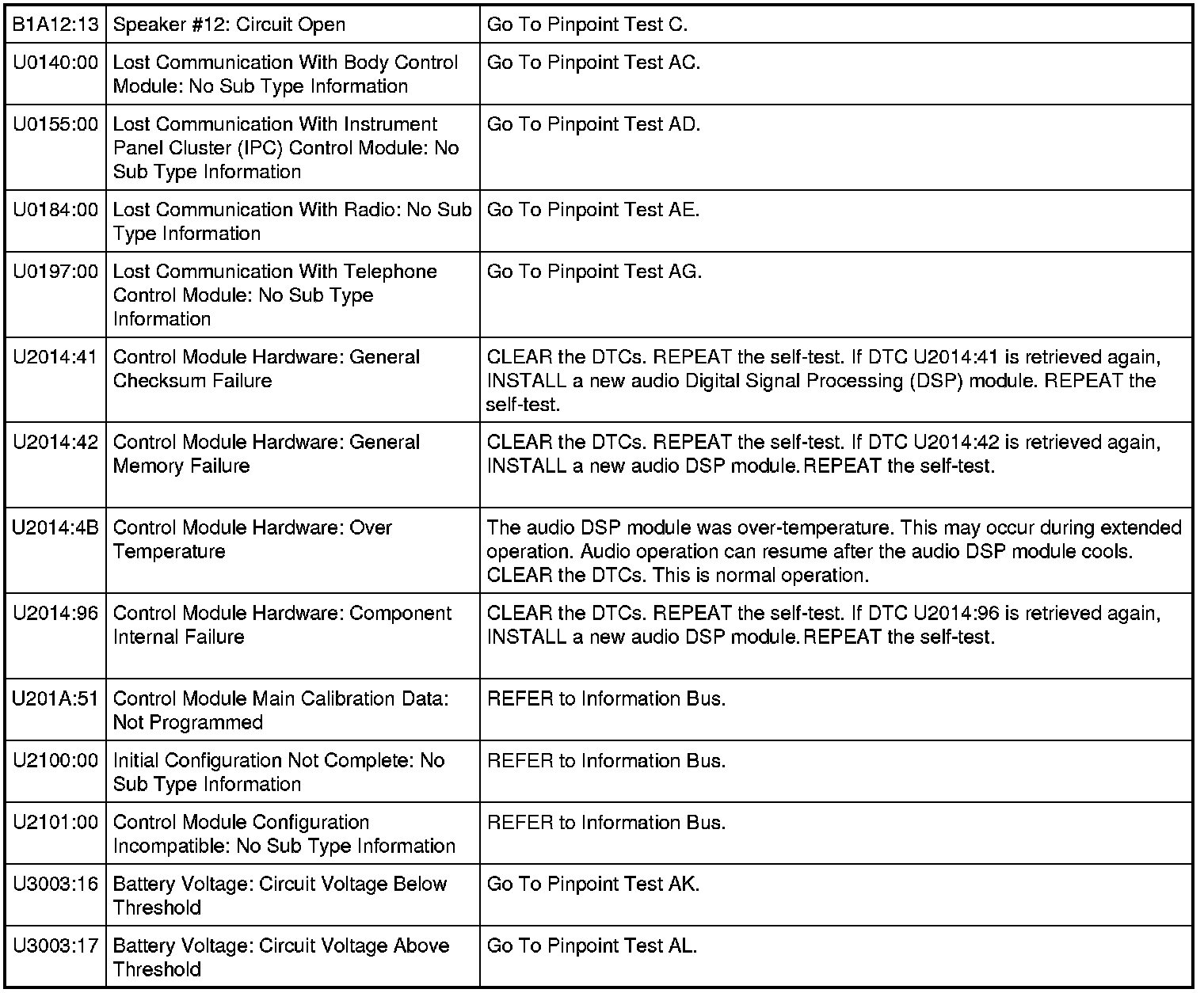

B1A12:13 / U0140:00-U3003:17:
