Audio Control Module (ACM) - With Navigation DTC Chart




Information and Entertainment System

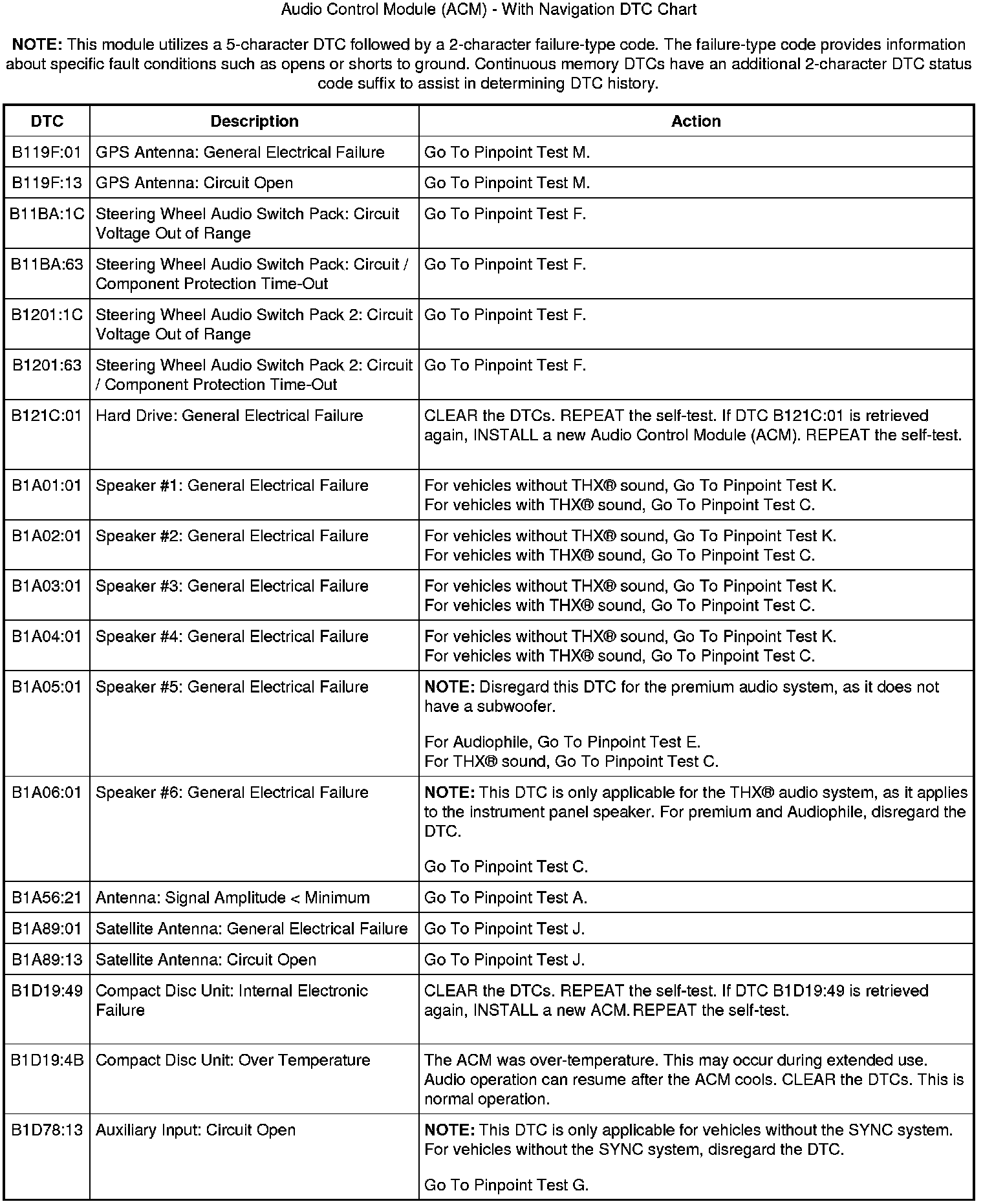

DTC Charts

B1A01:01-B1201:63:

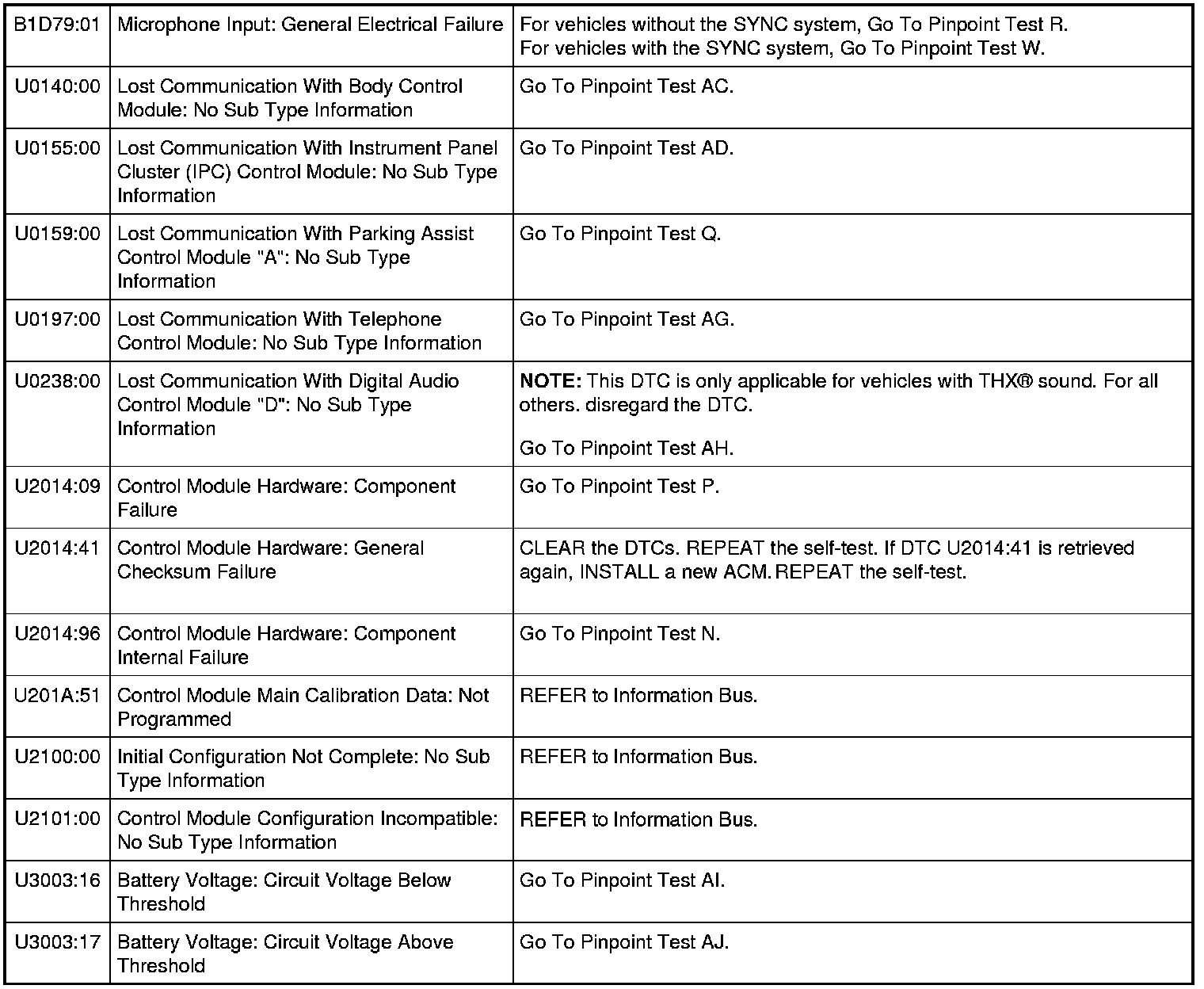

B1D79:01 / U0140:00-U3003:17:
