Parameter Identification (PID)

PARAMETER IDENTIFICATION (PID)

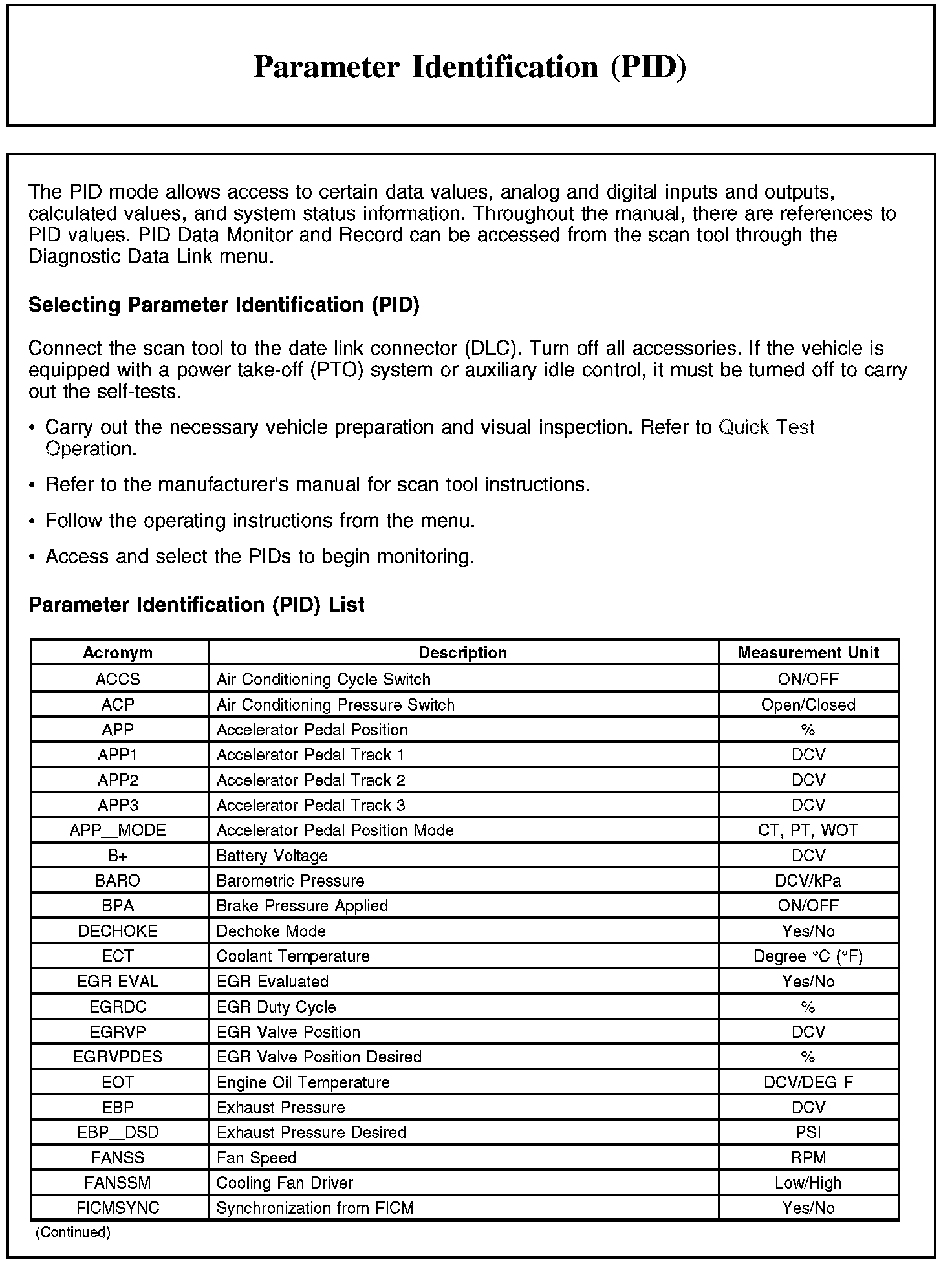

Parameter Identification (PID) (Part 1):

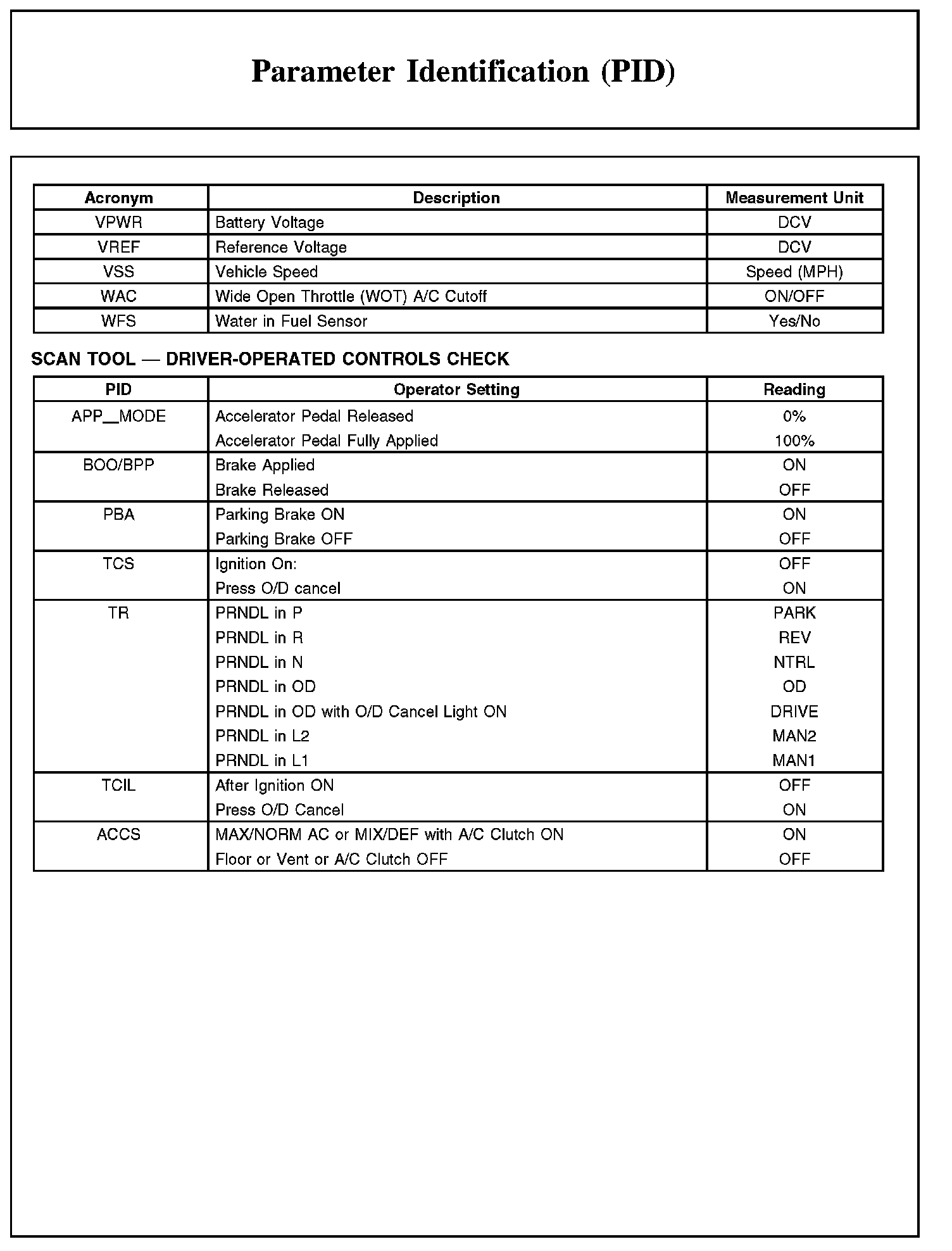

Parameter Identification (PID) (Part 2):

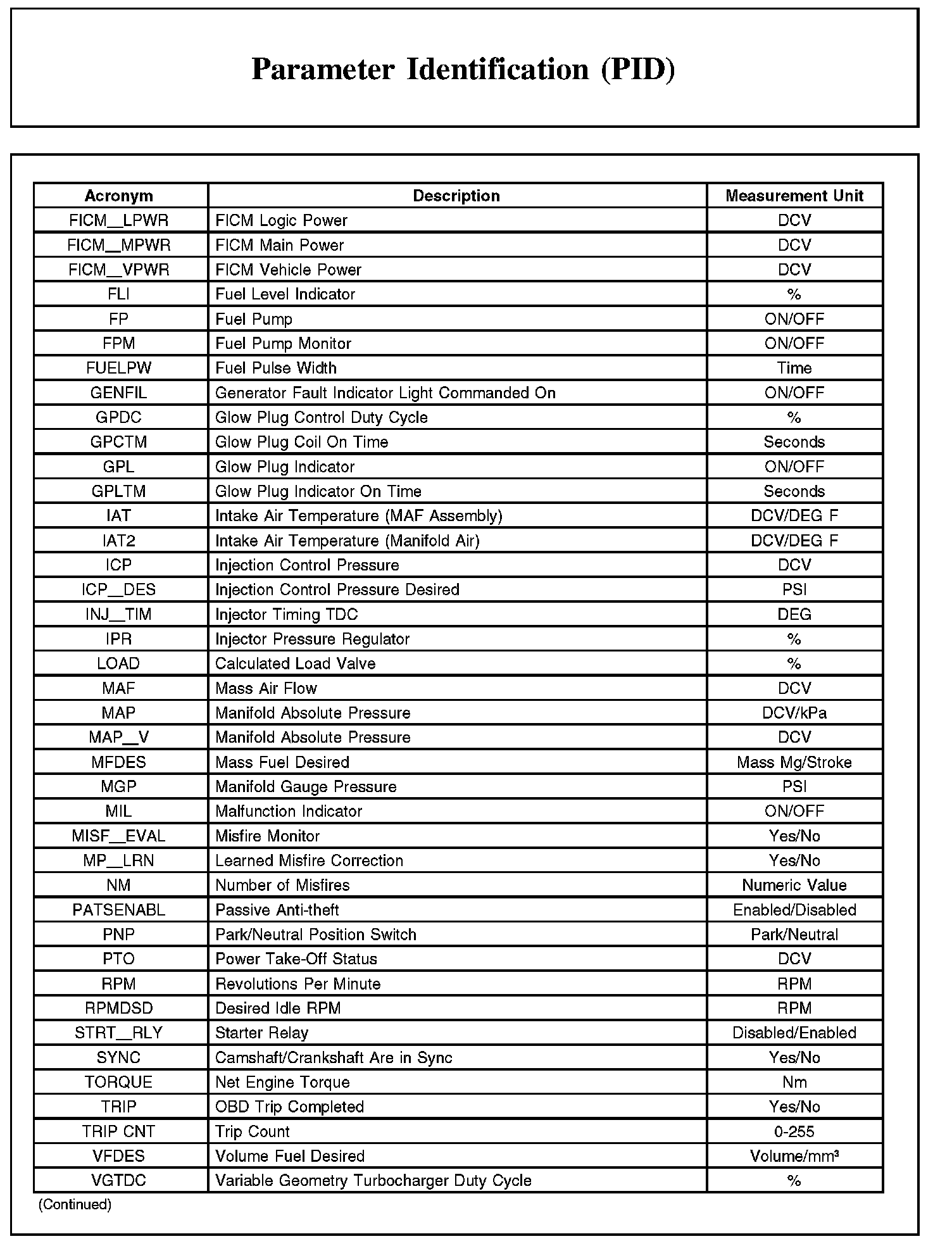

Parameter Identification (PID) (Part 3):
