Typical Diagnostic Reference Values

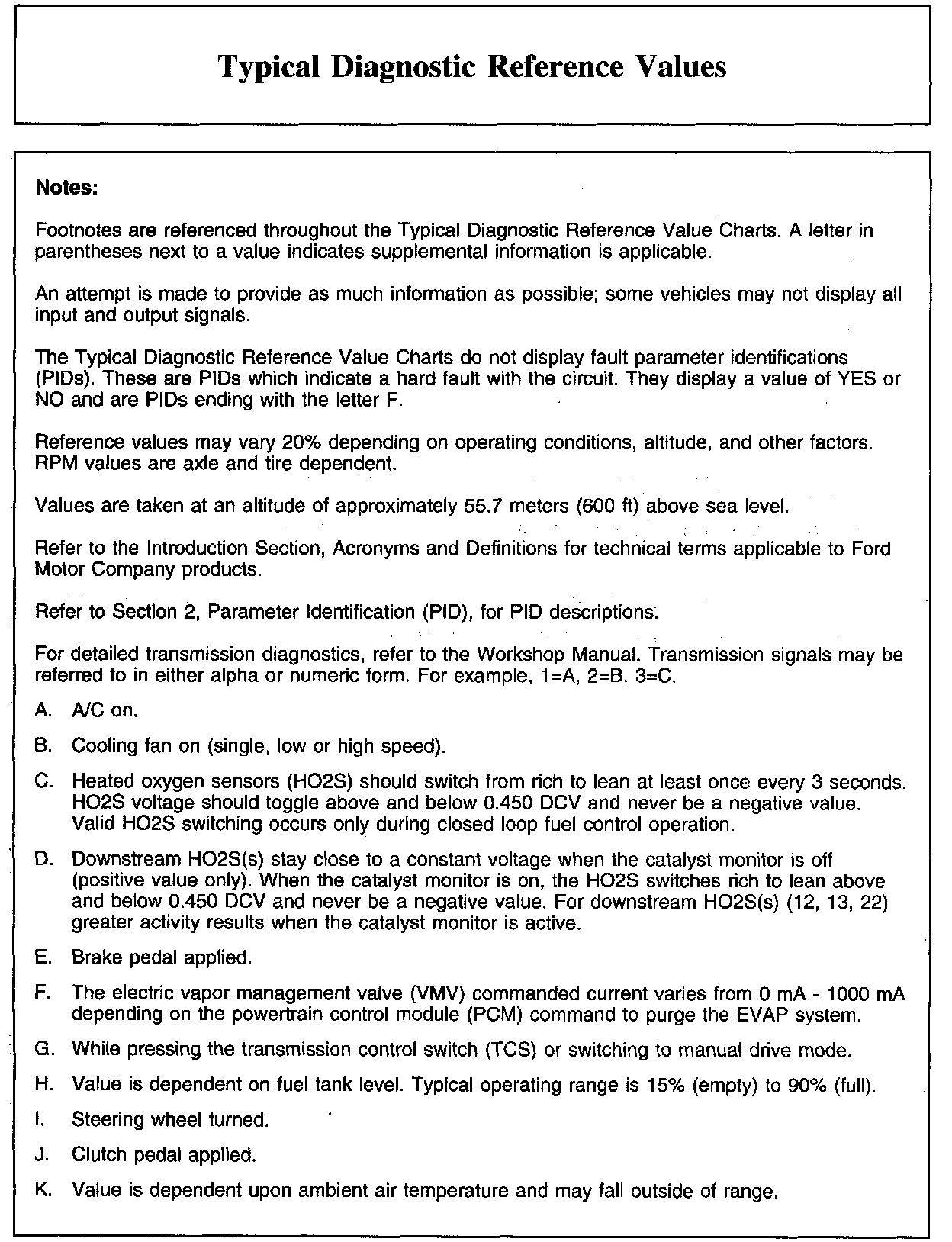

Typical Diagnostic Reference Values Notes (Part 1):

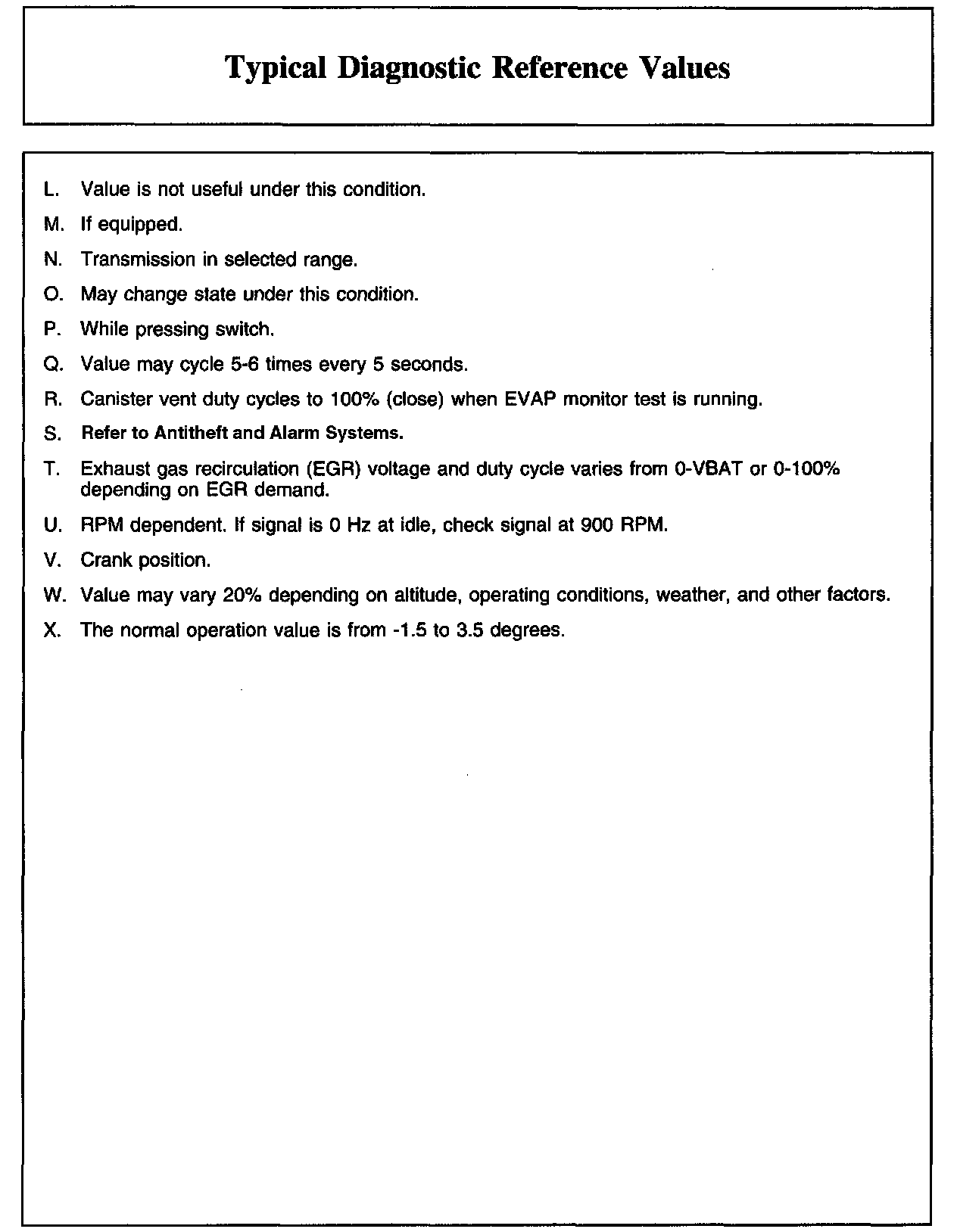

Typical Diagnostic Reference Values Notes (Part 2):

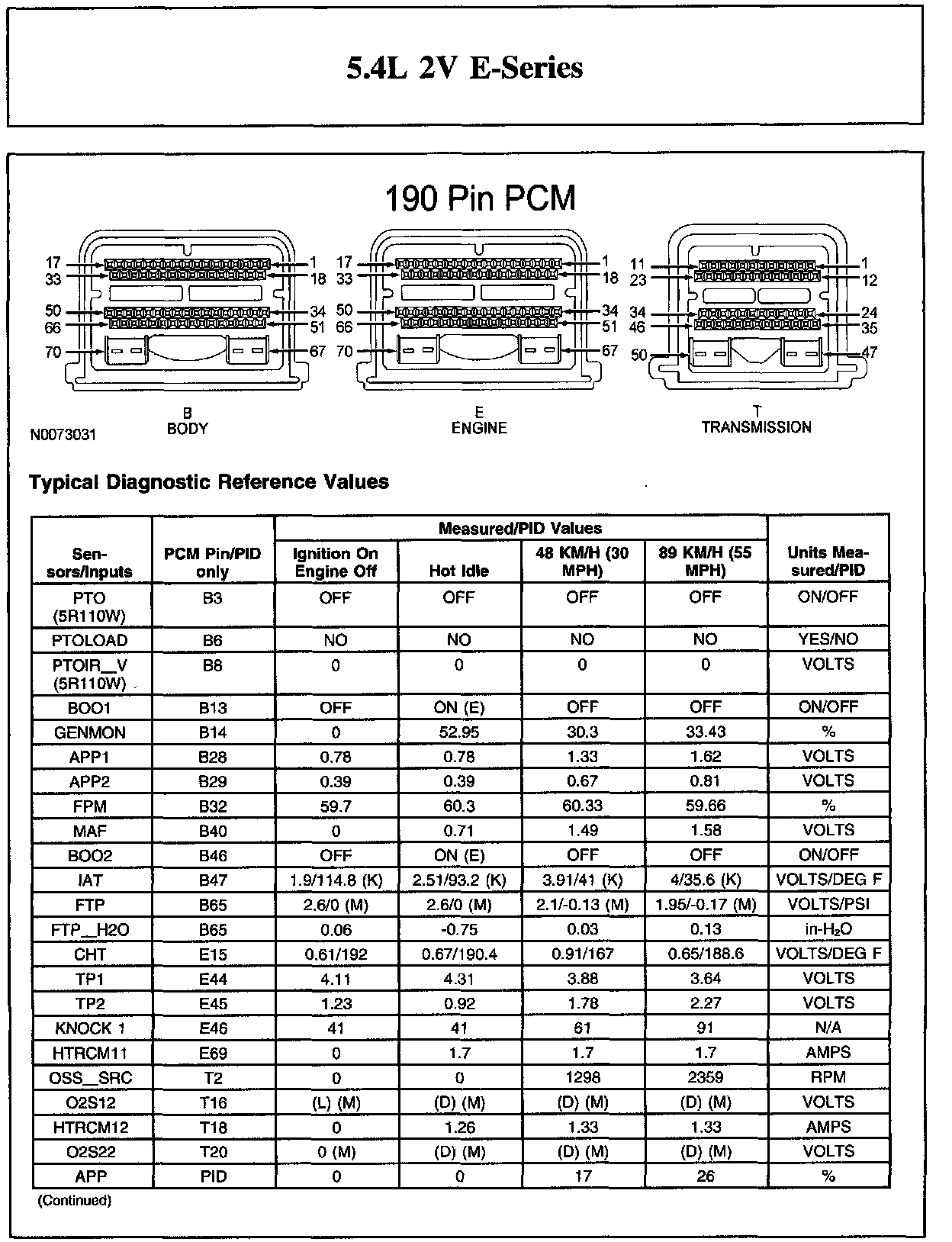

5.4L 2V E-Series (Part 1):

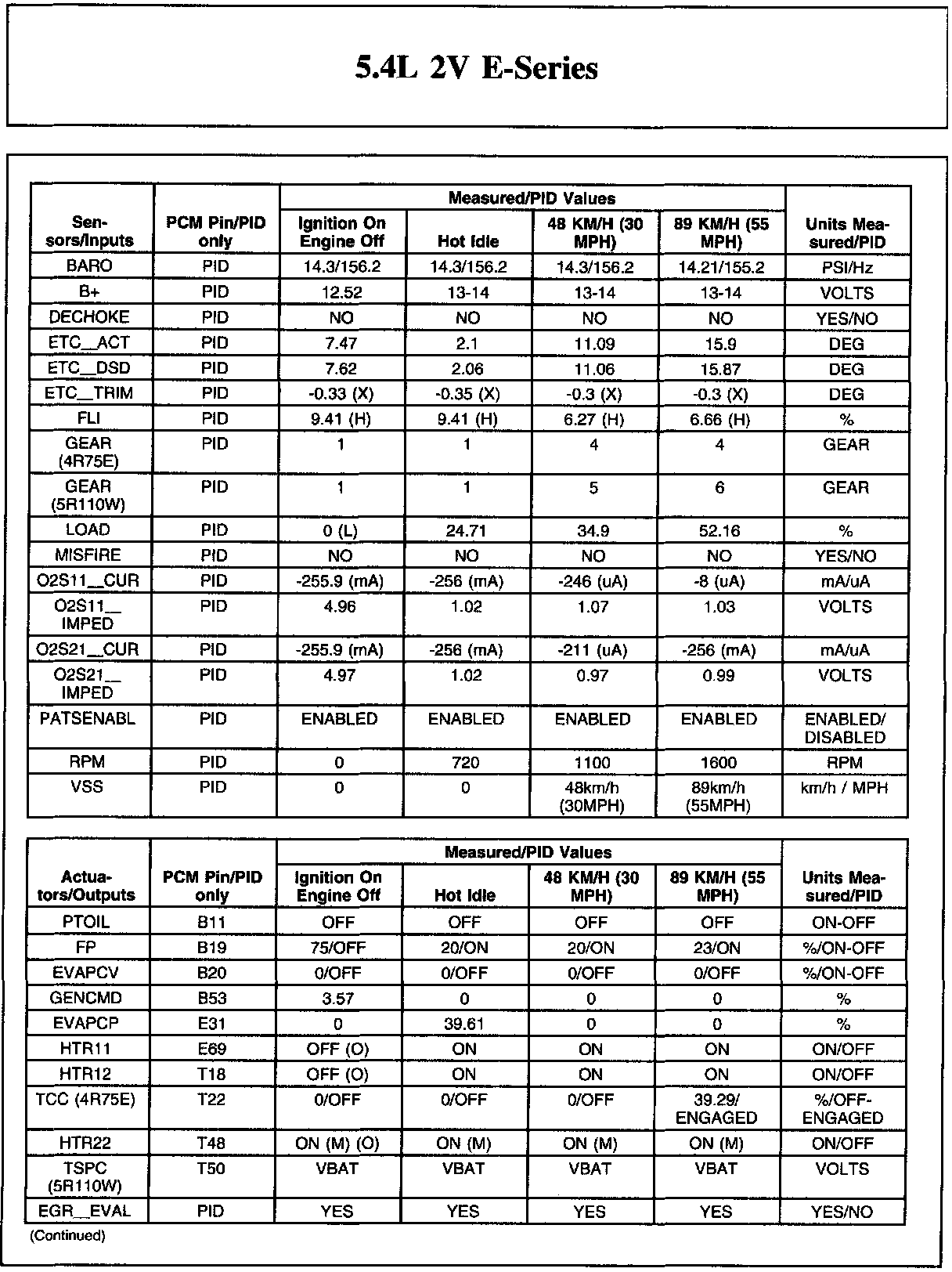

5.4L 2V E-Series (Part 2):

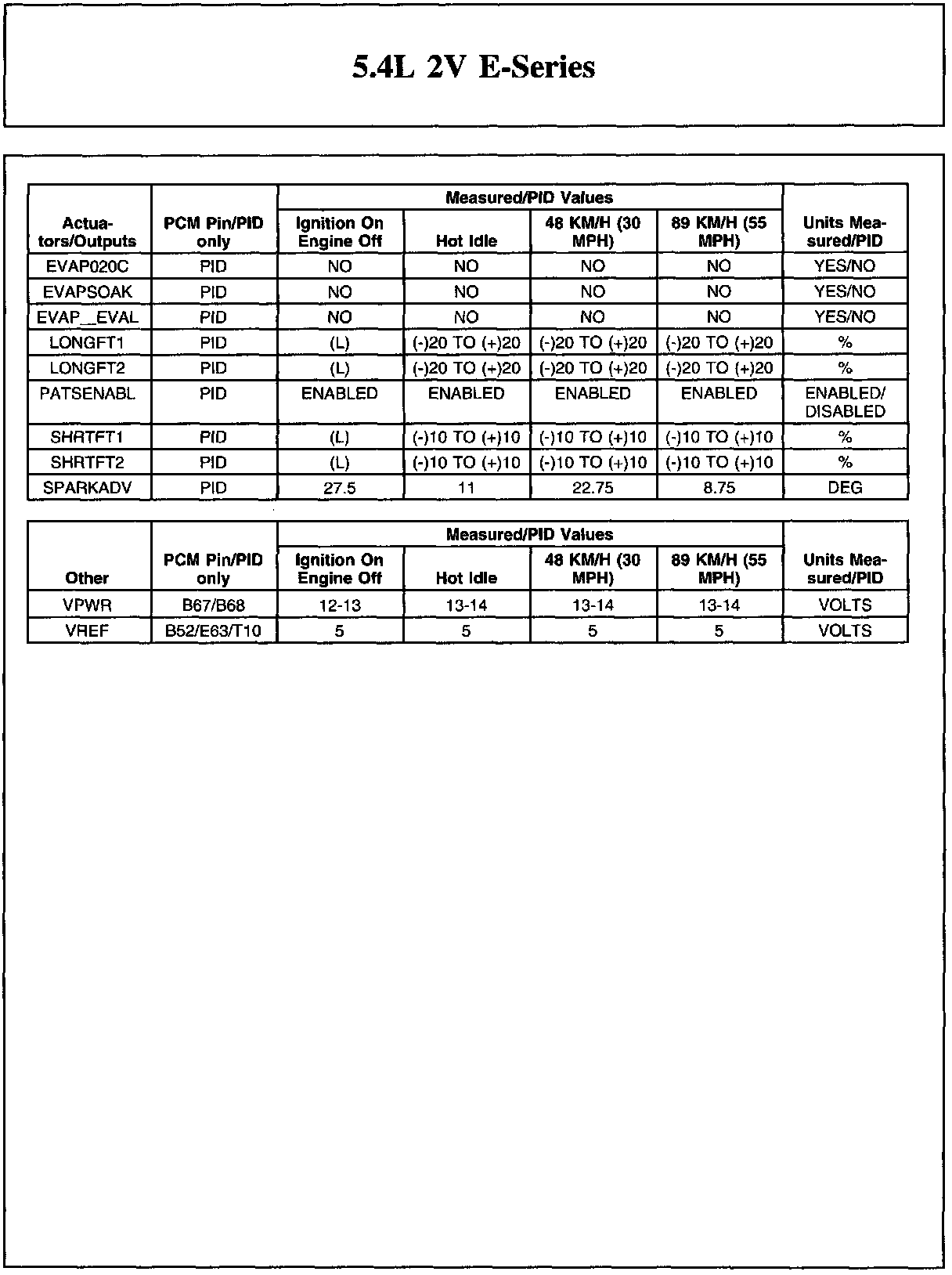

5.4L 2V E-Series (Part 3):
