Windshield Washer Switch: Service and Repair

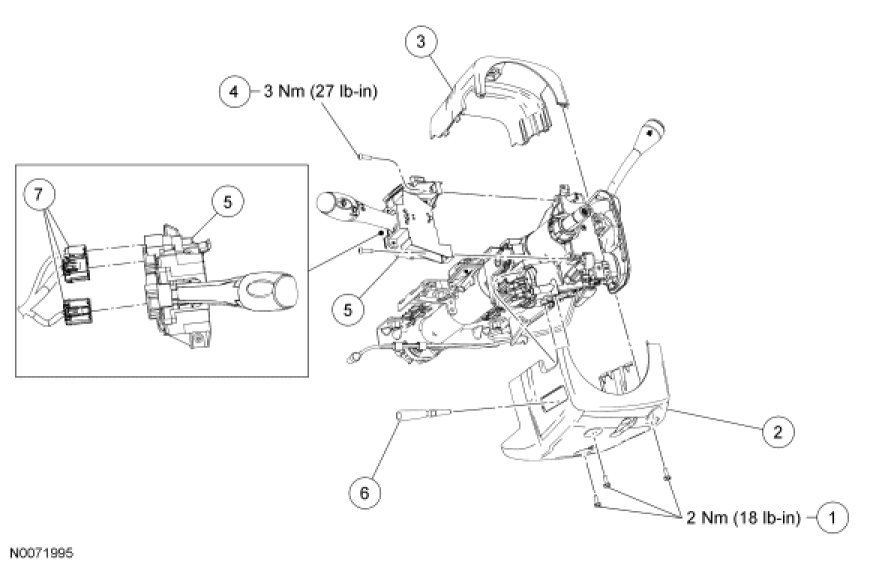

Steering Column Multifunction Switch

NOTE: Steering wheel removed for clarity.










Removal and Installation

1. Remove the steering column tilt release lever/handle.

2. NOTE: Release the upper steering column shroud by pressing the sides inward.

Remove the 3 screws and the upper and lower steering column shrouds.

- To install, tighten to 2 Nm (18 lb-in).

3. Disconnect the 3 multifunction switch electrical connectors.

4. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

5. To install, reverse the removal procedure.
