Scan Tool Testing and Procedures




4R70E/4R75E

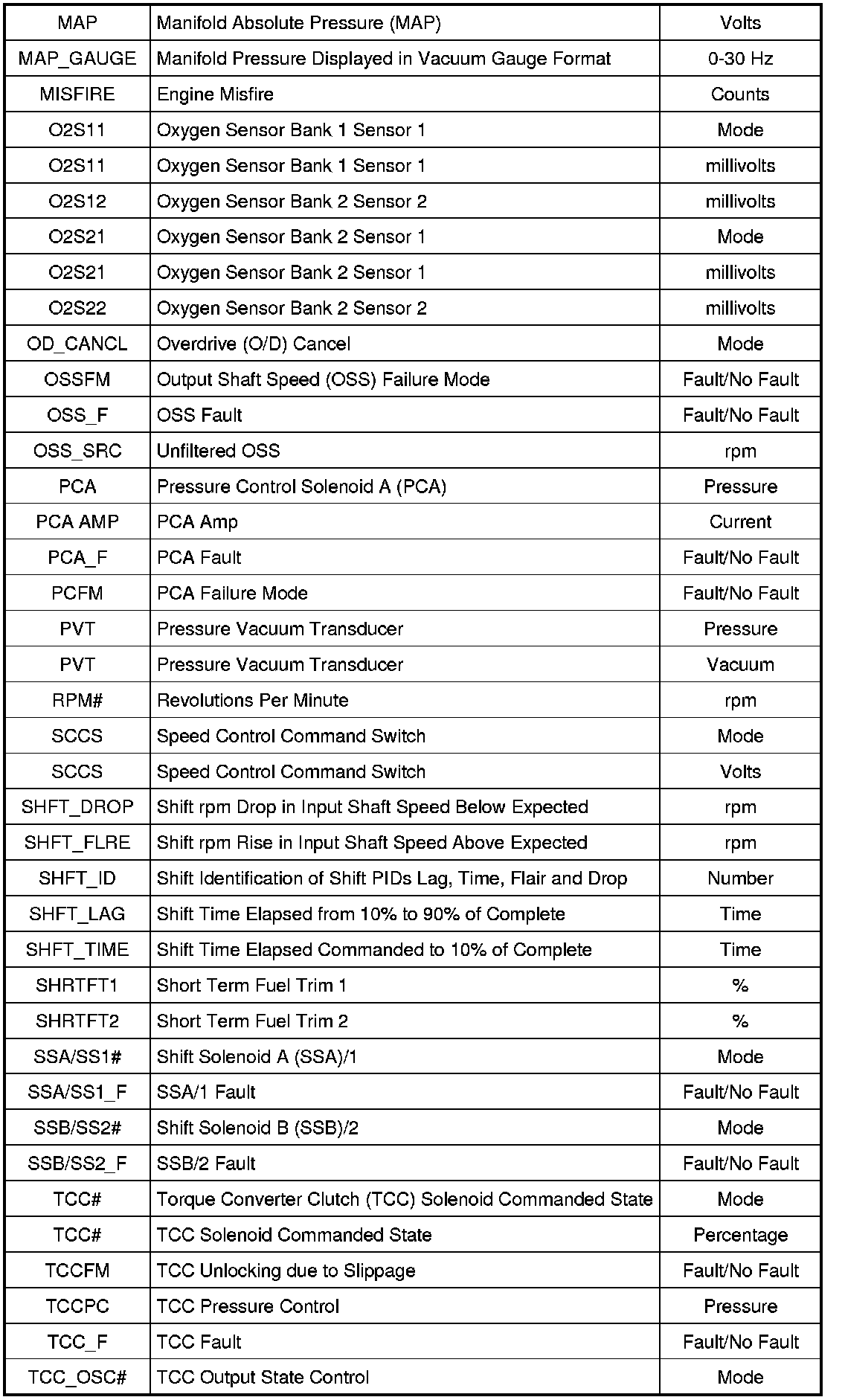

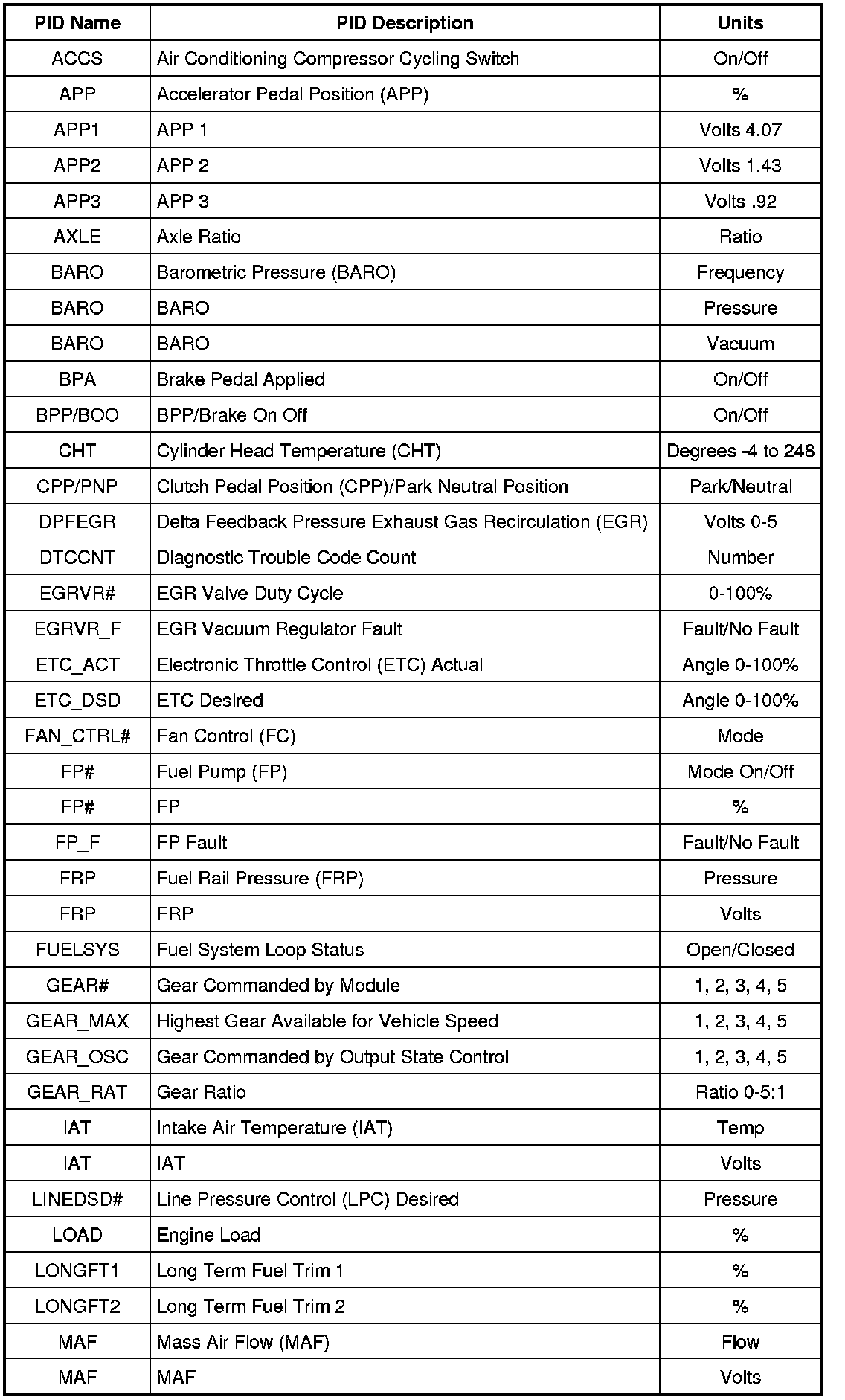

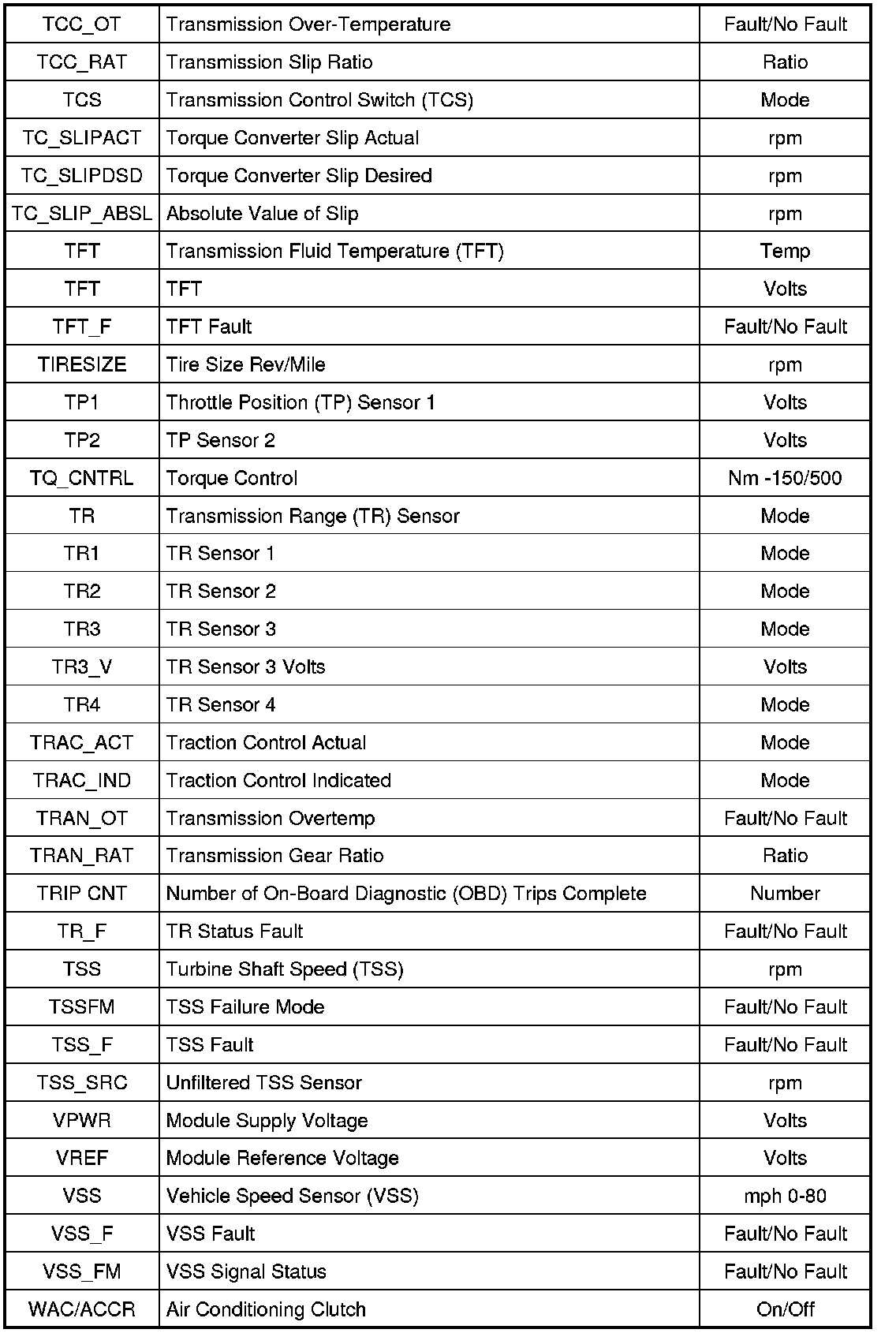

Diagnostic Parameters Identification (PID) Chart






Part 1:





Part 2:





Part 3:
