Ambient Air Temperature Sensor




Ambient Air Temperature Sensor

Removal and Installation

1. Remove the upper radiator sight shield.

2. Disconnect the electrical connector.

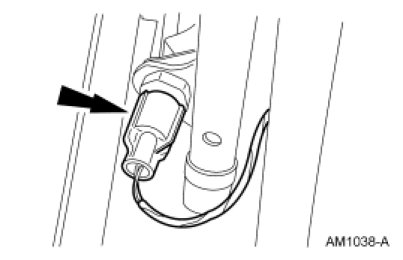

3. Remove the ambient air temperature sensor.





4. To install, reverse the removal procedure.
