Exterior Mirror Cover

EXTERIOR MIRROR COVER

Exploded View







Removal and Installation

NOTE: Sable and Taurus shown, Taurus X similar.

1. Remove the exterior mirror glass.

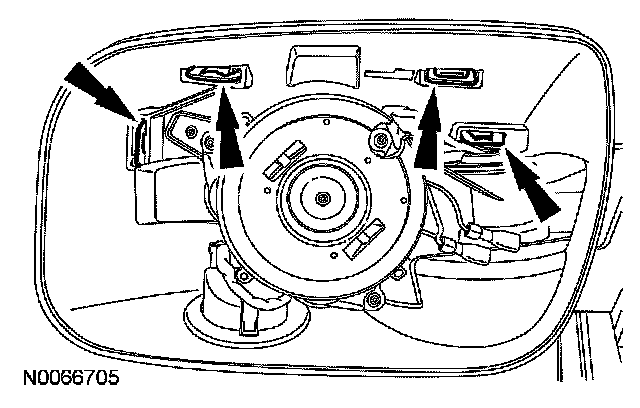

2. Release the 4 exterior mirror cover retaining tabs.

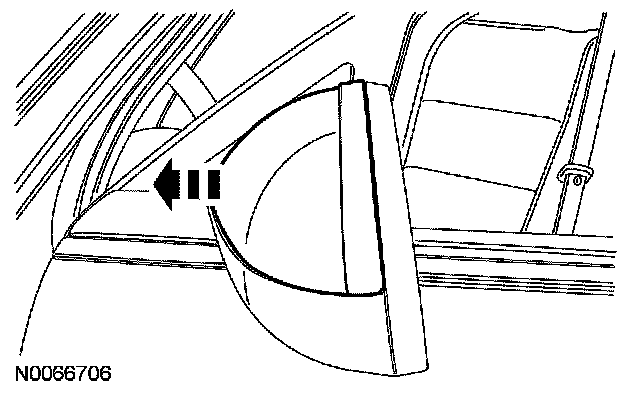

3. Remove the exterior mirror cover
- Pull outward on the exterior mirror cover.







4. To install, reverse the removal procedure.
