Intermediate Shaft Speed Sensor

Intermediate Shaft Speed Sensor

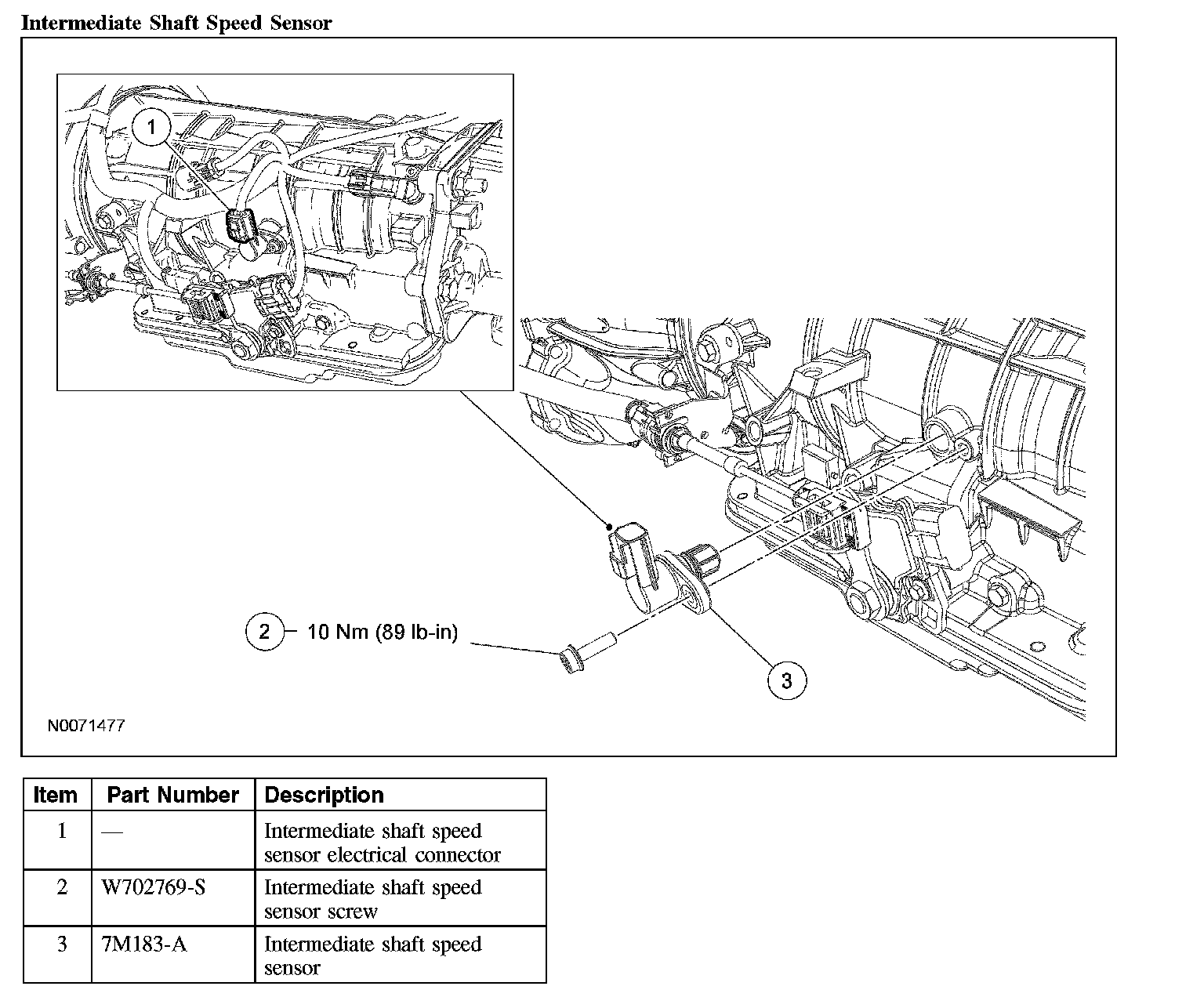

Intermediate Shaft Speed Sensor:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the intermediate shaft speed sensor electrical connector.
3. Remove the intermediate shaft speed sensor screw.
4. Remove the intermediate shaft speed sensor from the transmission.

Installation

1. NOTE: Inspect the intermediate shaft speed sensor O-ring for damage. If damaged, install a new O-ring

Inspect and lubricate the O-ring with petroleum jelly.

Install the intermediate shaft speed sensor into the transmission.

2. Install the intermediate shaft speed sensor screw.
^ Tighten to 10 Nm (89 lb-inch).
3. Connect the intermediate shaft speed sensor electrical connector.
4. Lower the vehicle.
