Test F: The Panic Feature Is Inoperative/Does Not Operate Correctly

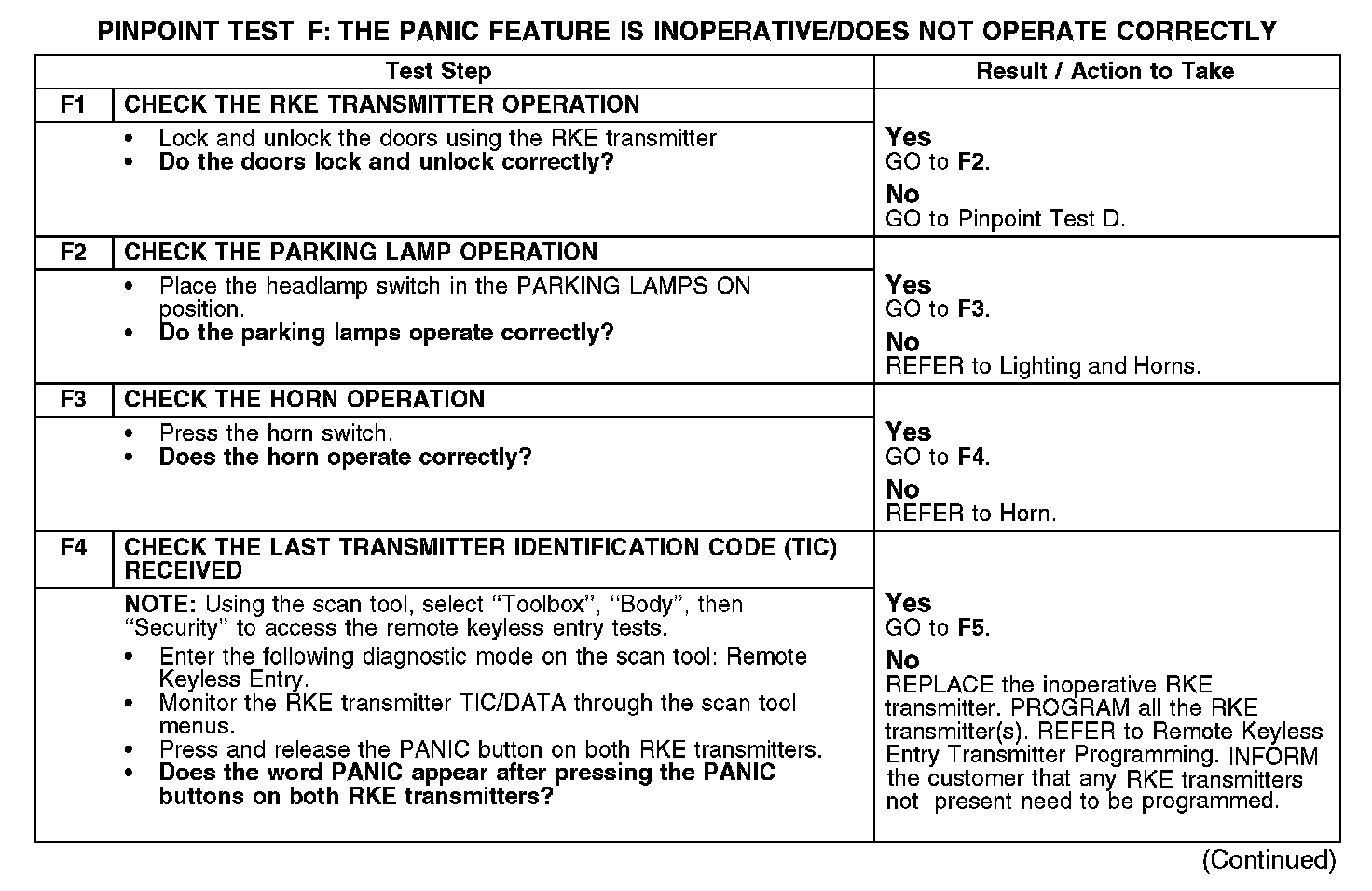

PINPOINT TEST F: THE PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLYNormal Operation
When the remote keyless entry (RKE) transmitter PANIC button is pressed, the smart junction box (SJB) grounds the horn relay which supplies voltage to activate the horn. The SJB also grounds the parking lamp relay which supplies voltage to activate the parking lamps
This pinpoint test is intended to diagnose the following:
- RKE transmitter
- SJB
