Test U: LFC 15/DTC C1414 - Incorrect Module Design Level

PINPOINT TEST U: LFC 15/DTC C1414 - INCORRECT MODULE DESIGN LEVEL

Normal Operation
The restraints control module (RCM) monitors the communication condition and circuits of the occupant classification system module (OCSM) for an embedded vehicle ID. If the RCM detects an unexpected condition or code from the OCSM, it will store DTC C1414 in memory and flash LFC 15 (or higher priority code if one exists) on the air bag warning indicator.

- DTC C1414 Incorrect Module Design Level - If the RCM detects software and hardwired VID combination that does not match at start-up, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Incorrect RCM for vehicle
- Incorrect OCS system for vehicle

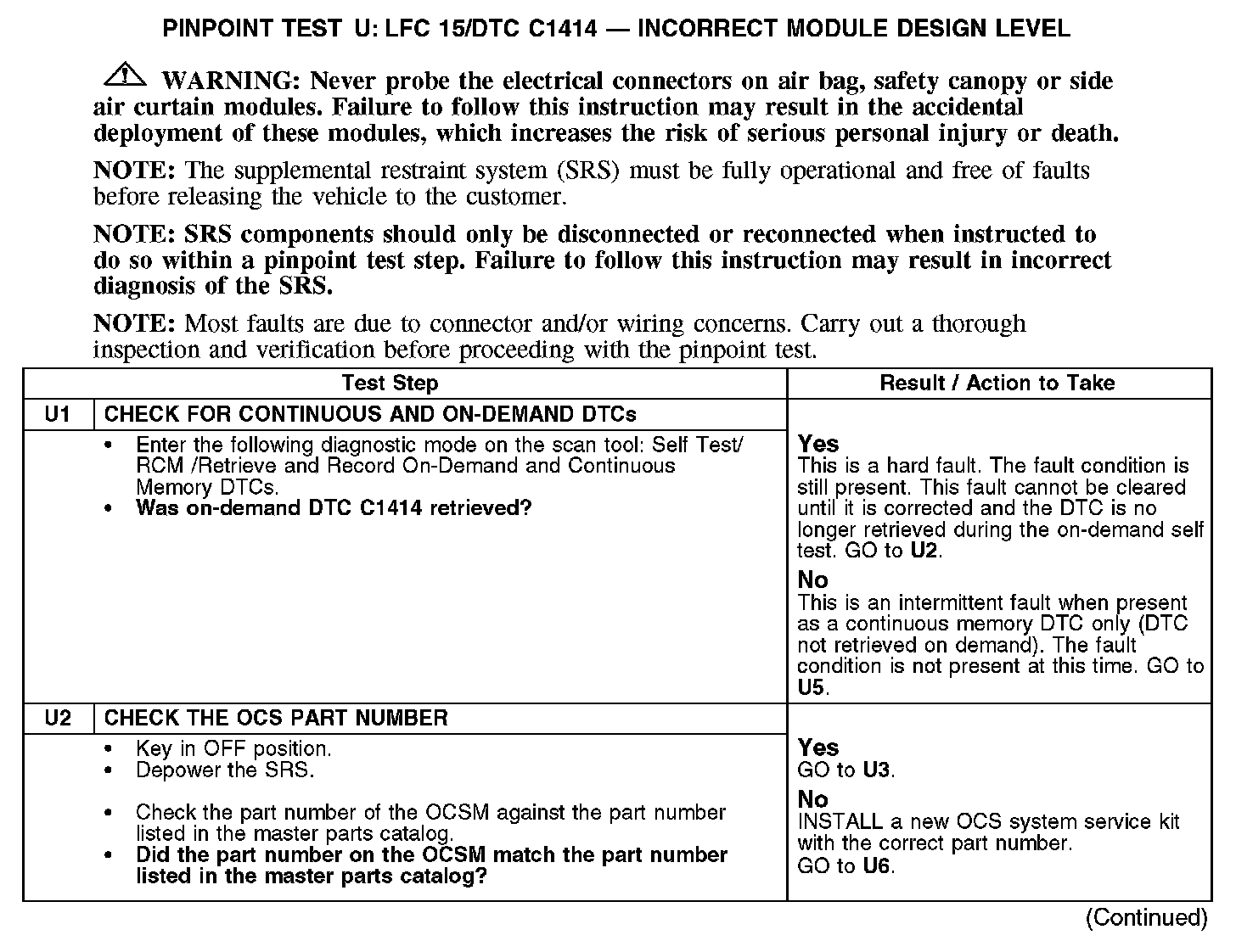

U1-U2:

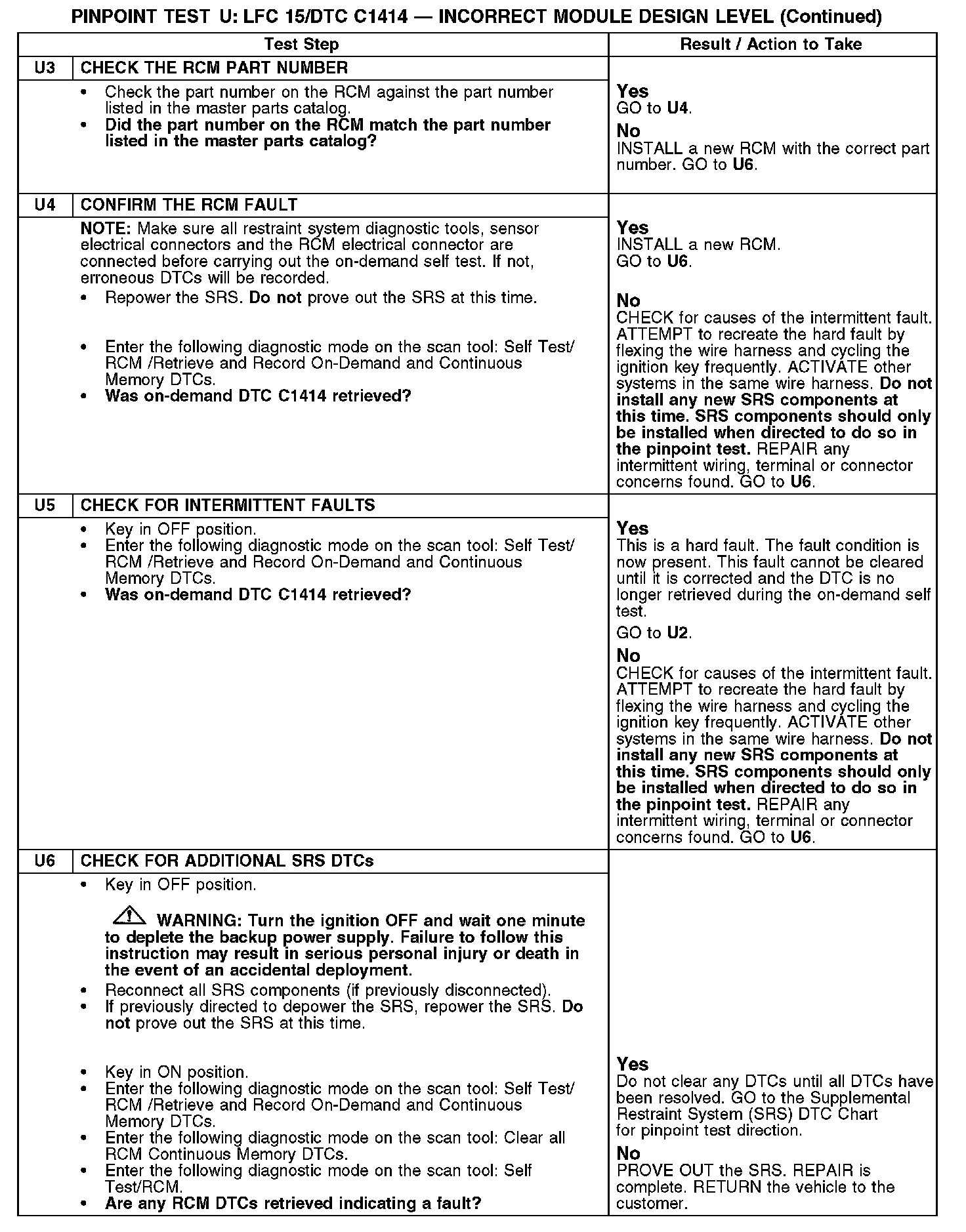

U3-U6:
