Clutch Master Cylinder: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item |
Specification |
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |
Courtesy of FORD MOTOR CO.

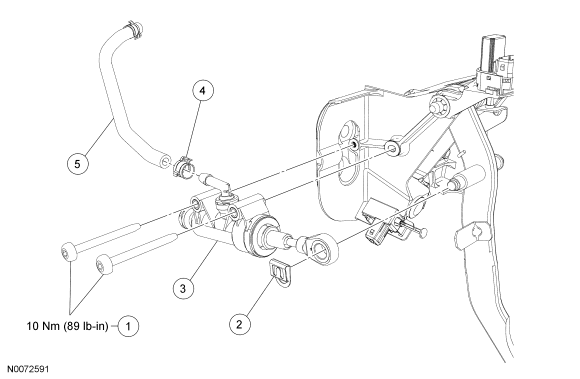

| Item |
Part Number |
Description |
| 1 |
- |
Clutch master cylinder bolts (2 required) |
| 2 |
- |
Retaining clip |
| 3 |
7A543 |
Clutch master cylinder |
| 4 |
- |
Hose clamp |
| 5 |
- |
Reservoir hose |
