Safety Belt Shoulder Height Adjuster: Notes

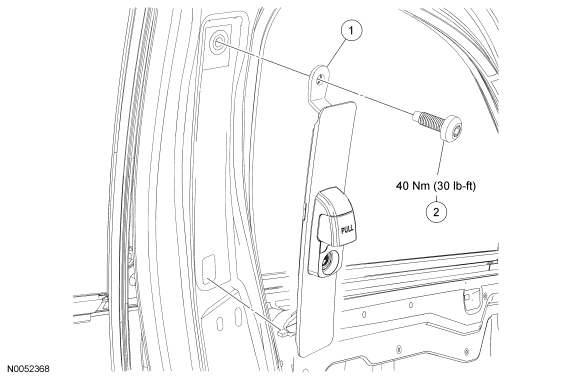

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specification
GF0028559Courtesy of FORD MOTOR CO.
Item Part Number Description
1 602B82 Safety belt shoulder height adjuster
2 - Bolt (part of 602B82)
