Right Front Power Window Motor Connector

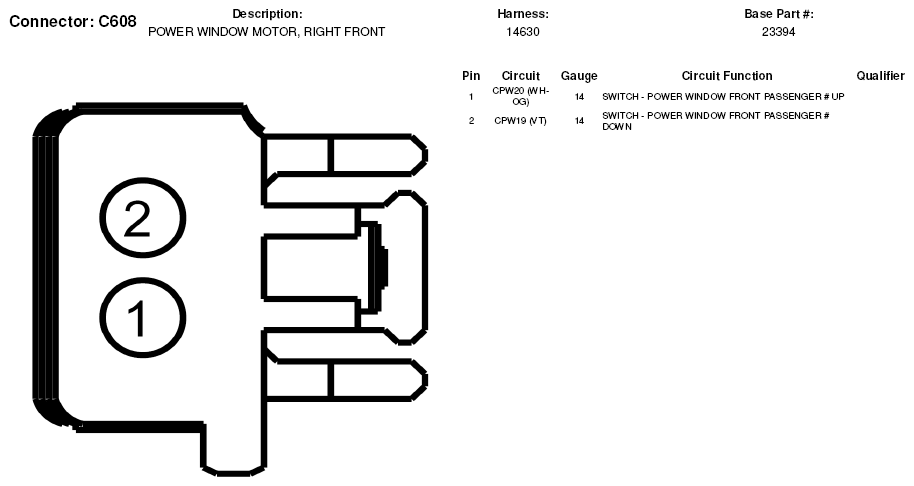

Fig 1: Right Front Power Window Motor Connector End View (C608)
G05602547

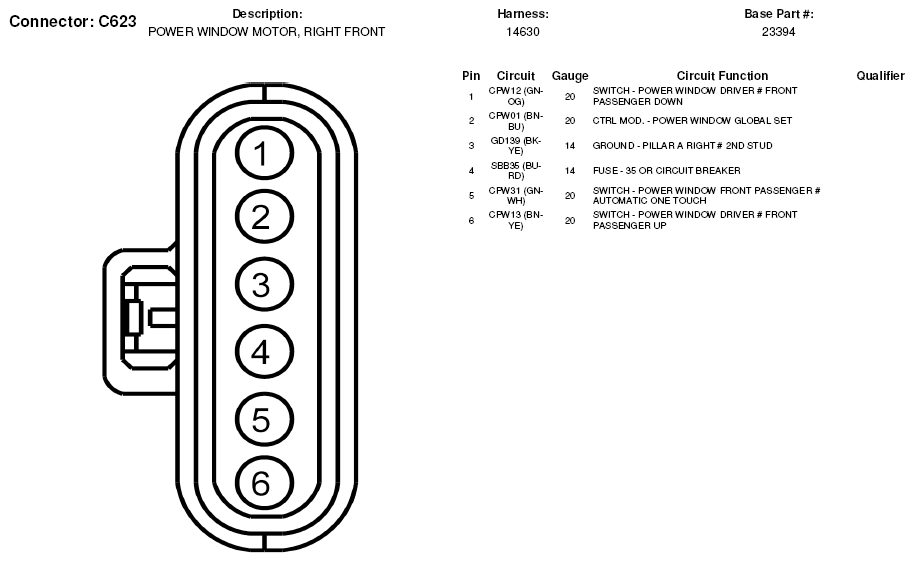

Fig 2: Right Front Power Window Motor Connector End View (C623)
G05602552
