Clutch Pedal: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

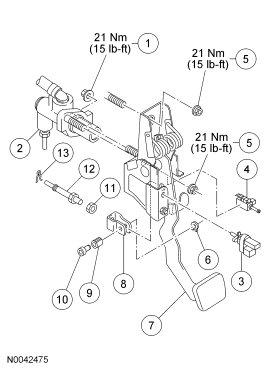

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch master cylinder nut (2 required) |
| 2 | 7A543 | Clutch master cylinder |
| 3 | - | Clutch switch (cruise control cancel) |
| 4 | 11A152 | Clutch pedal position (CPP) switch |
| 5 | - | Clutch pedal bracket nuts |
| 6 | - | Retaining clip |
| 7 | - | Clutch pedal and bracket assembly |
| 8 | - | Master cylinder push rod clevis |
| 9 | - | Clevis bushing |
| 10 | - | Clevis pin |
| 11 | - | Push rod lock nut |
| 12 | - | Master cylinder push rod |
| 13 | - | Retaining clip |
