Smart Junction Box (SJB)



Smart Junction Box (SJB)

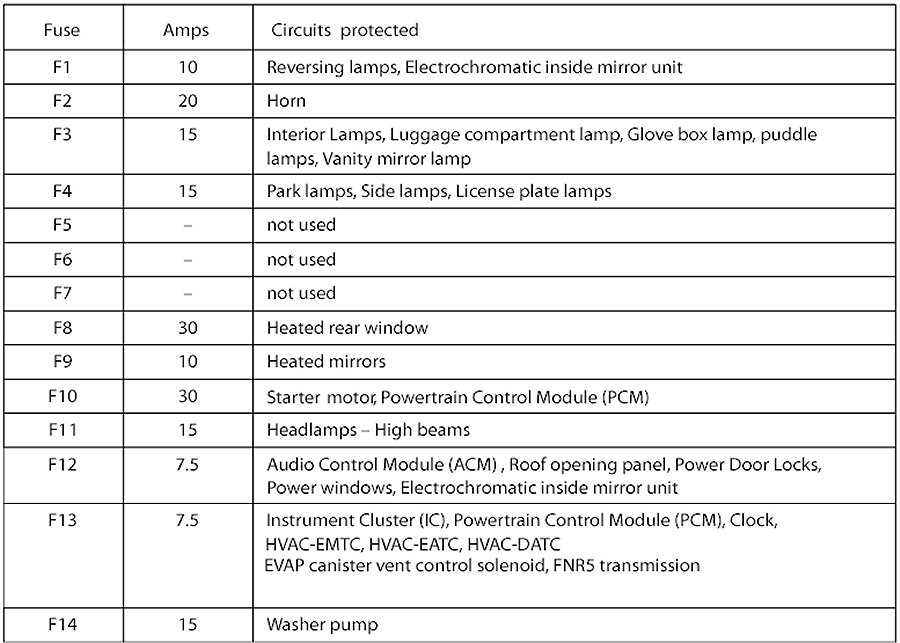

Smart Junction Box (1 Of 4):

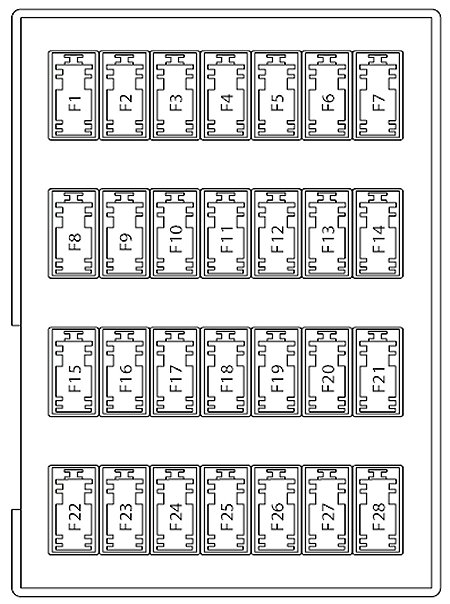

Smart Junction Box (2 Of 5):

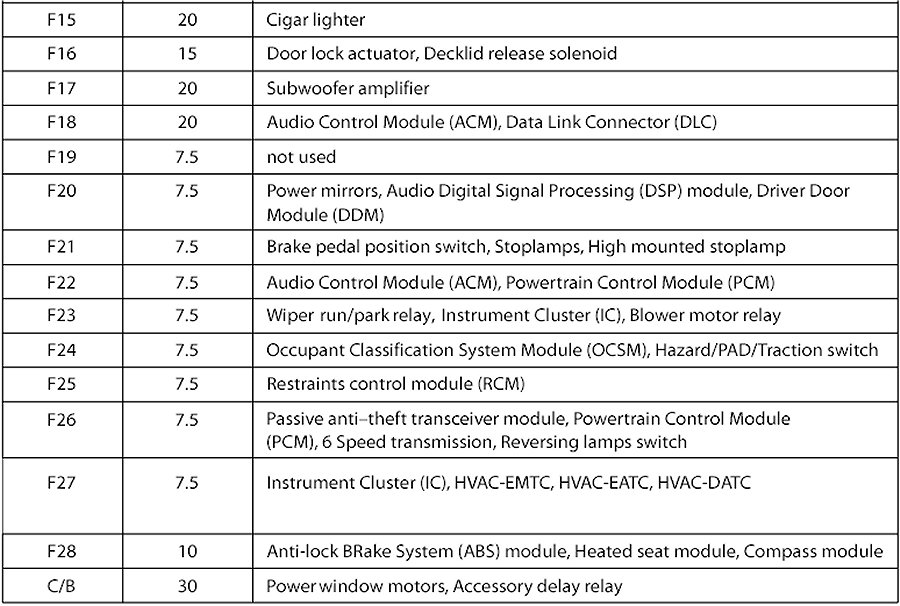

Smart Junction Box (3 Of 4):

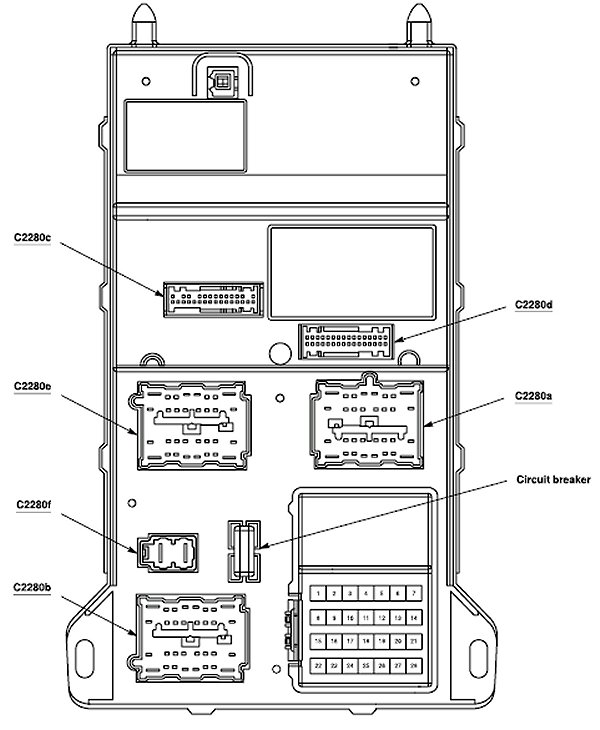

Smart Junction Box (4 Of 4):
