Trunk/Liftgate Sensor/Switch (For Alarm): Service and Repair

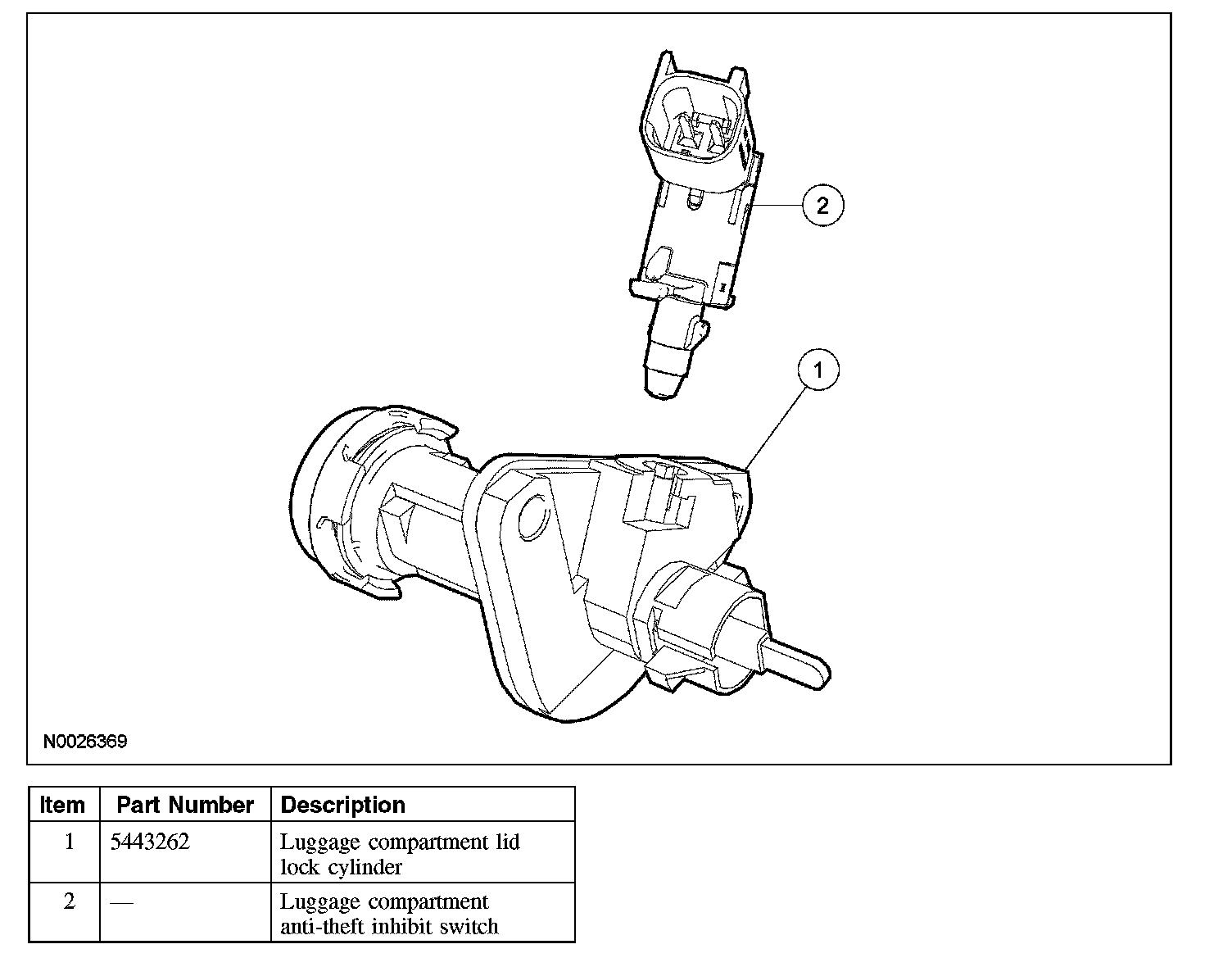

ANTI-THEFT INHIBIT SWITCH - LUGGAGE COMPARTMENT







Removal and Installation
1. Remove the luggage compartment lid lock cylinder.
2. Lift the retaining tabs, turn the switch clockwise and remove the luggage compartment anti-theft inhibit switch.
3. To install, reverse the removal procedure.
