Keyless Entry Key-Pad: Service and Repair

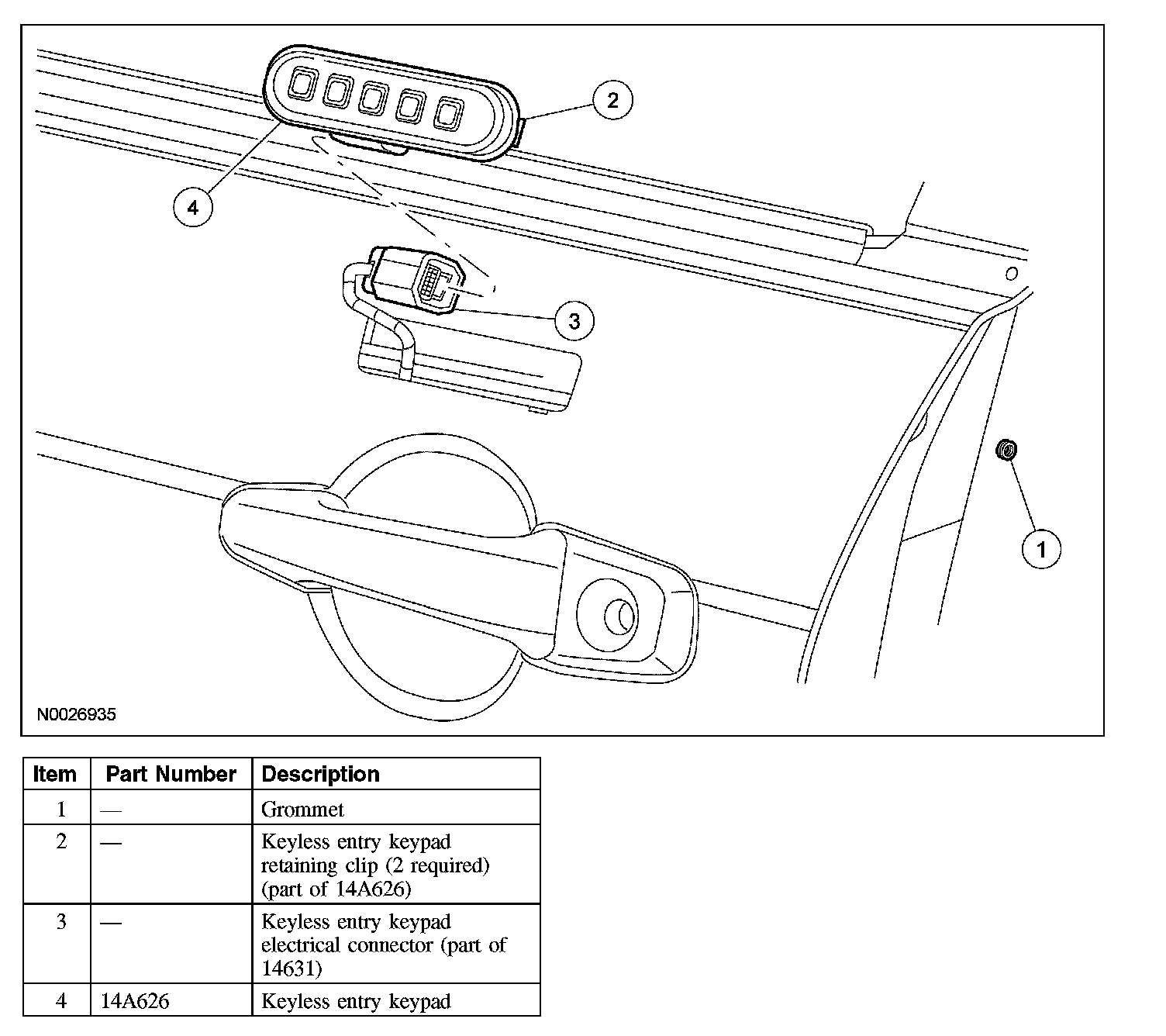

KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the grommet.
2. Using a suitable tool, release the rear keyless entry keypad retaining clip and position the keyless entry keypad aside.
3. Remove the keyless entry keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
