Dimmer Switch: Service and Repair

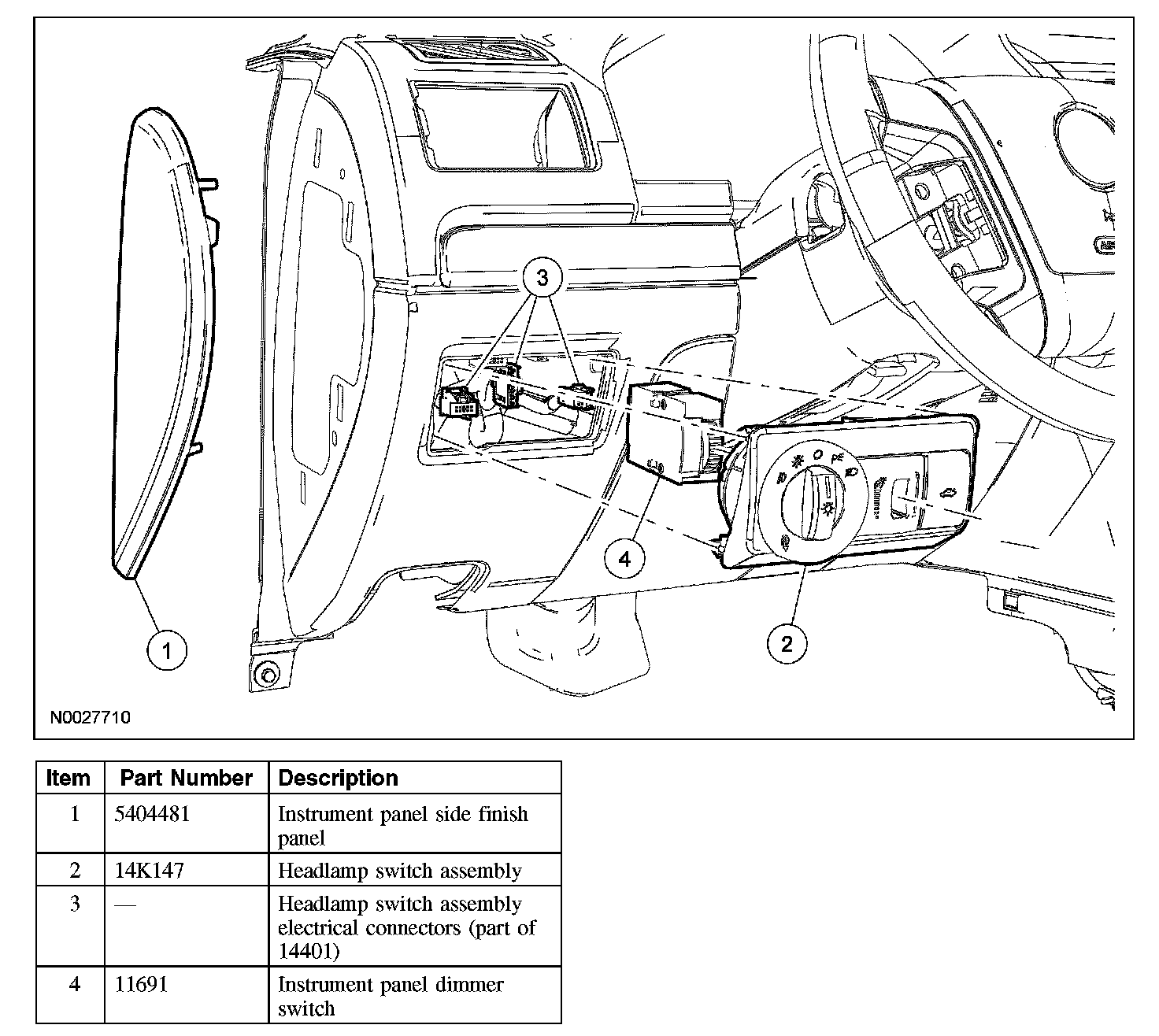

INSTRUMENT PANEL DIMMER SWITCH







Removal and Installation
1. Remove the instrument panel side finish panel.

2. NOTE: The switch is removed by pushing from behind.

Release the tabs and remove the headlamp switch assembly.
- Disconnect the electrical connectors.

3. Release the 4 tabs and remove the instrument panel dimmer switch.







4. To install, reverse the removal procedure.
