Windshield Glass: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Interior Auto Glass Cut-Out Knife Kit (Electric) | 164-R2450 or equivalent | |
| Pneumatic Knife with Offset Blade | 107-R1511 or equivalent | |
| The Pumper | 164-R2459 or equivalent |
Material
| Item | Specification |
|---|---|
| Dow Urethane Adhesive Betaseal® Express |
- |
| Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA |
- |
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

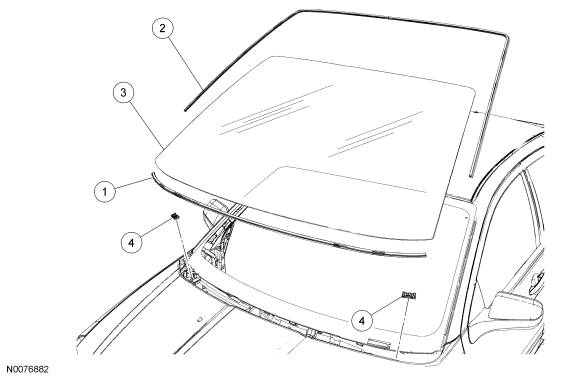

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Windshield glass lower garnish moulding (part of 03100) |
| 2 | - | Windshield glass upper garnish moulding (part of 03100) |
| 3 | 03100 | Windshield glass |
| 4 | 54030A12 | Windshield glass stops (2 required) |
